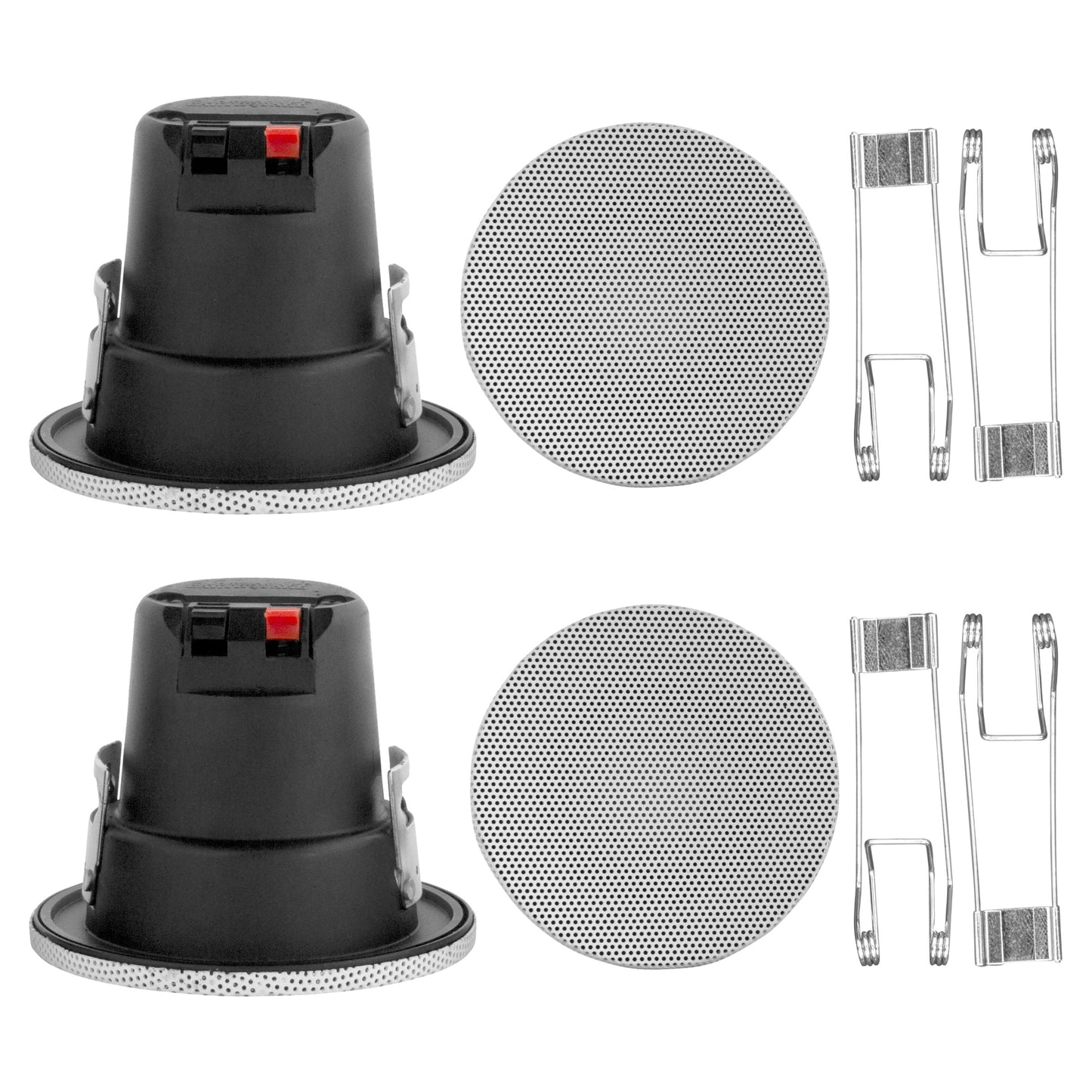

ECS 3.0 In-Ceiling Speaker (PR)
SKU:ECS 3.0
Couldn't load pickup availability
Share
Description
Experience clear, encompassing sound from an architectural speaker that virtually disappears into your ceiling. The Earthquake Sound ECS 3.0 redefines discreet audio with its ultra-compact, 3-inch edgeless design that mimics a recessed spotlight. Perfect for creating immersive background music environments, the ECS 3.0 delivers surprisingly articulate full-range sound without visual distraction. Its remarkably shallow profile, self-enclosed humidity-resistant design, and simple snap-in installation make it the ideal solution for even the most space-constrained locations, bringing quality audio where you never thought possible.
Further enhancing its modern appeal, despite its diminutive size, is its compatibility with Dolby Atmos® immersive audio formats. The speaker’s unique features align perfectly with the demands of Atmos overhead channels. Its compact size and discreet ceiling-mount design make it a particularly ideal choice since height channel content rarely requires deep bass. The 150Hz low-frequency cutoff is not a drawback for creating atmospheric effects, unlike what you’d find with main speakers. This compatibility makes the ECS 3.0 a viable component for delivering an immersive experience in modern home theater configurations.
Specifications
- Power Handling: 45 Watts MAX
- Frequency Response: 150Hz–20kHz
- Impedance (Ohms): 8
- Sensitivity: 85dB @ 1W/1M
- Voice Coil Diameter: 1″ (25.2mm)
- Overall Diameter: 3.19″ (81mm)
- Cutout Diameter: 2.56″ (65mm)
- Mounting Depth: 2.31″ (58.8mm)
