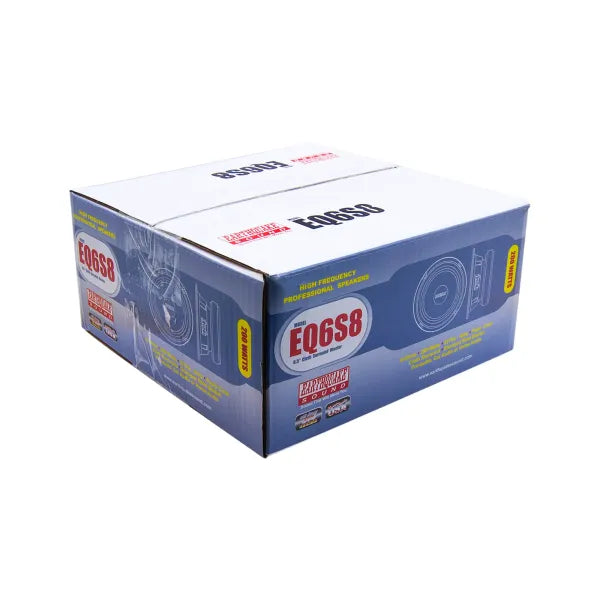

EQ6S8 (PAIR) Cloth Surround Speaker

PR-EQ6S8

$99.99
$99.99 $179.99
Sale Sold out
Shipping calculated at checkout.
In stock

Description

The Earthquake EQ6S8 Cloth Surround Speaker is part of the EQ line of maximum musical output drivers. These drivers were specifically designed to provide smooth, low distortion midrange/midbass output for the highest-quality sound reinforcement applications. Because of their relatively high resonance and very low Qts value, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free resonance.

The EQ6S8 driver is fitted with a sealed back basket that acts like a protective barrier to eliminate interference from other components that may be loaded into the same enclosure. This feature allows the speaker to maintain its integrity and performance, resulting in high-fidelity sound preservation and reduced distortion.

  • 6.5 in. (165 mm) sealed back midrange/midbass driver offers maximum musical output and efficiency
  • Perfect for high SPL car audio configurations and concert-level sound systems
  • Sealed back design provides a physical barrier to protect from other driver interaction
  • Broad 377Hz–5kHz frequency range for ultimate flexibility
  • Edge-wound aluminum bobbin voice coil with Kapton® polyimide former
  • Long-lasting damped paper cone for reduced break-up and flat response
  • Produces natural tones at high levels with low distortion
  • High sensitivity for maximum output with minimal power
  • Solid composition paper dust cap
  • Heavy-duty ferrite magnet with extended core
  • Multi-roll cloth accordion surround
  • Black stamped steel basket
  • Power Rating: 200W Max
  • Frequency Response: 377Hz–5kHz
  • Voice Coil Diameter: 1.20″ (30.5 mm)
  • Impedance (ohms): 8
  • Sensitivity: 93dB
  • Resonance: 377Hz

Parameters

  • Resonant Frequency (fo): 377.331Hz
  • DC resistance (Re): 6.5 ohms
  • Coil Inductance (Le): 278.353 mH @ 1kHz
  • Mechanical Q (Qms): 4.122
  • Electromagnetic Q (Qes): 1.720
  • Total Q (Qts): 1.214
  • Compliance Equivalent Volume (Vas): 0.4248 L / 0.015 cu. ft.
  • Mechanical Compliance of Suspension (Cms): 16.905 mm/N
  • BL Product (BL): 9.711 T-M
  • Diaphragm Mass (Mmd): 9.624 grams
  • Maximum Linear Excursion (Xmax): 2 mm
  • Surface Area of Cone (Sd): 134.782 sqM

Dimensions

  • Overall Diameter: 6.67 in. (169.5 mm)
  • Cut Out Diameter: 5.59 in. (142 mm)
  • Mounting Holes Diameter: 0.27 in. (7.0 mm) x 0.21 in. (5.5 mm)
  • Mounting Depth: 2.82 in. (71.7 mm)
