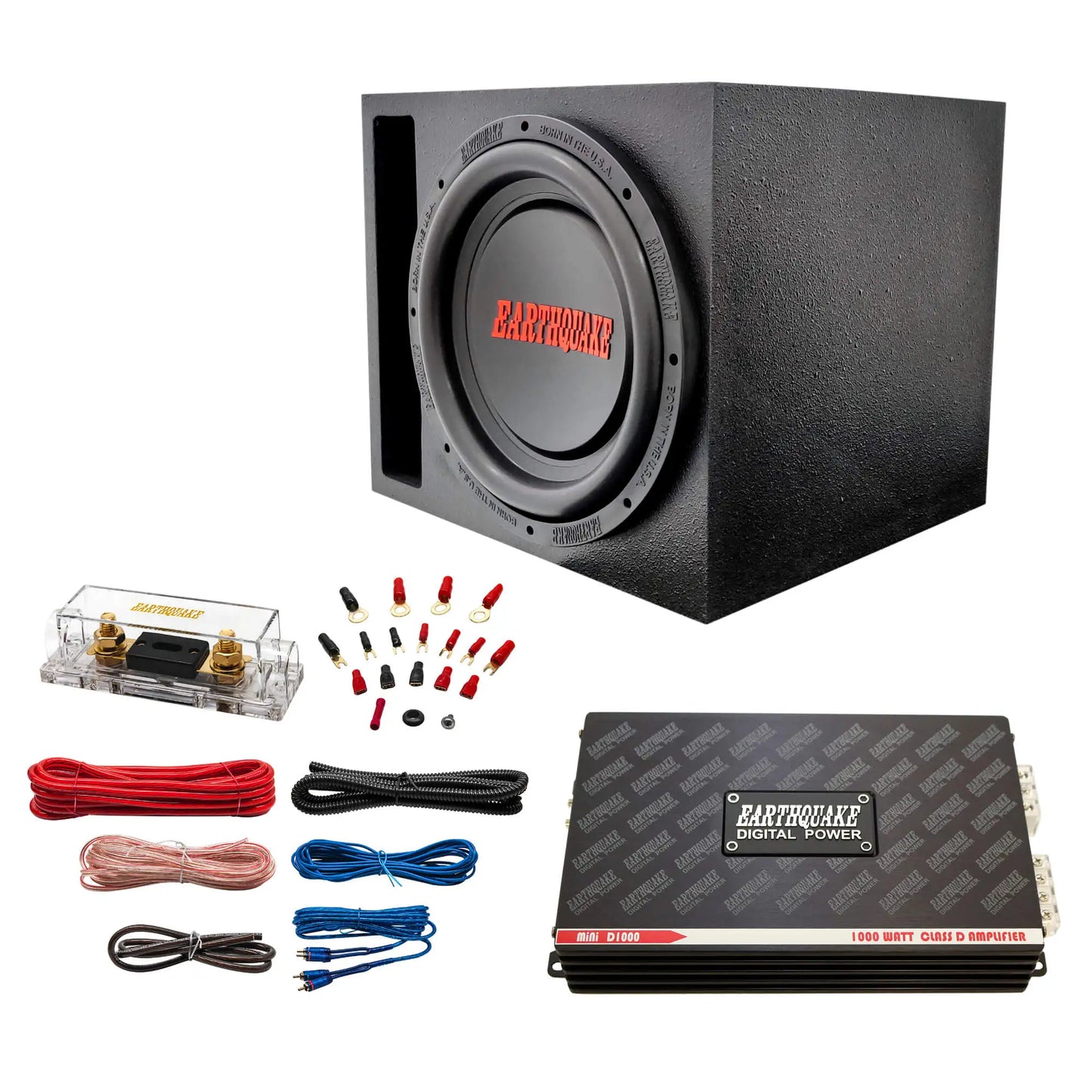

RB1-TX10-BB Subwoofer + Enclosure + Amp and Kit Bundle

RB1-TX10-BB

$424.99
$424.99 $499.99
Sale Sold out
Shipping calculated at checkout.
Low stock remaining, order soon

Description

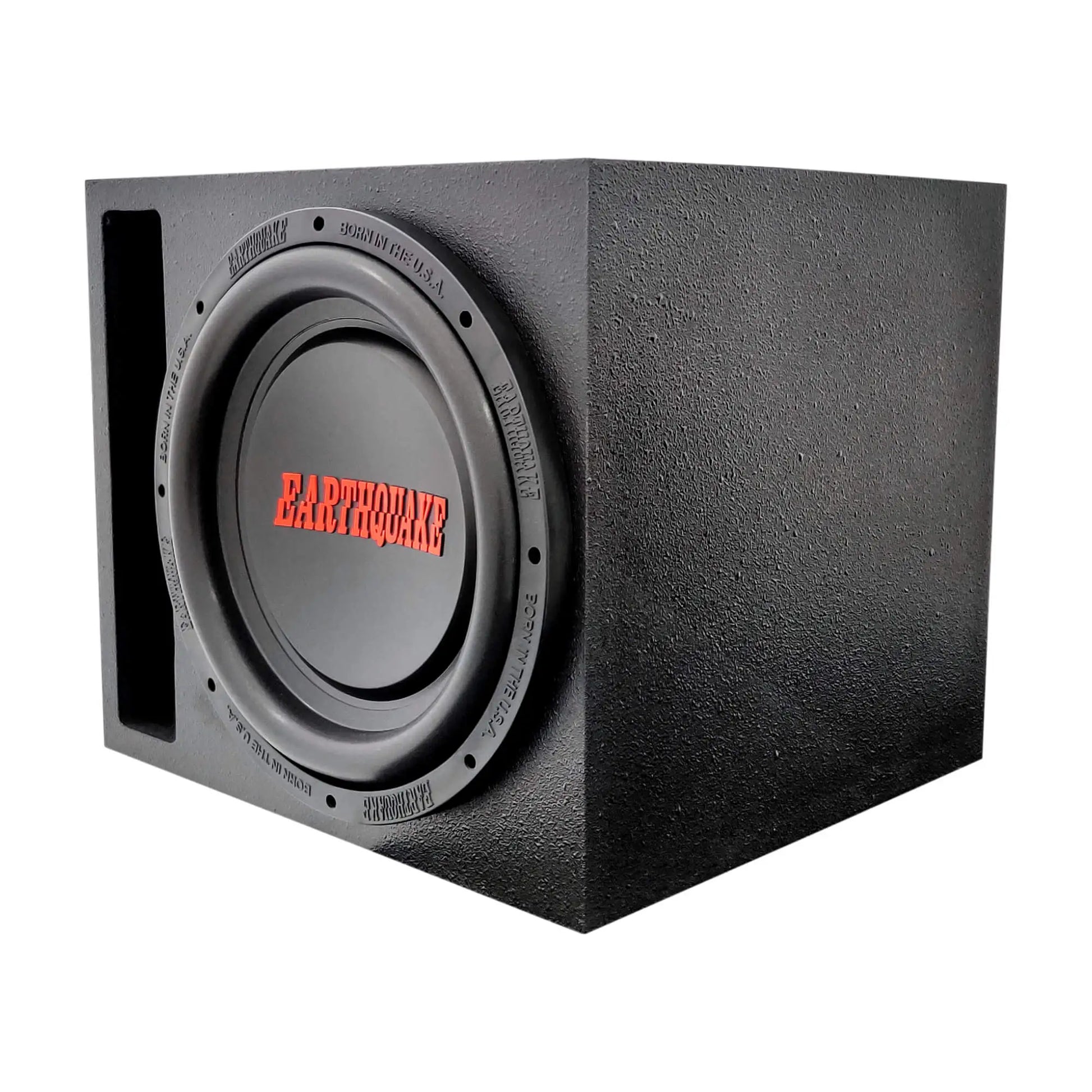

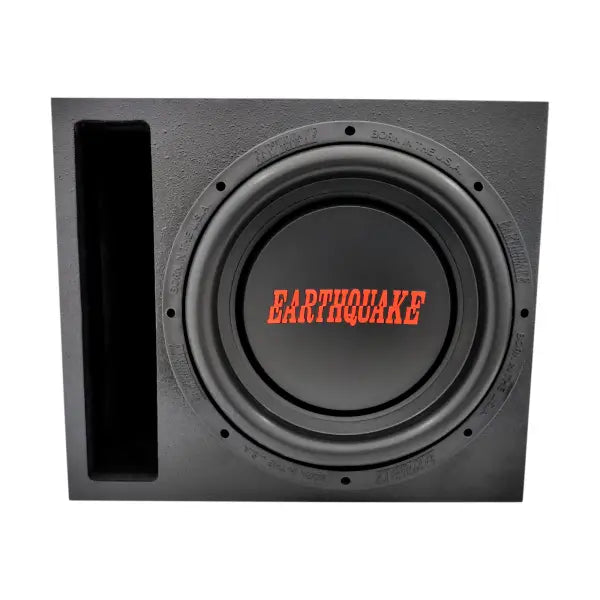

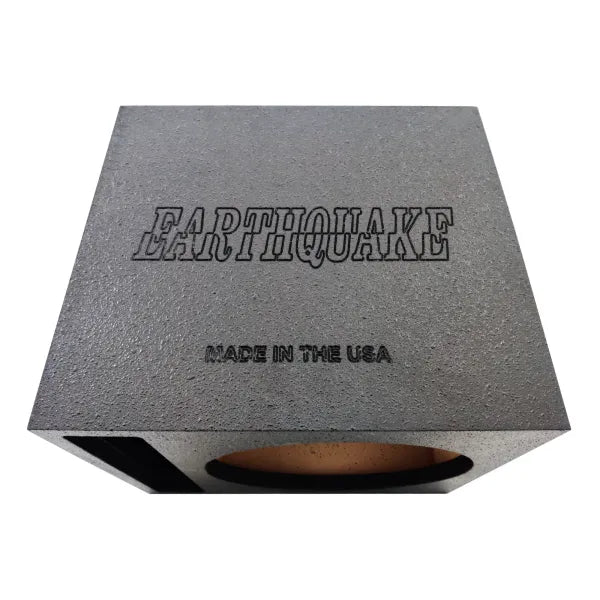

RB1-TX10 Vented Enclosure

  • Constructed from 3/4ʺ particle board with all joints securely glued and fastened.
  • Precision cut and grooved with in-house CNC machining to ensure quality and control.
  • Vented port for extended low frequency response and maximum output.
  • Black spray-on polyurethane bed liner material is applied to all enclosures for durability and chipping resistance.
  • Rectangular-shaped enclosure design.

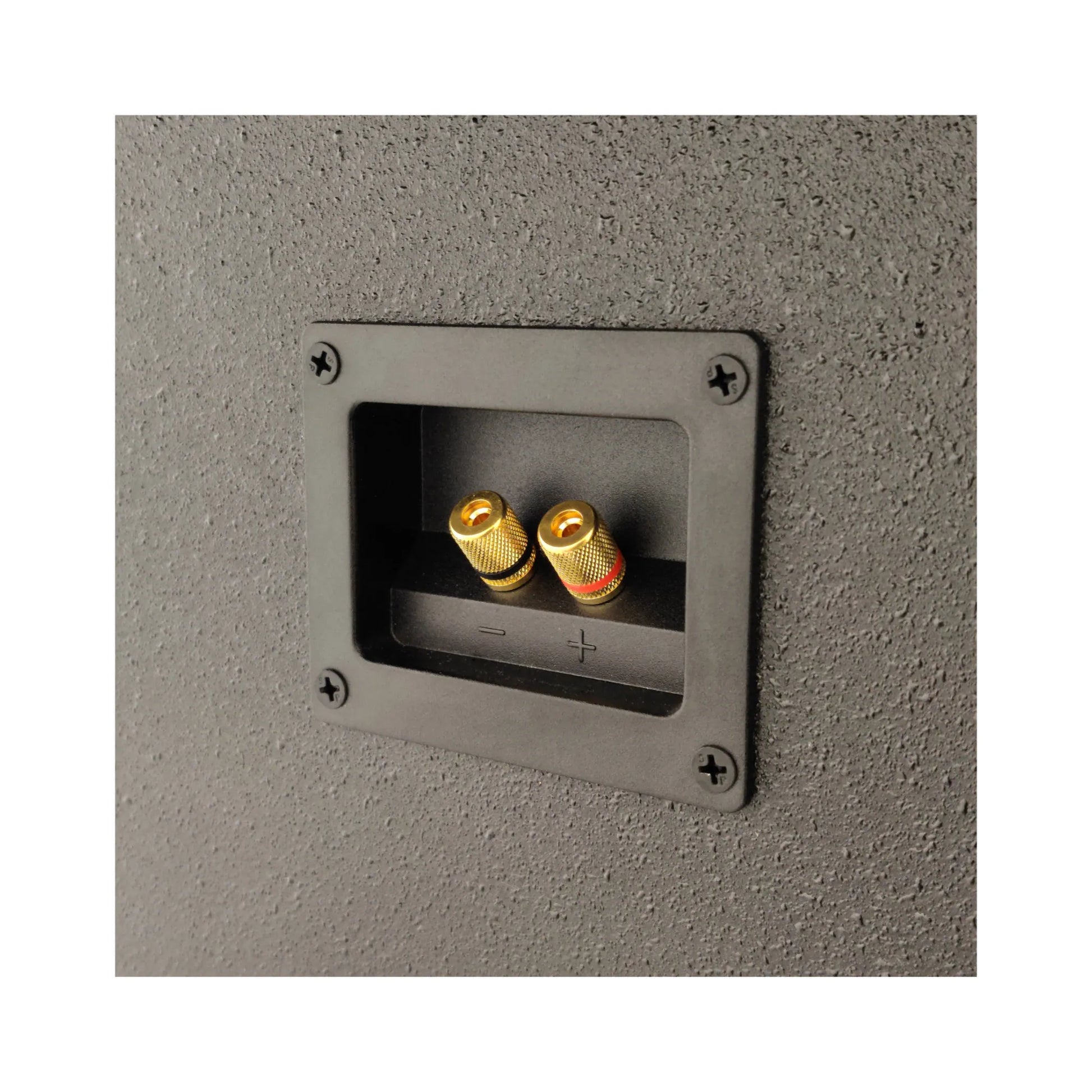

  • Pre-installed gold-plated wire terminals are included.

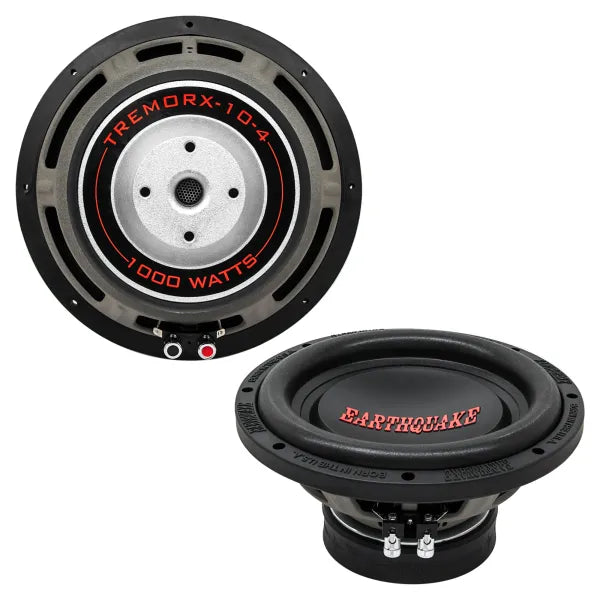

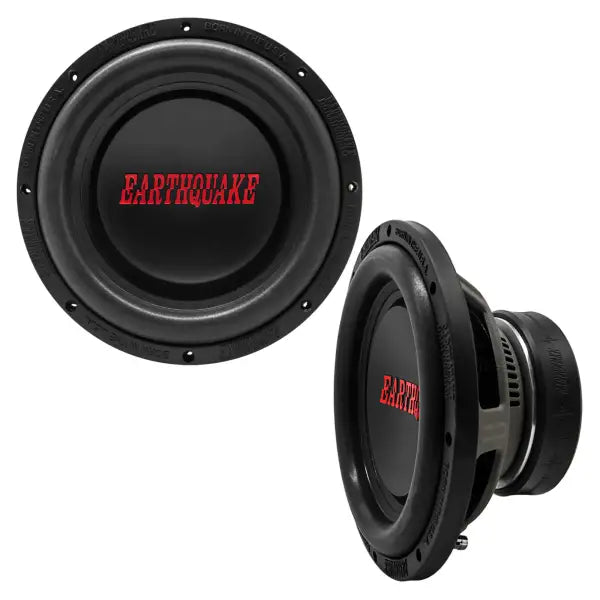

TremorX-104 Features

  • Heavy-duty stitched leads
  • Spring loaded terminals
  • Anti-wobble cone construction
  • TCT Technology (Turbine Cooled Transducer) for high-efficiency output
  • XLT chassis geometry allows for extra length between the spider and the magnetic gap
  • Wide edge suspension for significant excursion without deformation or increased mechanical resistance
  • Military-grade single voice coil

Specifications

  • 10 in. Subwoofer
  • Power Handling:
    • 300W RMS, 1000W Max
  • Impedance: 4-Ohm
  • Efficiency (lW/lM):  86.4345 dB
  • One-way linear excursion: 1 in. / 25.4 mm

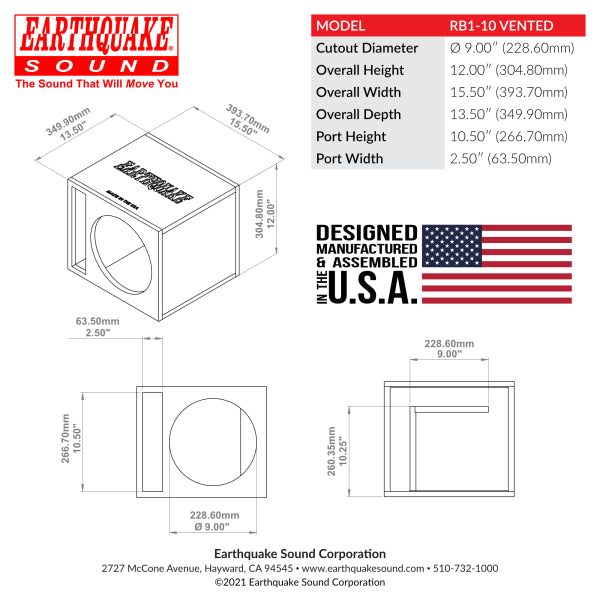

Dimensions

  • HxWxD: 12.00 in. (304.80 mm) x 15.50 in. (393.70 mm) x 13.50 in. (349.90 mm)
  • Cutout Diameter: Ø 9.00 in. (228.60 mm)
  • Port Inlet H x W: 10.50 in. (266.70 mm) x 2.50 in. (63.50 mm)

Parameters

  • Free Air Resonance (Fo): 30.9749 Hz
  • Electrical “Q” (Qes): 0.372
  • Mechanical “Q” (Qms): 5.1194
  • Total Speaker “Q” (Qts): 0.3468
  • Effective Piston Area (Sd): 0.0289 m2
  • Revc=Ohm: 3.5
  • Mmd=g: 101.3326
  • Mms=g: 104.156
  • Cms=uM/N: 177.886
  • Vas=ft3: 0.7493971 ft3
  • BL=T·M: 15.0886
  • No=%: 0.2764564

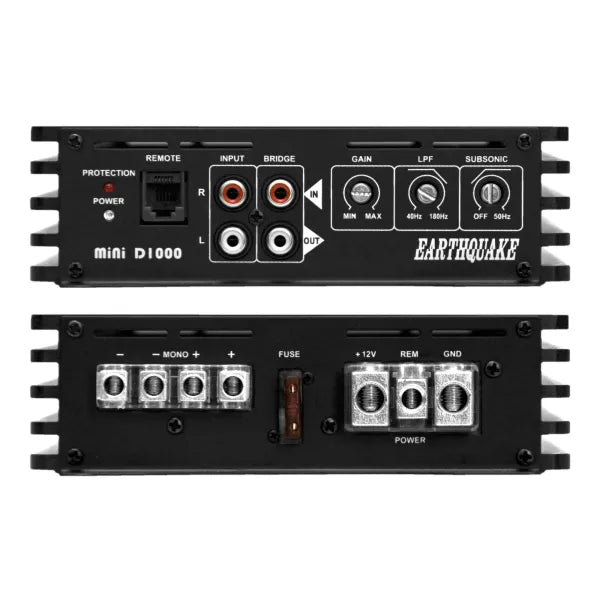

MiNi D1000 2nd Gen Features

  • Clip suppression technology to avoid hard clipping so the sound will not get harsh in the event of excessive input.
  • Bridge In/Out feature allows two MiNi D amplifiers (of the same model) to be linked together for triple the output of a single unit.
  • Fan-free operation with stellar efficiency negates the need for noisy fans even when driven continuously 2db into clip.
  • 5.2V USB connector to power a Bluetooth™ or WiFi module
  • Power and Protection LED
  • Variable Subsonic Filter
  • Gain Level Control
  • Remote Gain Level Control

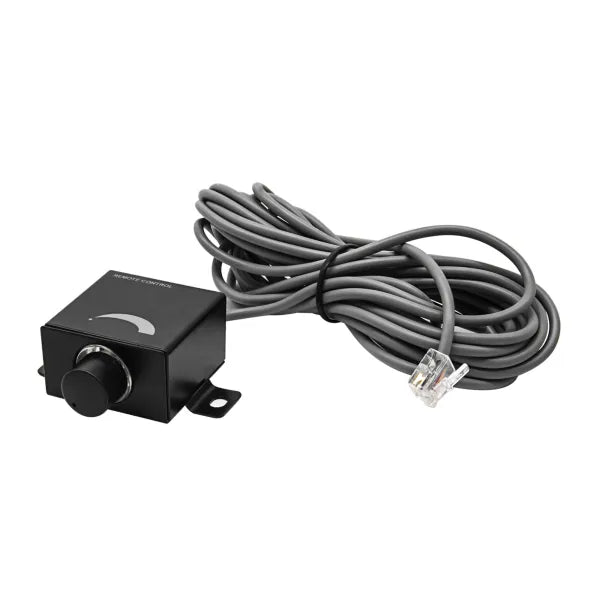

  • Remote base knob and cable (over 20ft) included.

Specifications

  • Channels: 1 (MONO)
  • Class: Digital Class D
  • Max Power: 1200W
  • RMS Power:
    • 600 Watts @ 1-Ohm
    • 360 Watts @ 2-Ohm
    • 180 Watts @ 4-Ohm
  • Gain Level Control: 0.2V–5V RMS
  • Low Pass Filter: 40Hz–180Hz
  • Subsonic Filter: OFF–50Hz
  • Frequency Adjustment: 30Hz–80Hz
  • Bass Boost: 0–12dB

Dimensions

  • Dimensions (H x W x D): 1.92 in. (49 mm) x 6.29 in. (160 mm) x 9.84 in. (250 mm)

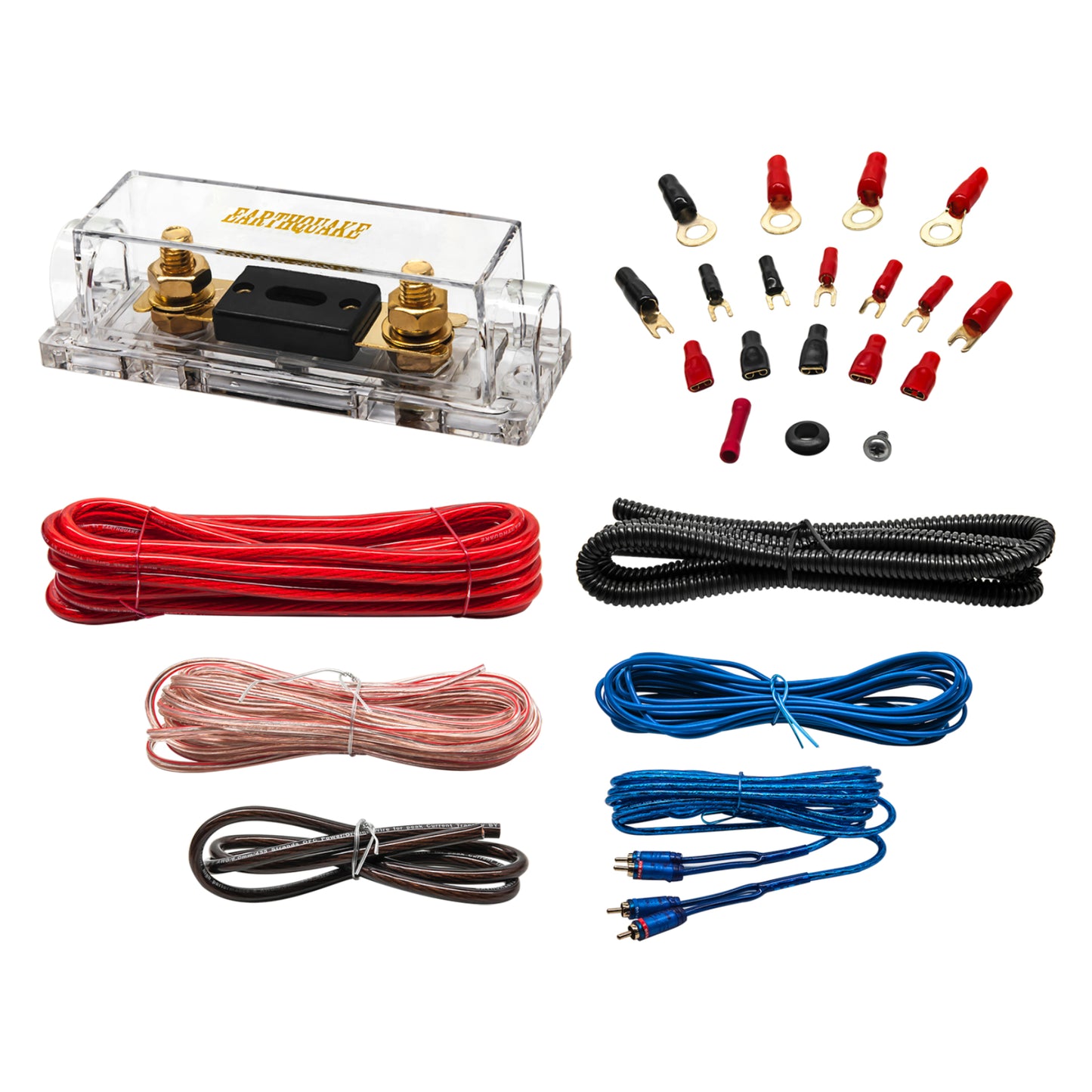

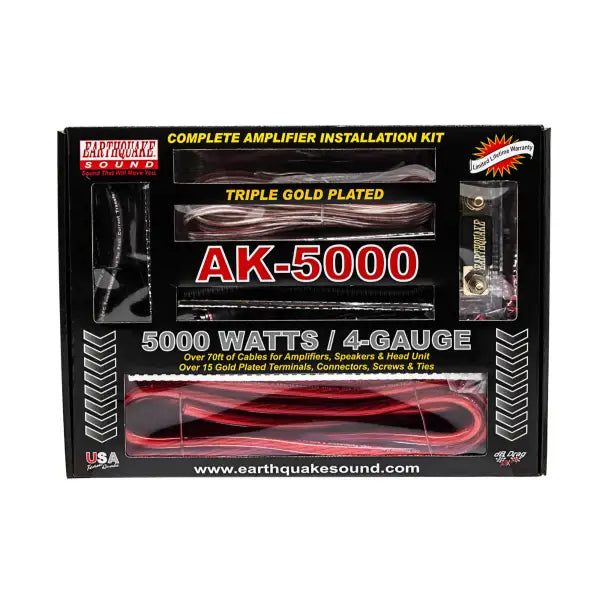

AK-5000

  • Red Power: Wire 17 ft (5.18m) 8-Gauge
  • Black Ground Wire: 3 ft (0.9m) 8-Gauge
  • Speaker Wire: 20 ft (6.1m) 16-Gauge
  • Blue Remote Turn ON Wire: 16 ft (4.8m) 16-Gauge
  • Silver Twisted-Pair RCA Interconnect: 18 ft (5.5m) Straight
  • Black Split Loom: 6 ft (1.83m) OD 8mm
  • Gold Plated ANL Fuse Holder: ANL Fuse 150 A
  • 4 x 4-Gauge Ring Terminals: 3 red/1 black
  • 2 x 4-Gauge Spade Terminals: 1 red/1 black
  • 5 x 16-Gauge Fork Terminals: 3 red/2 black
  • 4 x 16-Gauge Female Disconnects: 2 red/2 black
  • 1 x 16-22-Gauge Butt Connector for Remote Turn-ON Wire: 1 red
  • 1 x Self-Tapping Screw: 1 tinned
  • 10 x Black Cable Ties, 120mm long
  • 1 x Grommets in Black
