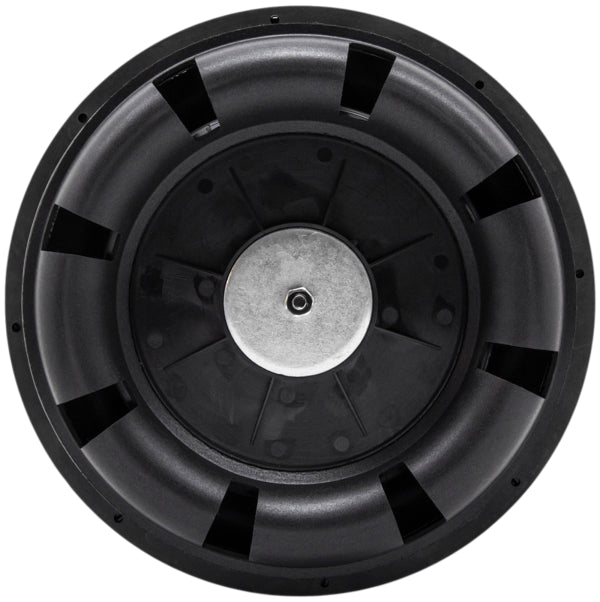

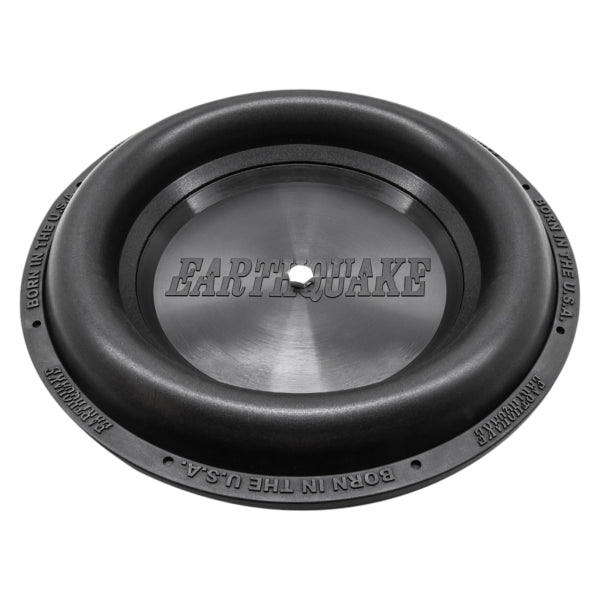

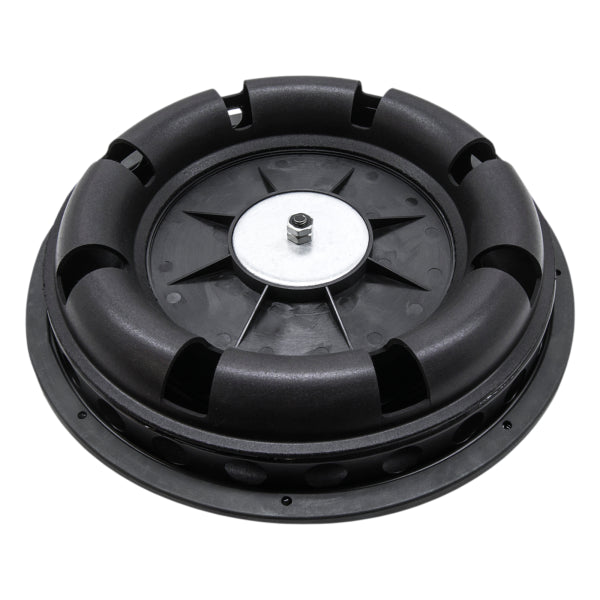

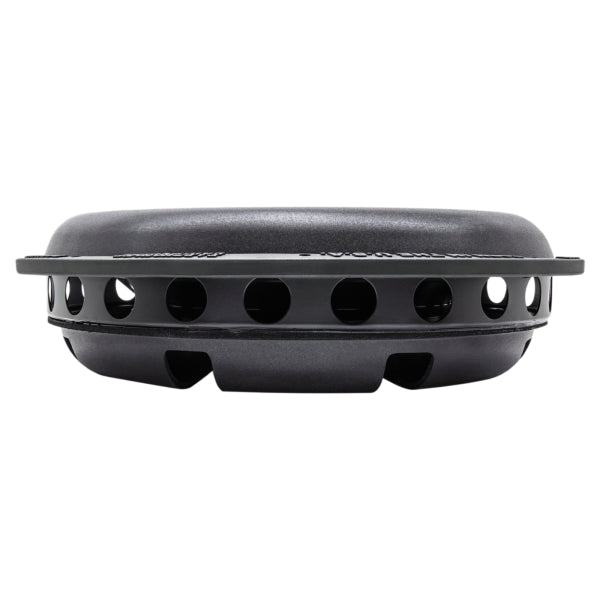

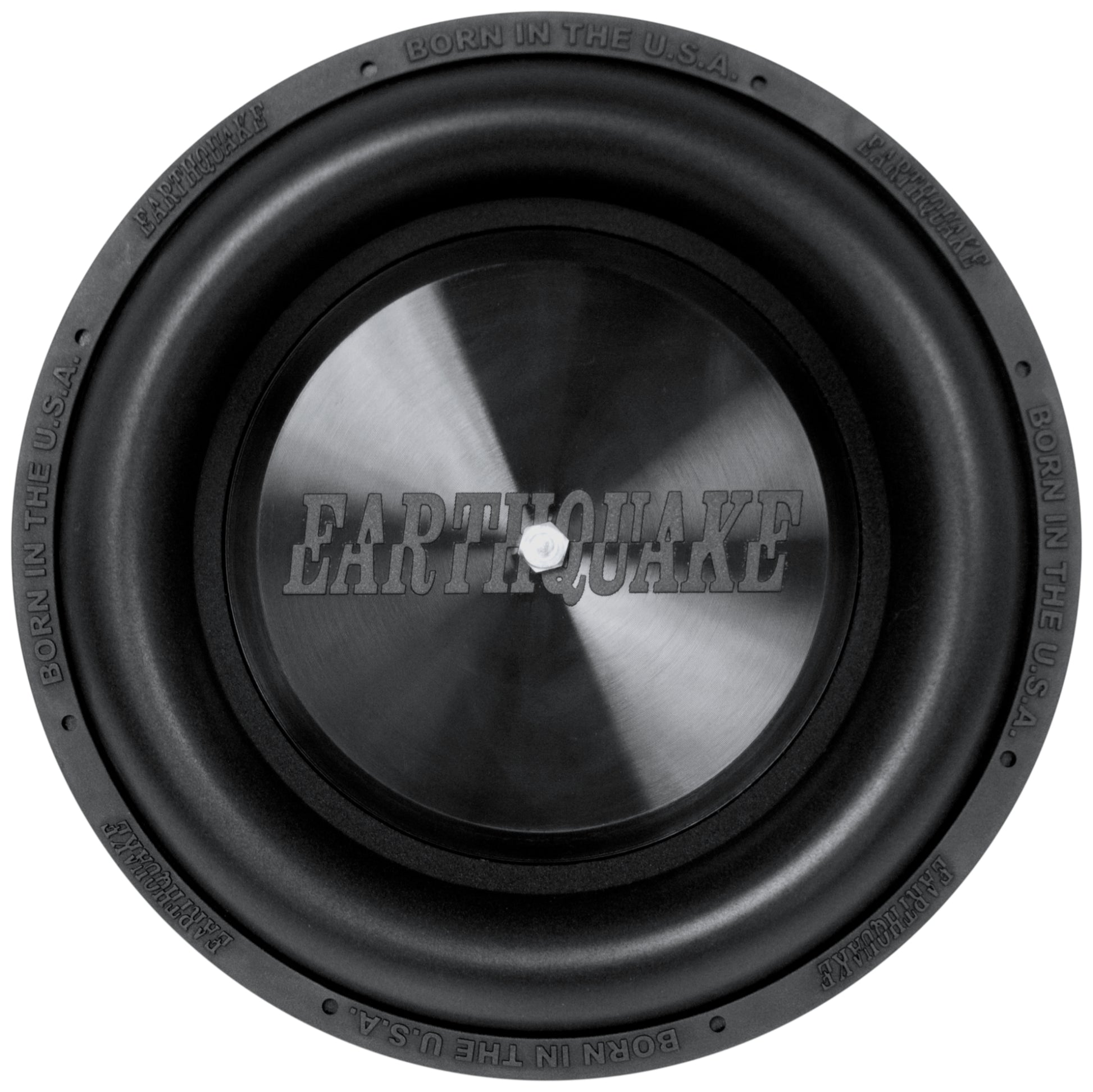

SLAPS-M12 V2 Passive Radiator

SLAPS-M12 V2

$69.99
$69.99 $99.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

Earthquake SLAPS are tunable passive radiators that provide additional bass without additional amplifier power or enclosure volume. Designed to perfectly complement all good quality long-throw woofers on the market, SLAPS add up to +6dB of bass compared to standard sealed and ported enclosures. The benefit of them being user-tunable is that they can be integrated into virtually any subwoofer/cabinet combination.

  • Overall Diameter: 12.20″ (310mm)without rubber gasket
  • Cutout Diameter: 11.22″ (285mm)
  • Mounting Screw Diameter: 11.73″ (298mm)
  • Mounting Depth: 2″ (49.9mm)
  • Xmax: 4″
  • Hex Nut Size: US 5/16 (M8)
  • Mass ID: 8mm
  • Max Mass OD: 74mm

Parameters

  • CMS, CMP: 0.000288201 N⋅m
  • Diameter Peak to Peak, D: 25 cm
  • Active Piston Area Sd: 490.875 cm²
  • Active Piston Area Sd: 0.0490875 m²
  • Vas in Liters: 98.61116866 L
  • Vas in Cubic Feet: 3.472224249 ft3
  • Air Mass Mmr In Kgs: 0.006253515 kgs
  • Air Mass Mmr In Grams: 6.253515291 g
  • Moving Mass In Grams: 213 g
  • Mms = Mmp In Grams: 219.2535153 g
  • Free Air Resonance Fs = Fp: 20.02155789 Hz
  • Peak to Peak Excursion in/cm: 4″ / 10.16 cm
  • Qms: 8.5

* All measurements are with zero added mass, assuming surround losses of Qmd = 7 @ 20Hz
