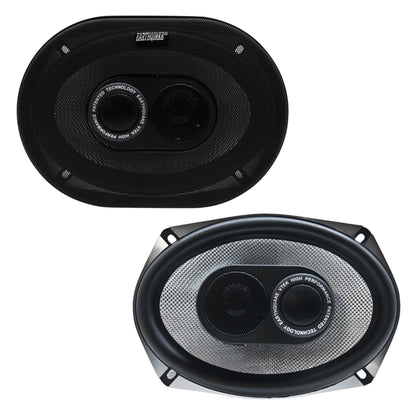

VTEK-693 Coaxial Speaker (Open-Box)
SKU:VTEK-693 OB
Open-Box/B-Stock
Couldn't load pickup availability
Share
Description
Earthquake’s VTEK-693 coaxial speaker was designed with an emphasis on OEM applications to install precision high-quality aftermarket speakers in factory-upgraded vehicles. The 6×9 inch VTEK-693 delivers quality and performance while eliminating the need to buy overpriced replacement speakers from the vehicle or audio manufacturers. Earthquake’s VTEK speakers cost less, perform better, and will reach you in less time.
With several features that enhance sound quality, performance, and protection, the VTEK-693 coaxial speaker delivers the best OEM sound possible at the best price possible. Features such as glass fiber cone bodies for faster and more accurate dynamic responses, die-cast aluminum baskets for additional self-cooling, PistonMax™ drive technology for higher sound quality plus quantity, and 20mm swiveling silk dome neodymium tweeters result in the smoothest, highest, and most precise highs possible.
Product Features
- High-end 3-way coaxial speaker
- Midbass: 6″x9″ (152 x 229mm)
- Midrange: 2″ (50.8mm) super dome
- Tweeter: 20mm silk dome / neodymium magnet
- Tri-layered glass fiber cone with electroplated aluminum surface sealer
- NOMEX/ROMEX spider assembly
- Overhung rubber surround
- PistonMax™ driver technology
- Woofer protection circuitry
- Die cast aluminum basket
- Long excursion
Specifications
- Power Handling: 50–700 Watts
- Frequency Response: 25Hz–22kHz
- Sensitivity: 92dB @ 1W/1M
- Nominal Impedance: 4-Ohm
Dimensions
- Frame Outer Diameter: 9.27″ x 6.45″ (235mm x 164mm)
- Grille Protrusion: 1.42″ (36.06mm)
- Mounting Depth: 3.75″ (95.25mm)
- Magnet Width: 4.33″ (110mm)
- Cut Out Hole: 8.58″ x 5.66″ (218.03 x 144mm)
