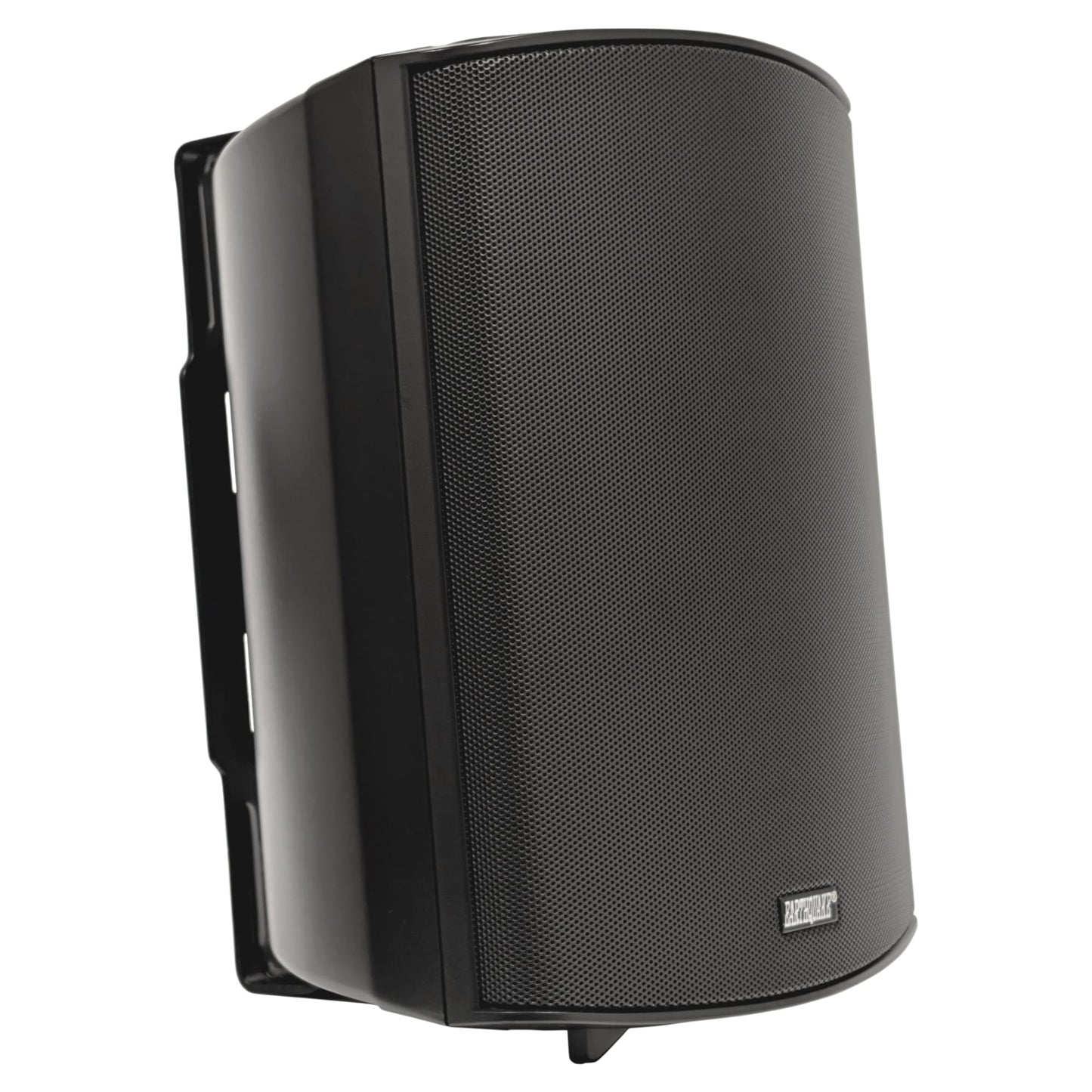

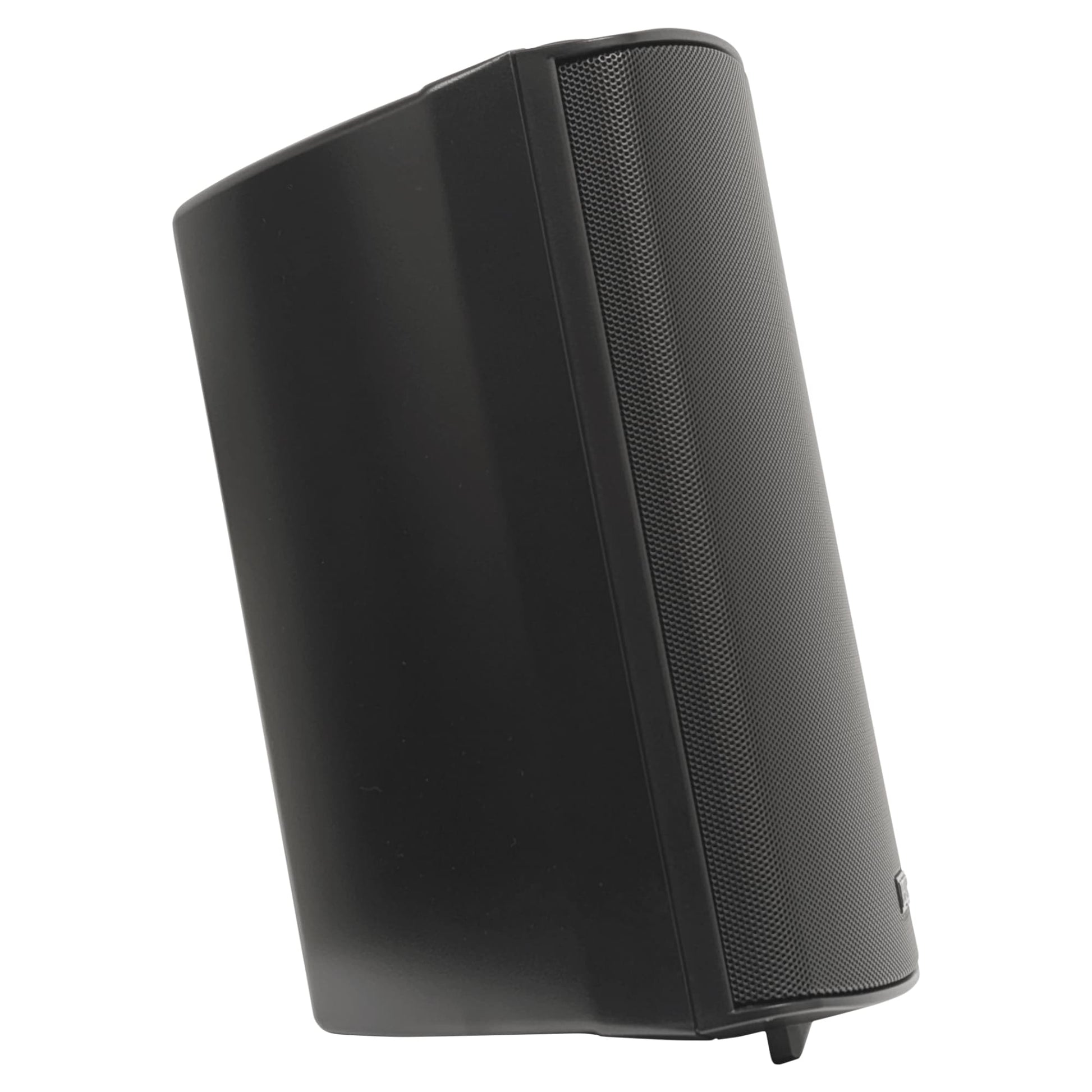

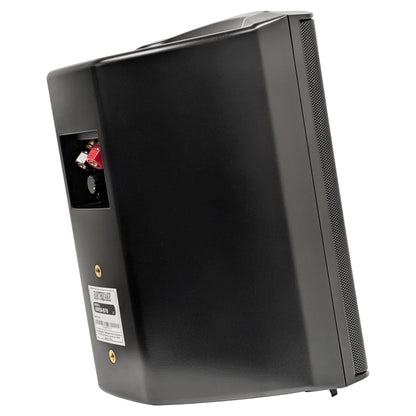

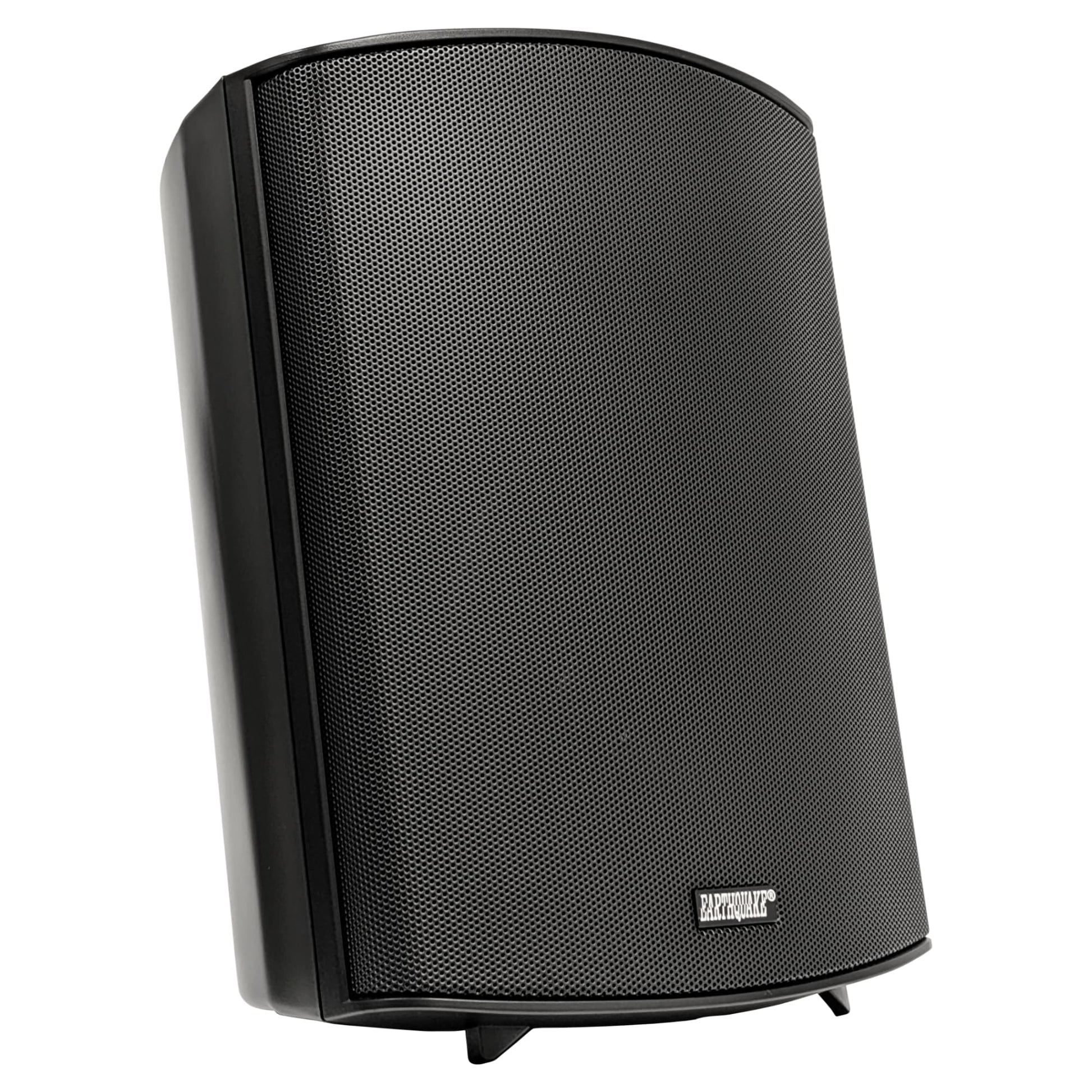

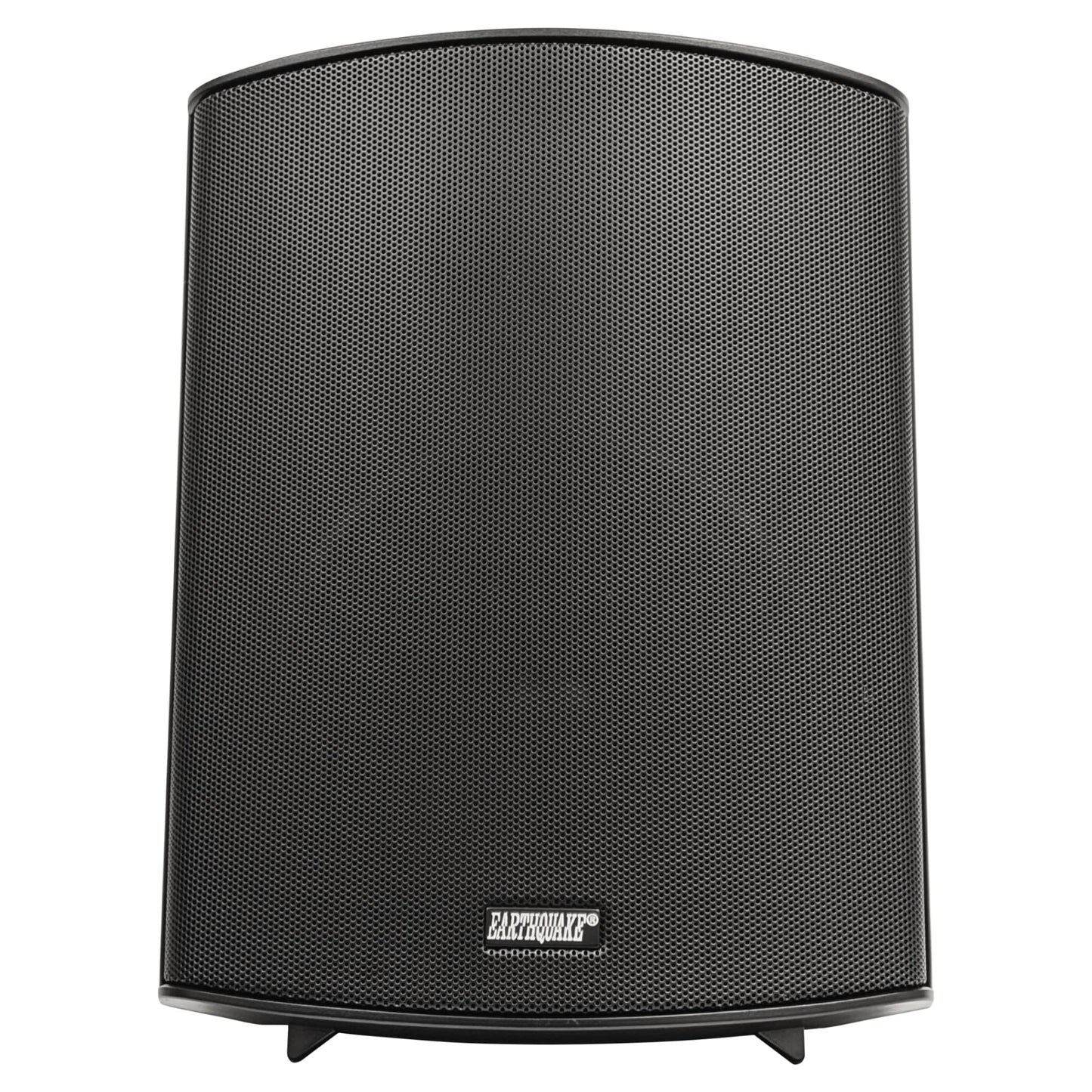

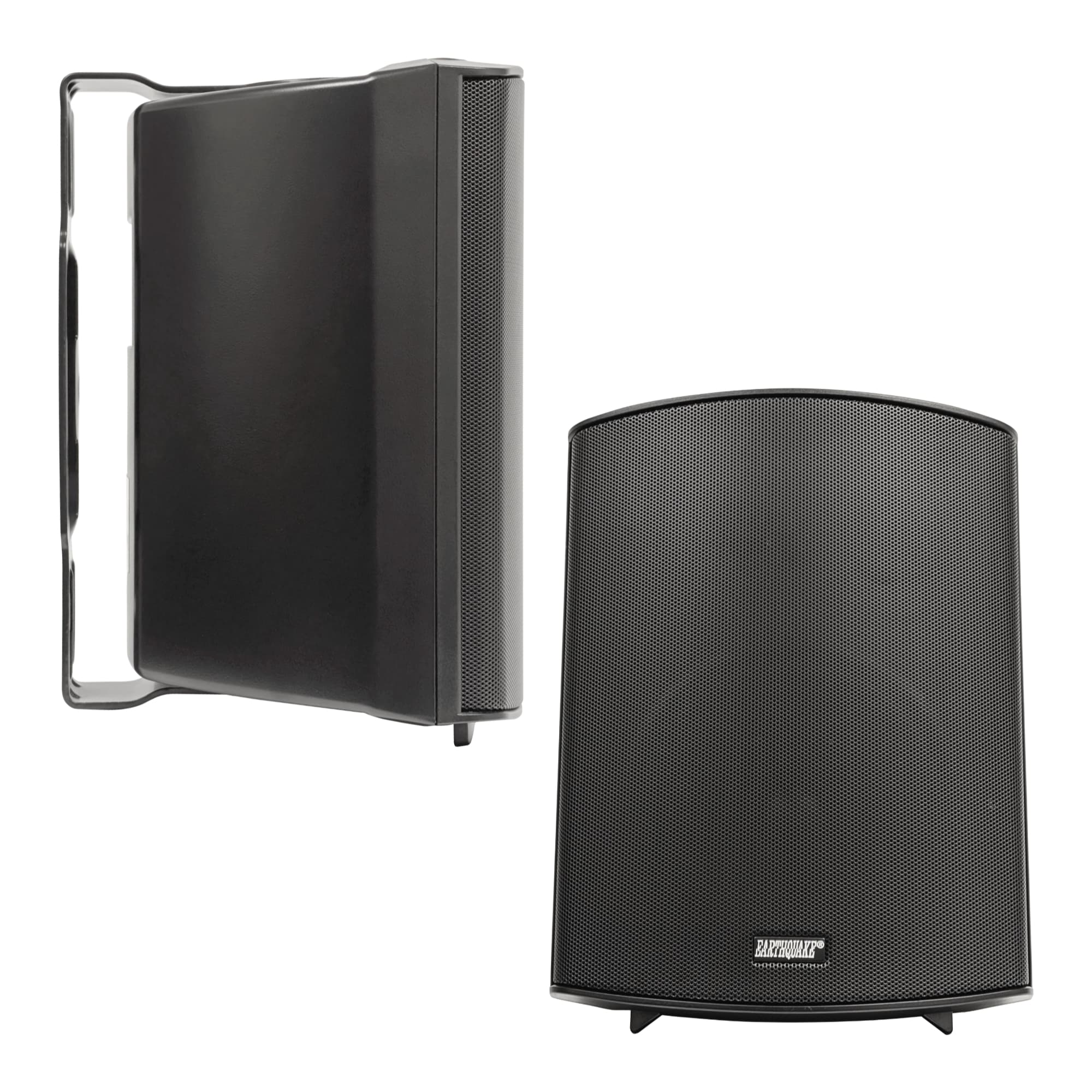

The Earthquake AWS6-B70 is a robust 6.5-inch outdoor speaker engineered to deliver premium audio performance in demanding commercial environments. Combining high-fidelity sound reproduction with rugged durability, the AWS6-B70 is designed for installers seeking reliability for any indoor/outdoor audio system.
Engineered to survive the elements, the AWS6-B70 is built to withstand the unpredictability of nature. Featuring an IPX4 rating, the enclosure is splash-proof and weather-resistant from any direction. As commercial spaces increasingly extend into the outdoors–from sprawling restaurant patios to hotel courtyards and theme parks–the demand for sound that is both immersive and resilient has never been higher. The UV-resistant cabinet ensures that the speaker maintains its aesthetic appeal even after prolonged outdoor exposure.
Designed for versatility with the system integrator in mind, the AWS6-B70 features a built-in, adjustable multi-tap transformer for 70V and 100V distributed audio systems, allowing for long cable runs and daisy-chaining without signal degradation.
Product Features
2-way indoor/outdoor all-season monitor speaker
Built-in 70V/100V (Hi-Z) multi-tap transformer
8-Ohm (Low-Z) bypass for residential applications
Durable molded high-temperature PVC enclosure
Excellent for all applications including marine
UV-treated for high environmental endurance
Lightweight polypropylene woofer cone
Durable Butyl rubber surround
3/4 in. (20mm) PEI Mylar dome tweeter
1 in. (25mm) ASV voice coil
Paintable grille and enclosure to match and decor

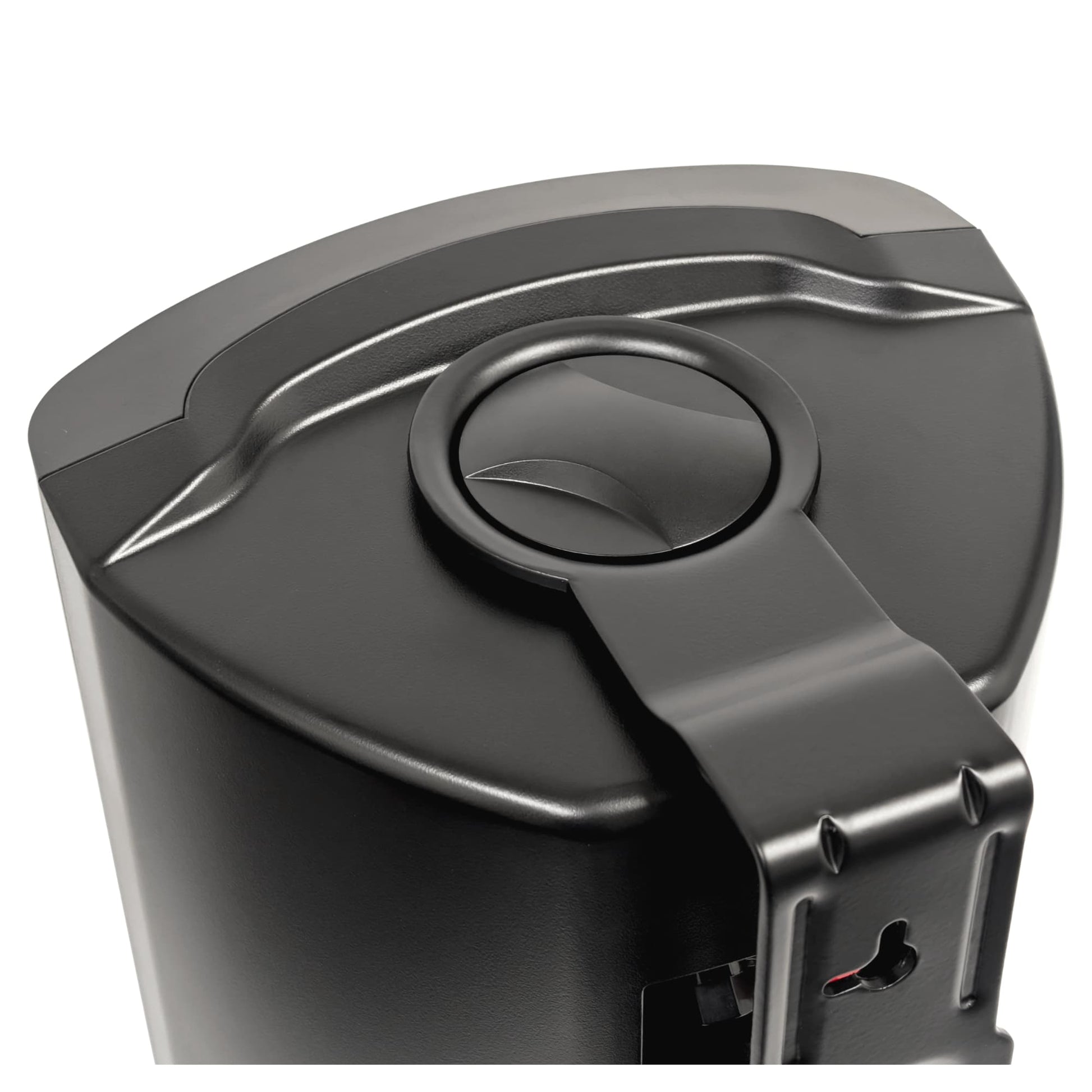

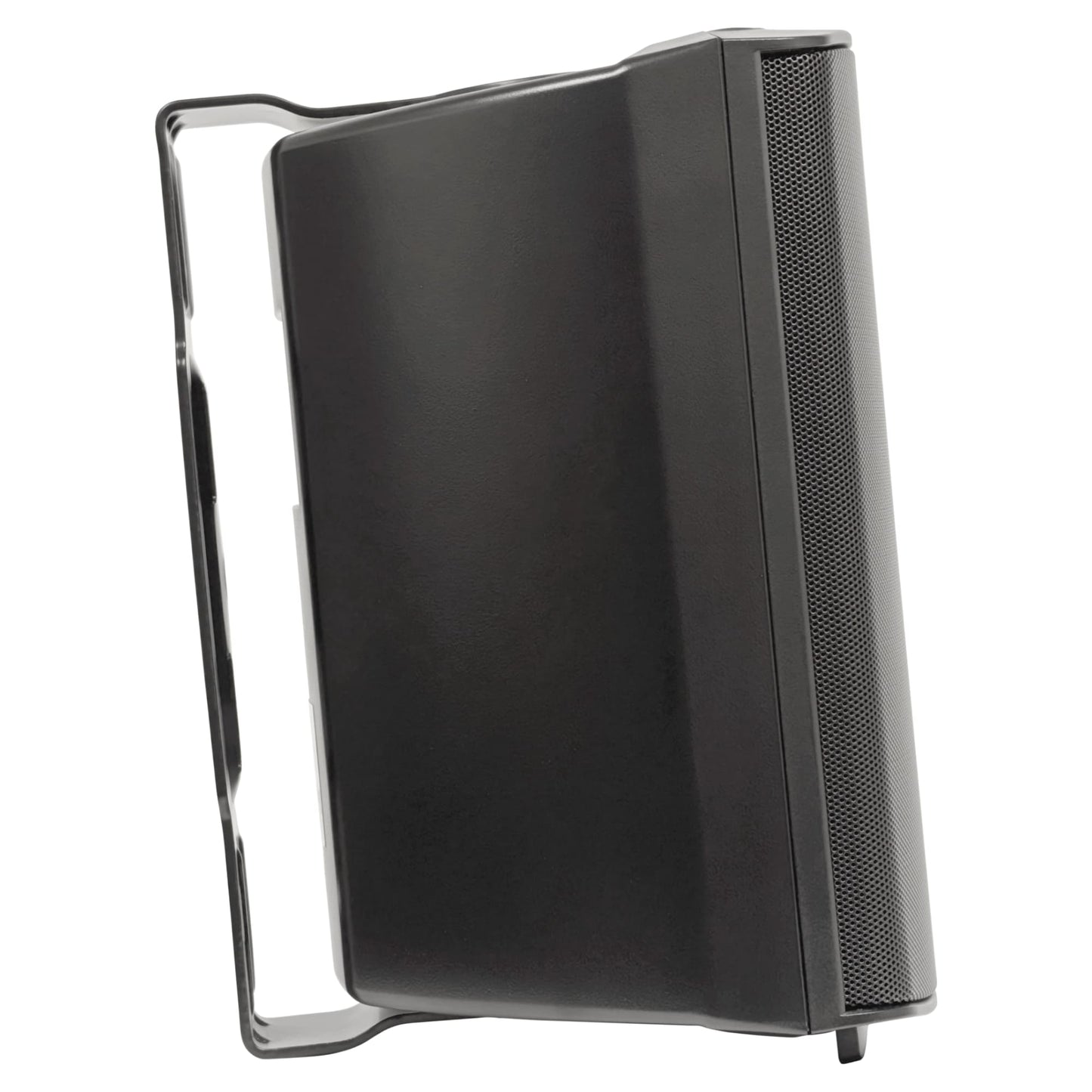

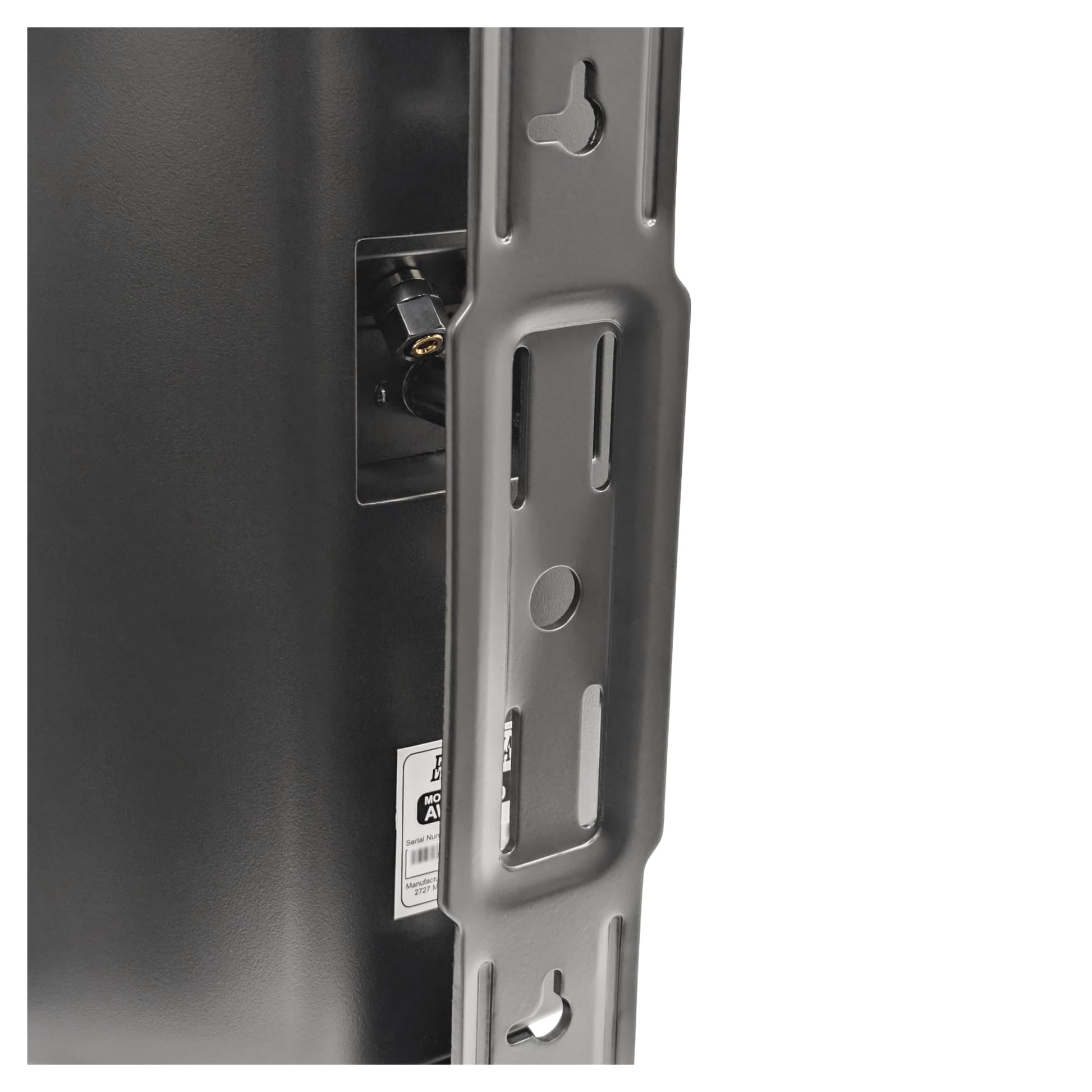

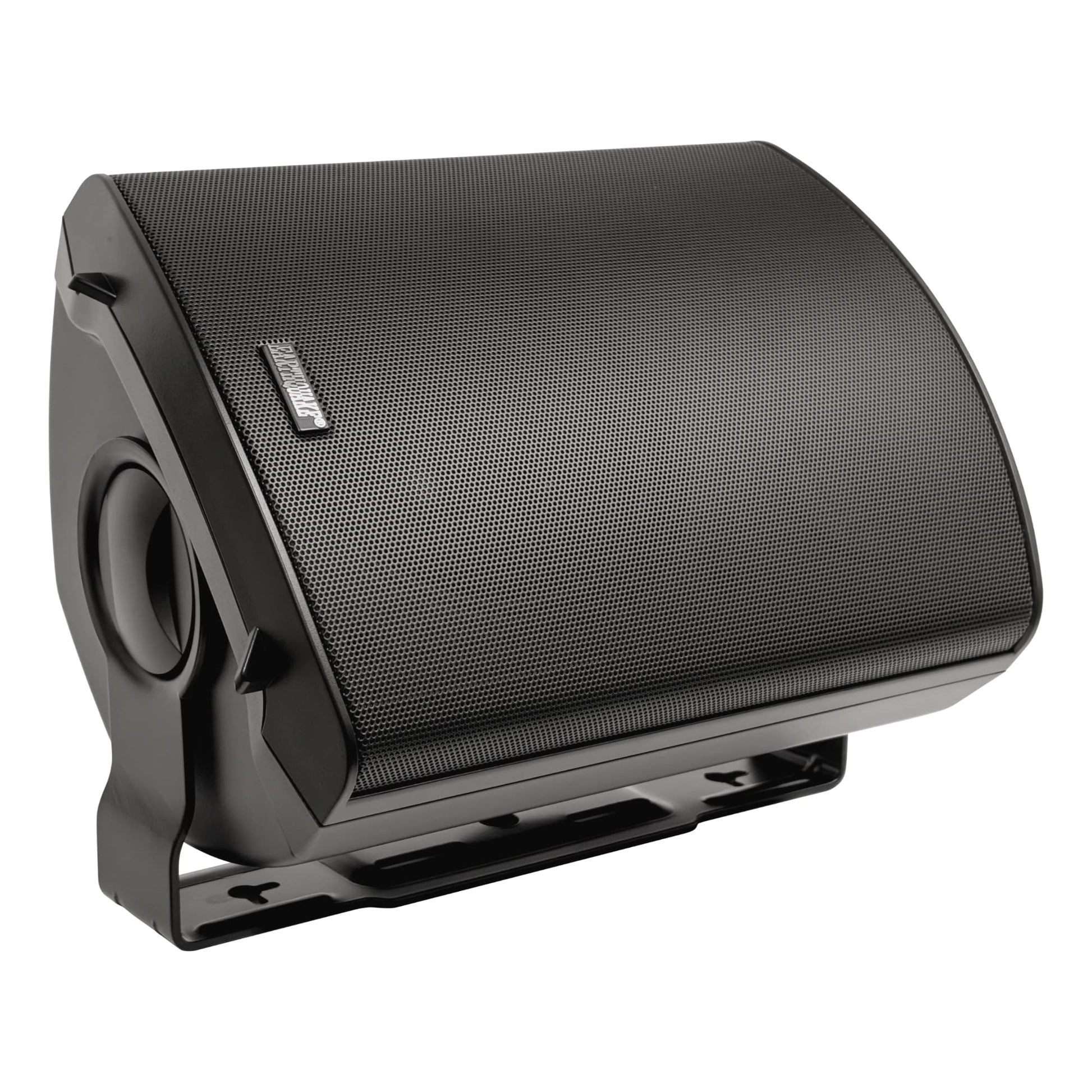

Versatile rust-proof mounting bracket and hardware
Anti-rust aluminum grille
Molded enclosure feet for bookshelf placement
180° directional positioning for optimal dispersion
Removable port plug for extended bass response

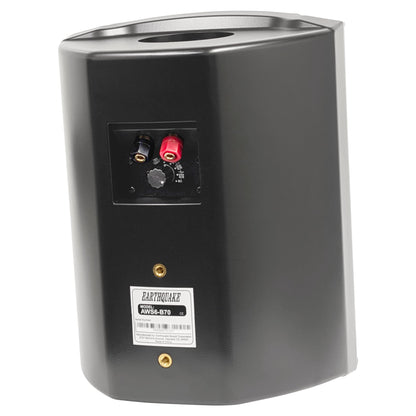

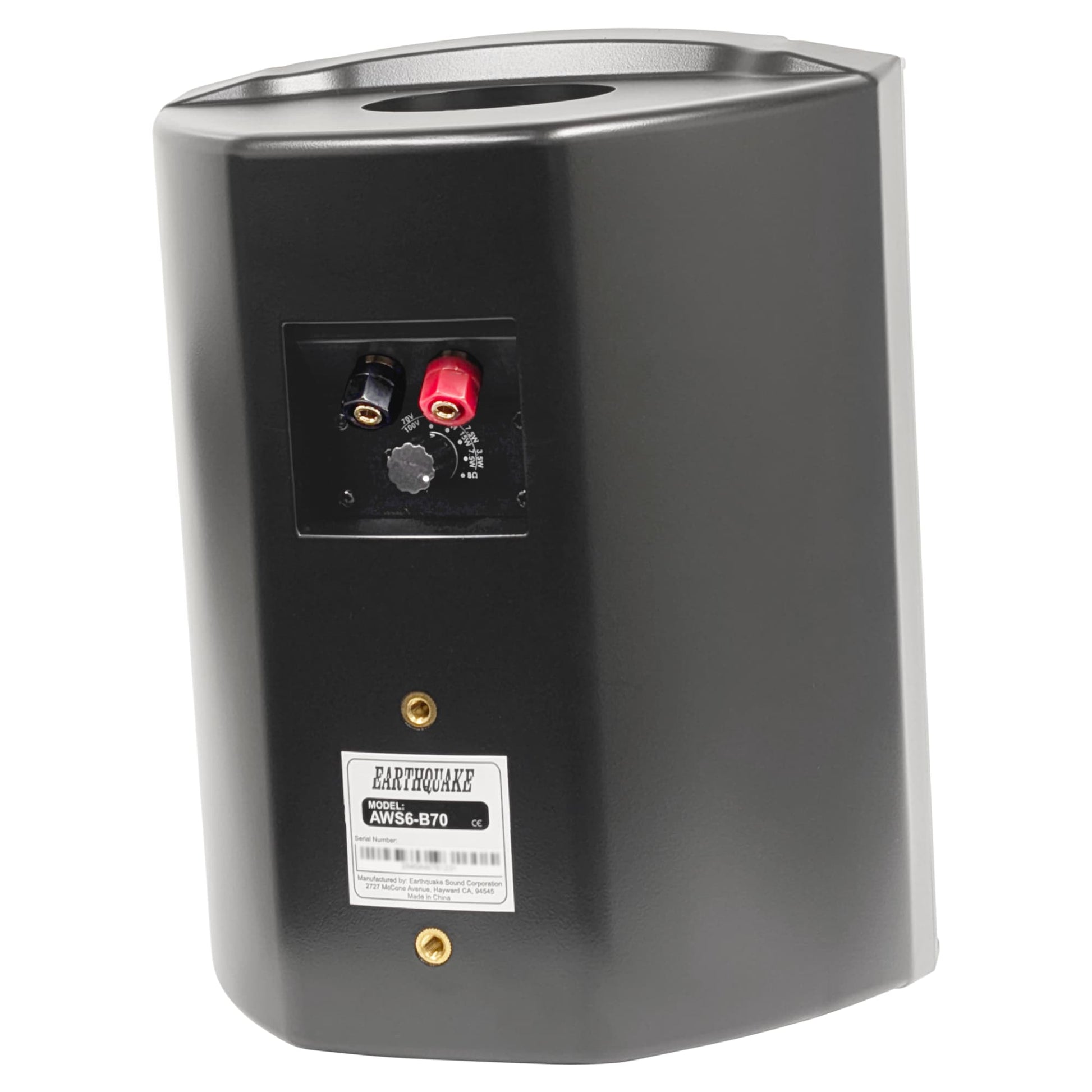

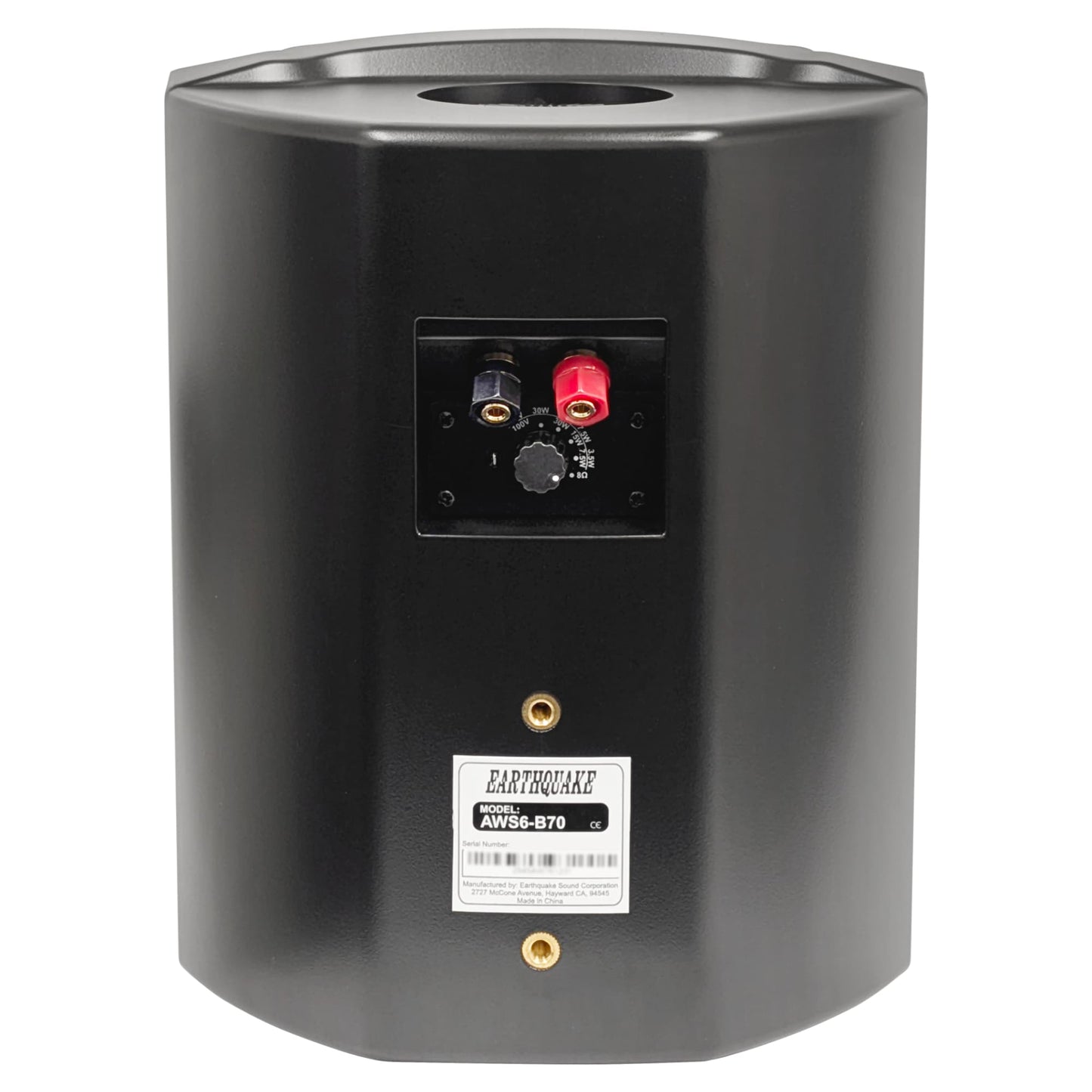

Gold-plated binding posts
Specifications
Woofer: 6.5 in. (165mm), 25mm ASV voice coil
Tweeter: 3/4 in. (20mm)
Woofer Material: Cone: Polypropylene
Surround: Butyl Rubber
Tweeter Material: PEI Mylar dome
Frequency Response: 65Hz–20kHz
Sensitivity: 96dB 1W/1M

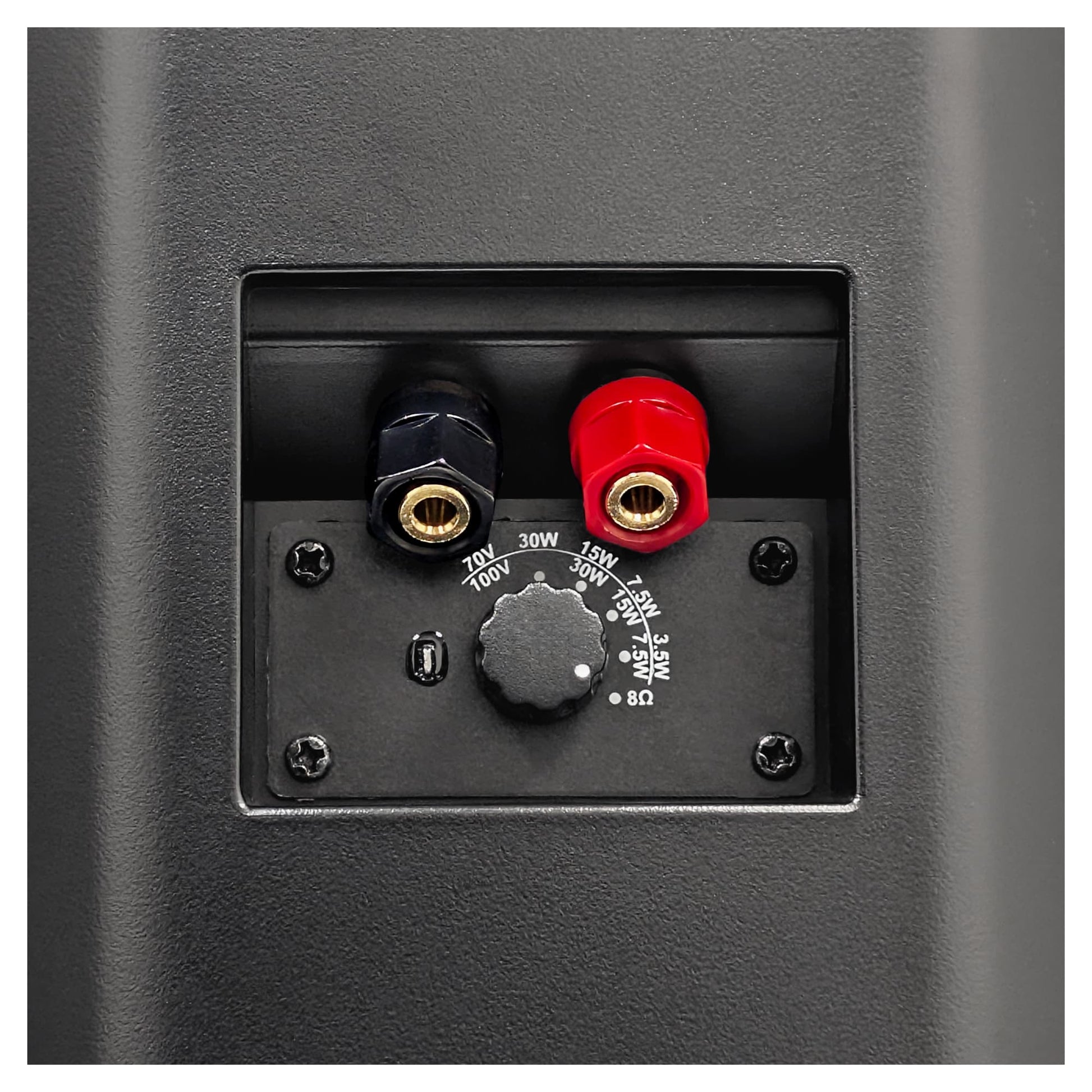

Transformer Taps 70V: 30W, 15W, 7.5W, 3.5W
Transformer Taps 100V: 30W, 15W, 7.5W
8-Ohm Bypass
Power Handling 8-Ohm: 200W Max
Power Handling 70V/100V: 30W Max
Ingress Protection Rating: IPX4
Enclosure Material: PVC (Polyvinyl Chloride)
Enclosure Finish: Matte black
Bracket Material: Aluminum
Grille Material: Aluminum
Mounting Hardware Material: Aluminum
Overall Dimensions (H x W x D): 11.5 in. x 8.5 in. x 7.12 in.
