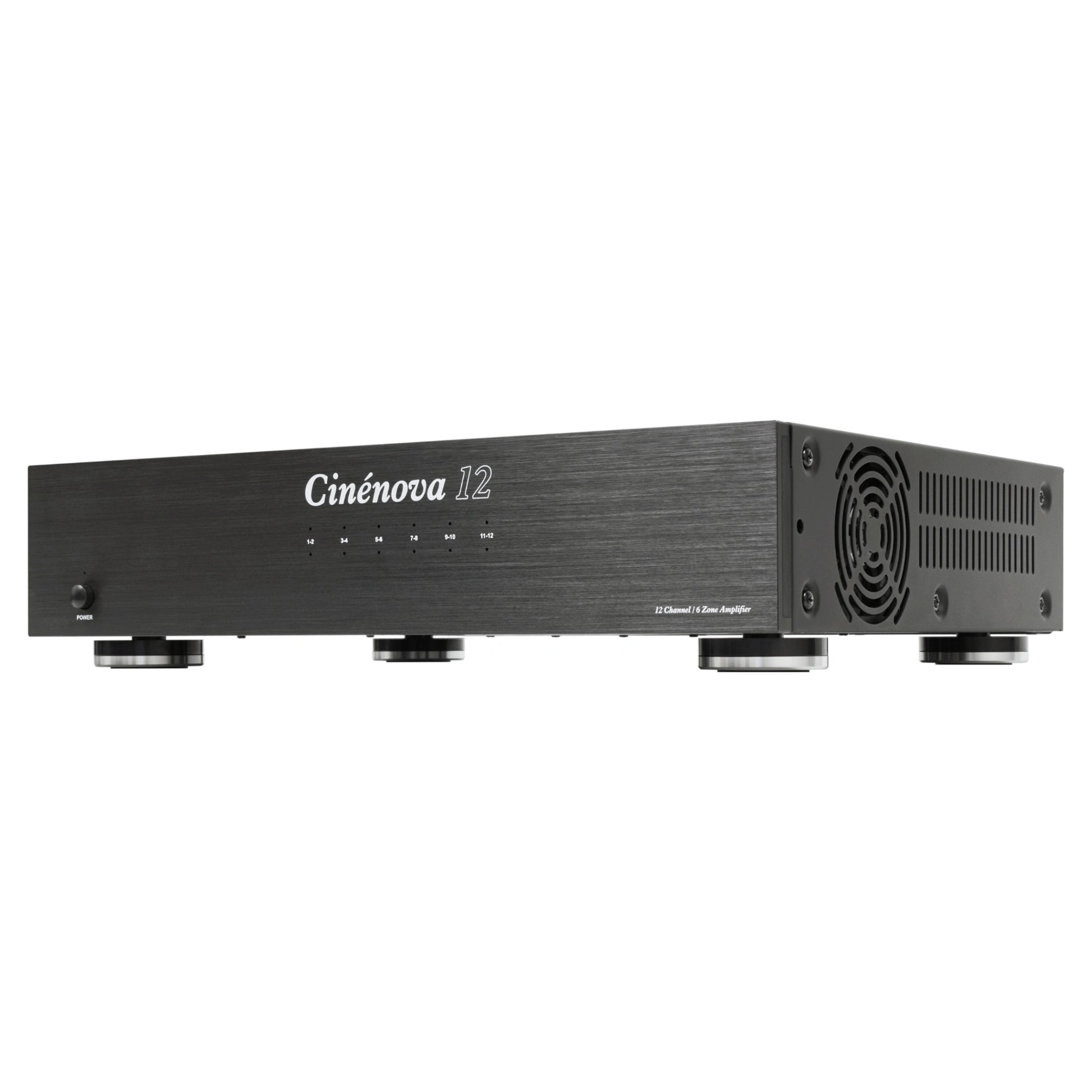

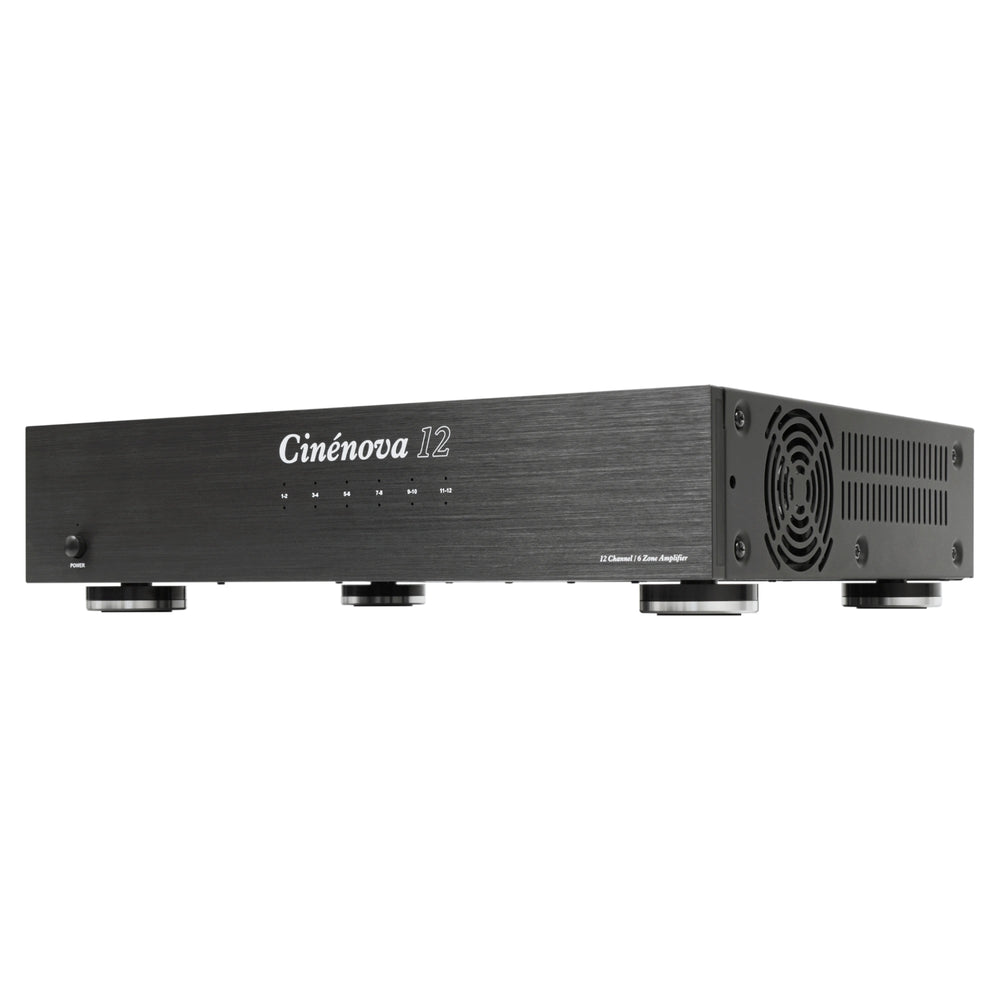

The Earthquake Cinénova 12 is a highly versatile 12-channel amplifier that provides exceptional sound quality and performance. Offering flexibility with 12 channels across 6 stereo zones, this amplifier showcases a sleek design, user-friendly interface, and advanced protection features. Noteworthy for its exceptional flexibility and customization, it caters to the diverse needs of audio enthusiasts and integrators, making it ideal for home theater and distributed audio systems. With a focus on value, performance, and adaptability, the Cinénova 12 is positioned as a premier option in the multi-room audio market.

Product Features

12-channel amplifier with six independent playback zones
Gallium Nitride (GaN) transistor technology for higher power density, efficiency, and enhanced reliability
Play the same source across all six zones or have a different source playing in each one
Ideal for custom multi-room/zone audio systems
Individually driven amplifier blocks (Class D output stage)
Bridgeable channel outputs for additional power

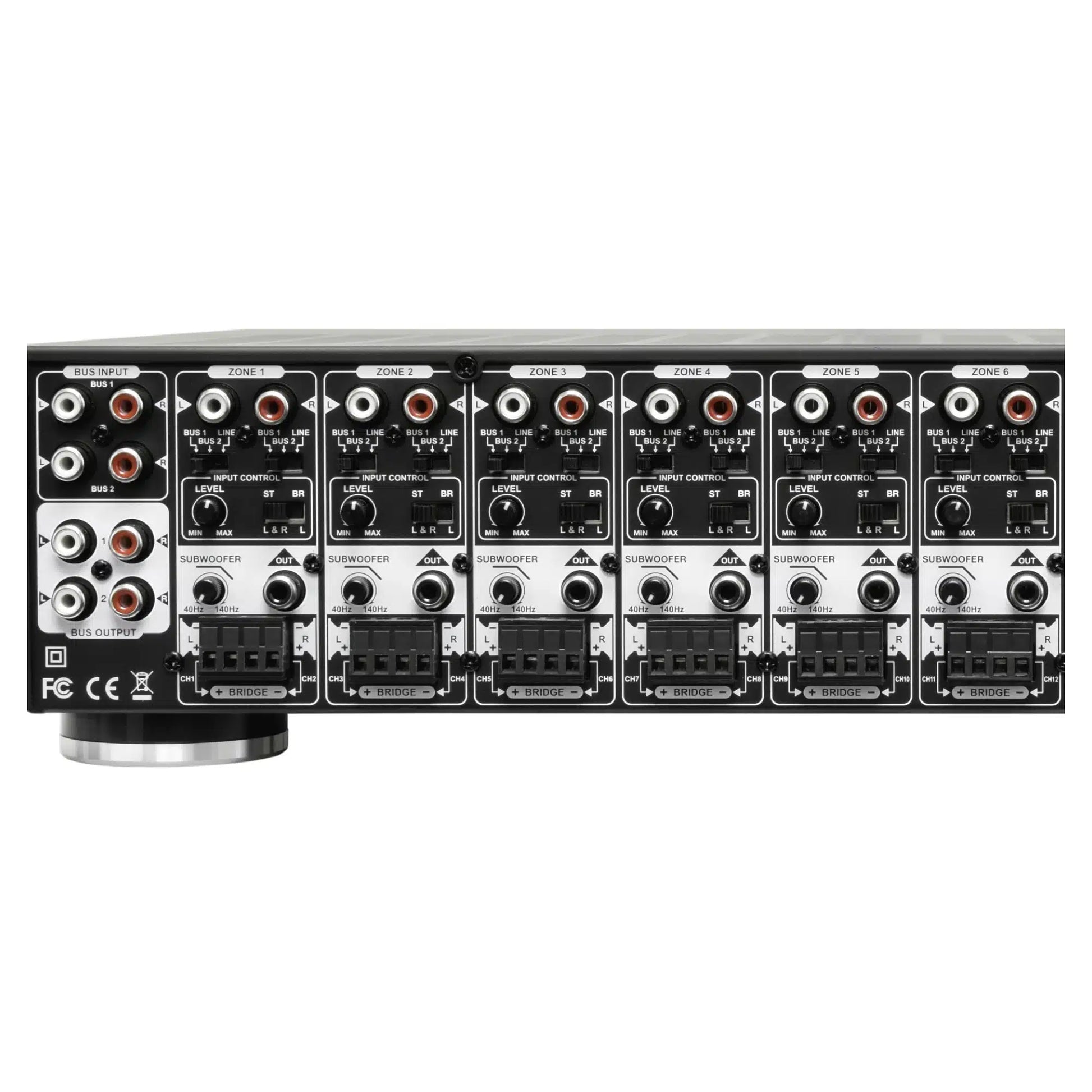

Independent Line and BUS RCA inputs
Subwoofer and BUS RCA outputs
BUS inputs have a corresponding output that can be daisy-chained to another amplifier
Detachable Phoenix-style speaker terminals
Speaker level subwoofer compatibility
Independent level control per channel
Subwoofer crossover from 40Hz–140Hz
Manual, auto, or triggered on/off modes
12V trigger input and output
5.2V/2A USB ports for powering accessories
2U rack space and tabletop mounting

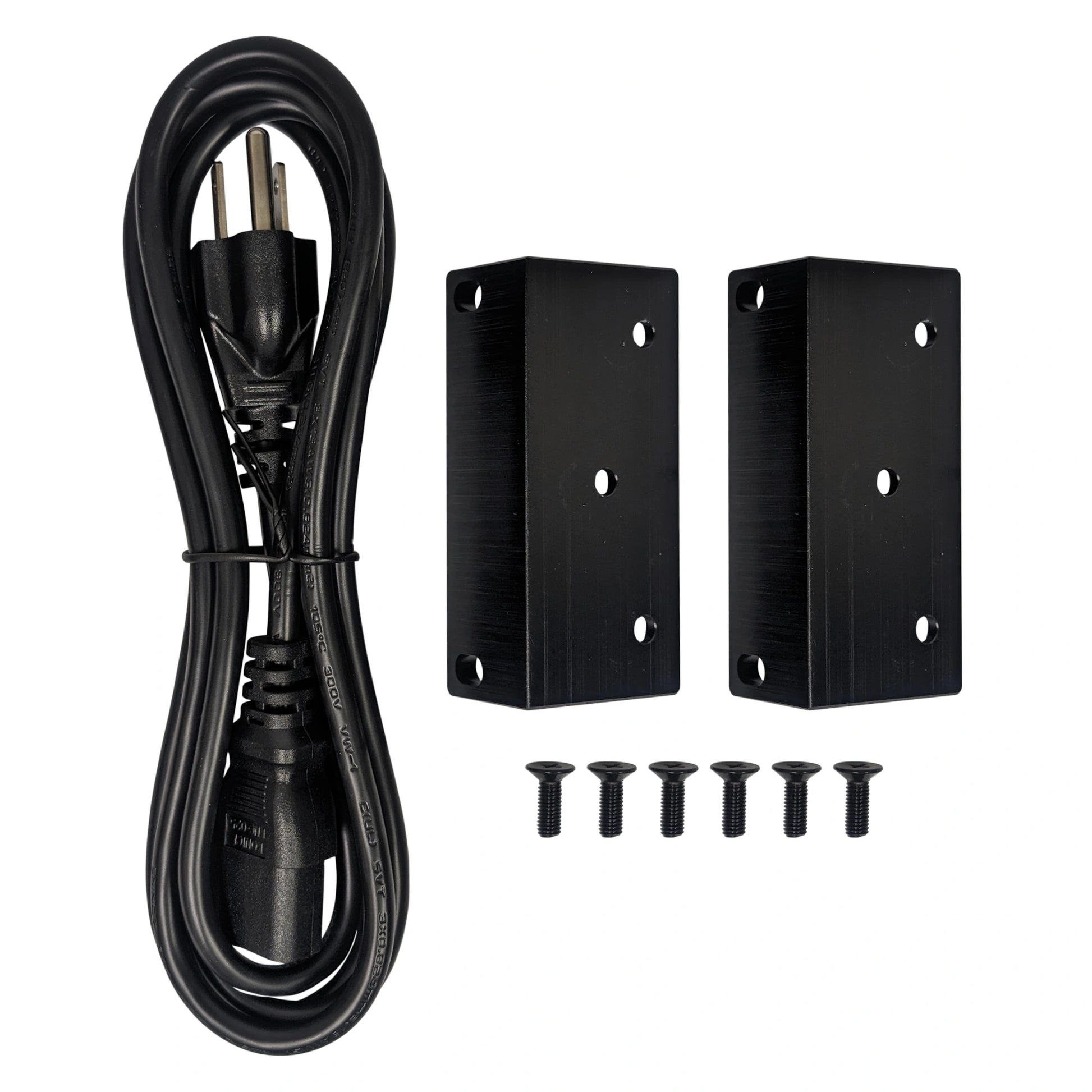

Rack mounting ears included
Switchable 110V/220V input AC voltage
Ground lift selector

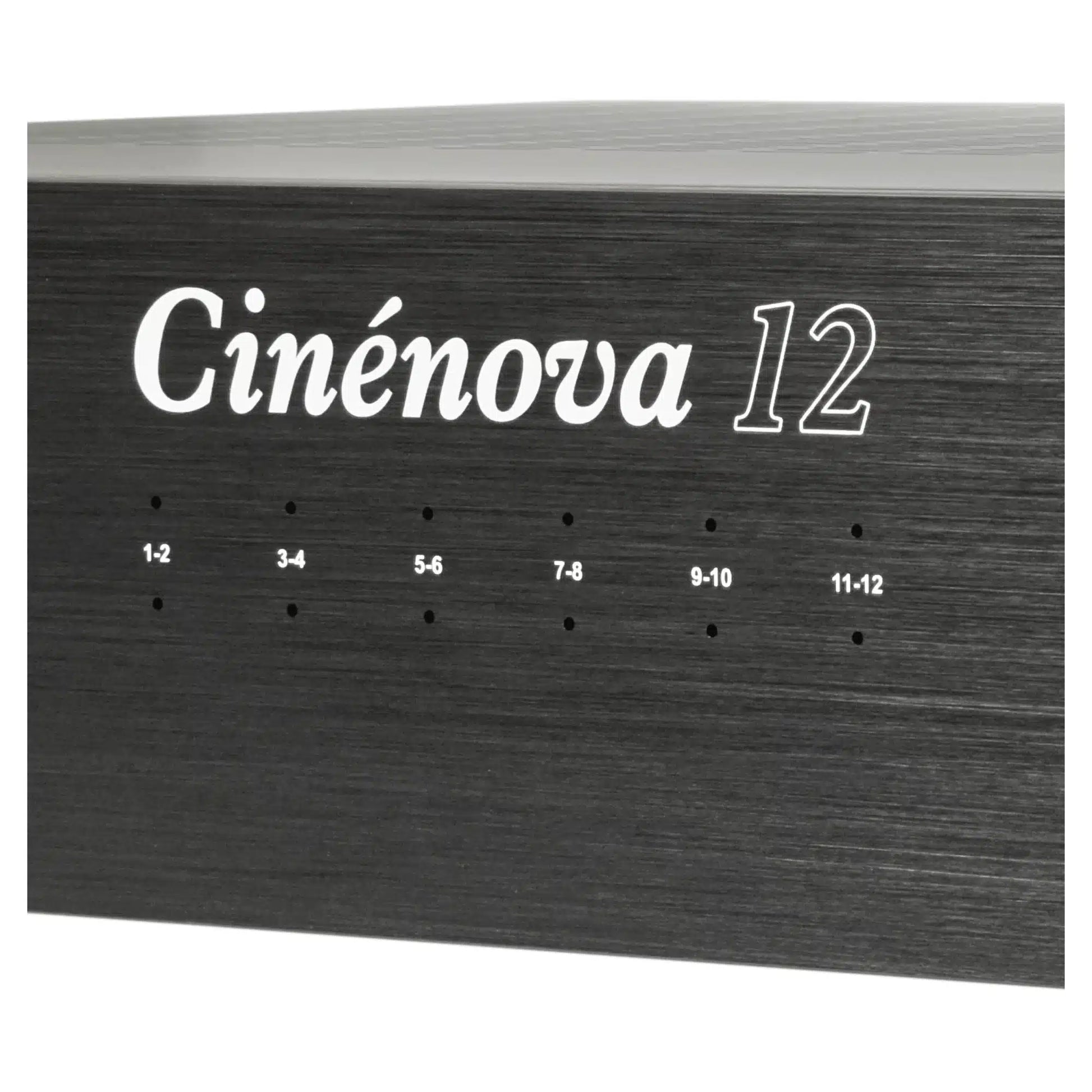

Front zone/channel status LED indicators
Multi-stage protection circuitry

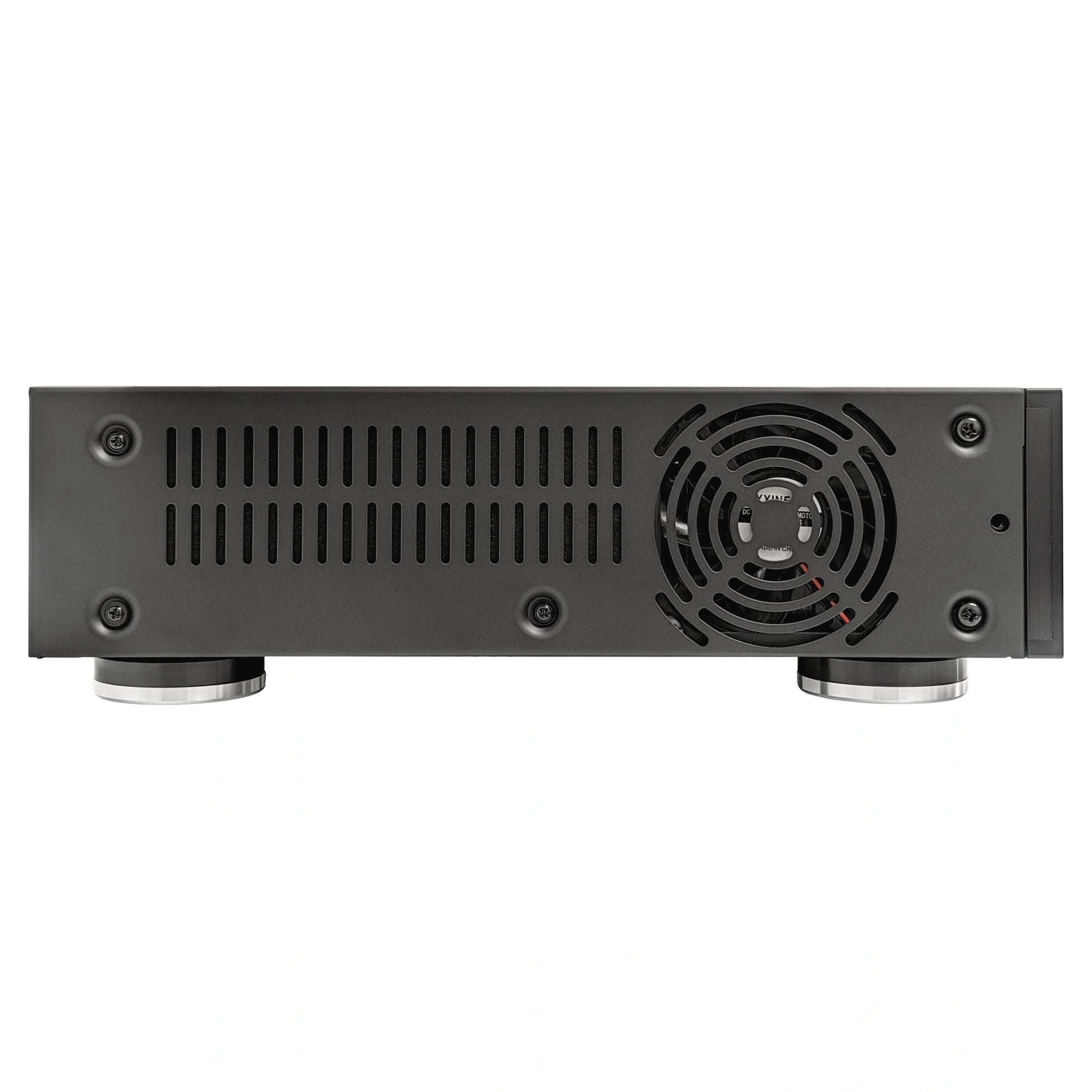

Temperature-controlled cooling fans
Rack-mountable with included hardware

Specifications

Number of Channels / Zones: 12 Channels / 6 Stereo Zones
Bridgeable: Yes
Amplifier Class: D
Rated Power Output Per Channel: 120W RMS x 12 into 4 ohms, 250W RMS x 6 into 8 ohms (Bridged)
Frequency Response: 20Hz–20kHz
Crossover Frequency (Low Pass): 40Hz–140Hz
Input Impedance: 20 kOhm
Signal-to-Noise Ratio: 110 dB
Total Harmonic Distortion: <0.003% @ 1kHz
Crosstalk: 110 dB Mono, 75 dB Stereo
Trigger In Voltage: 3.3–12V DC/AC
Trigger Out Voltage: 12V DC
Auto Off Delay Time: 15 min
Standby Power: 0.4W
Input Connections: 3.5mm mini jack, BUS RCA, Line RCA

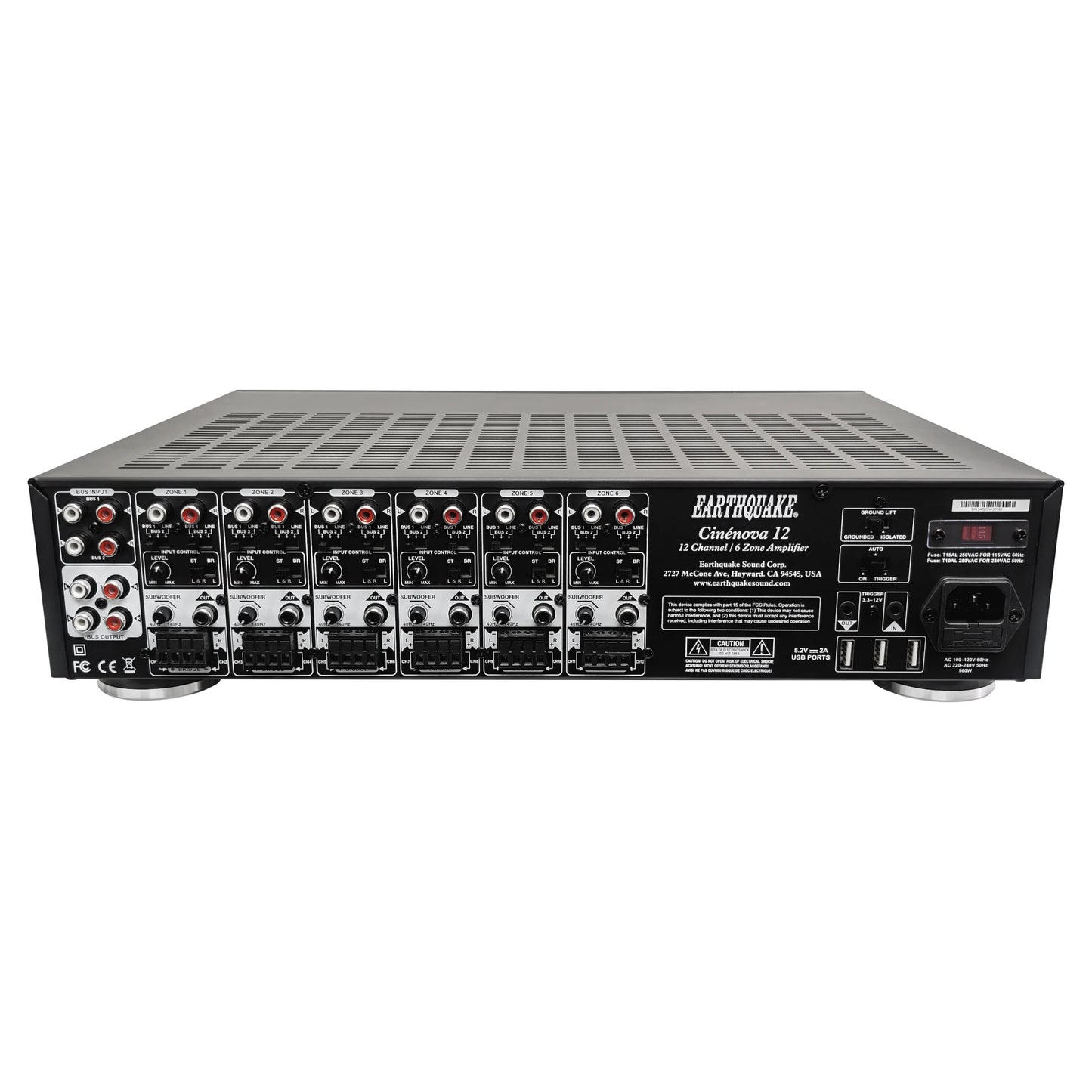

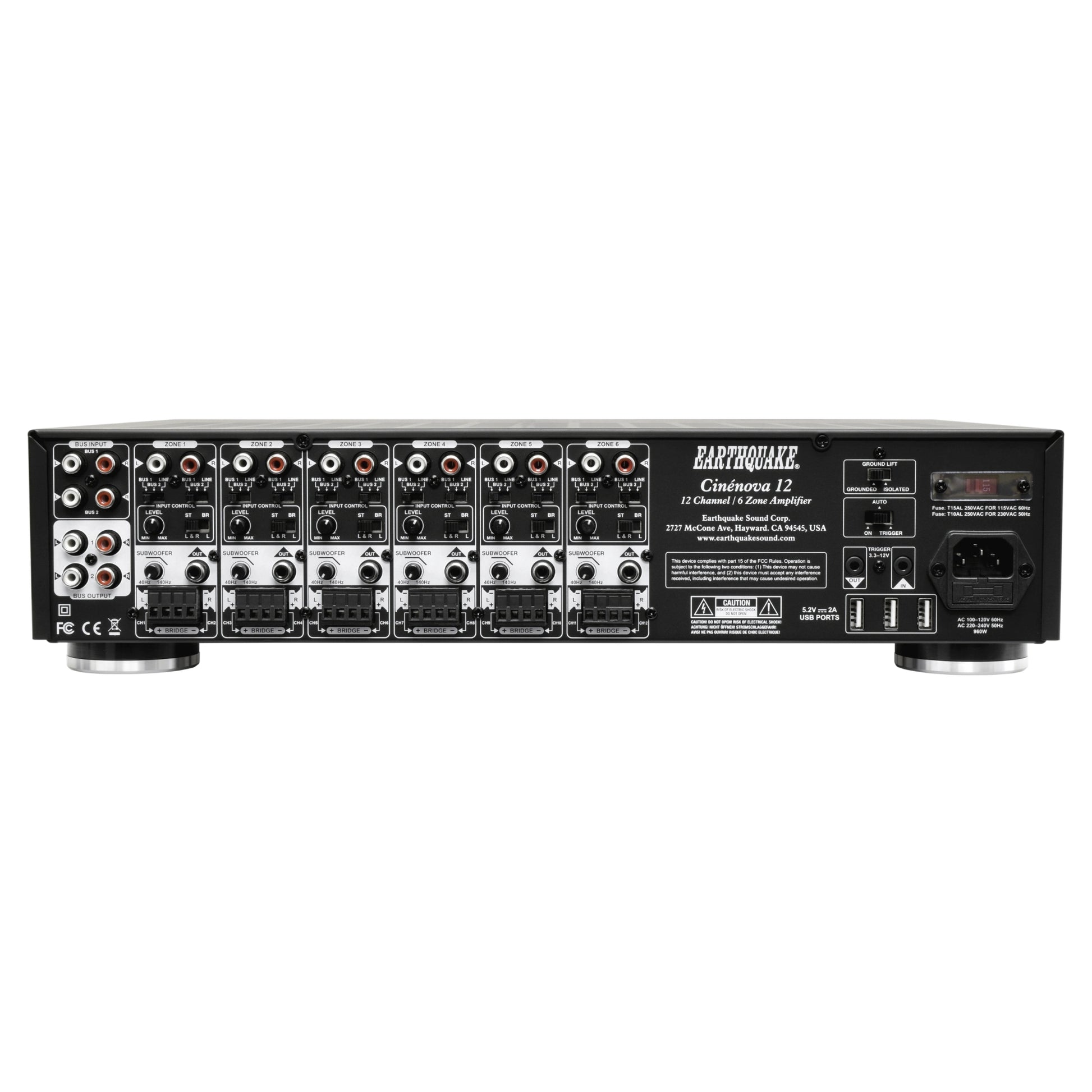

Output Connections: 3.5mm mini jack, 5.2V USB, BUS RCA, High Level Speaker, Subwoofer RCA
Turn On Modes: Auto, On, Trigger
Rack Mountable: Yes
Rack Mount Spaces: 2U
Rack Width: 19 in.
Remote: N/A
App Control: N/A
LED Indicators: Master Power, Operational Status
Power Requirements: 115/230 VAC, 60/50 Hz
Chassis Material: Steel
Faceplate Material: Brushed Aluminum
Chassis Dimensions: 3.5 in. x 16.92 in. x 13.18 in. (89 mm x 430 mm x 335 mm)
Mounting Dimensions: 2.99 in. x 18.42 in. (76 mm x 468 mm)
Overall Dimensions: 4.13 in. x 19.13 in. x 13.67 in. (105 mm x 486 mm x 347 mm)
Unit Weight: 33 lb (15 kg)
