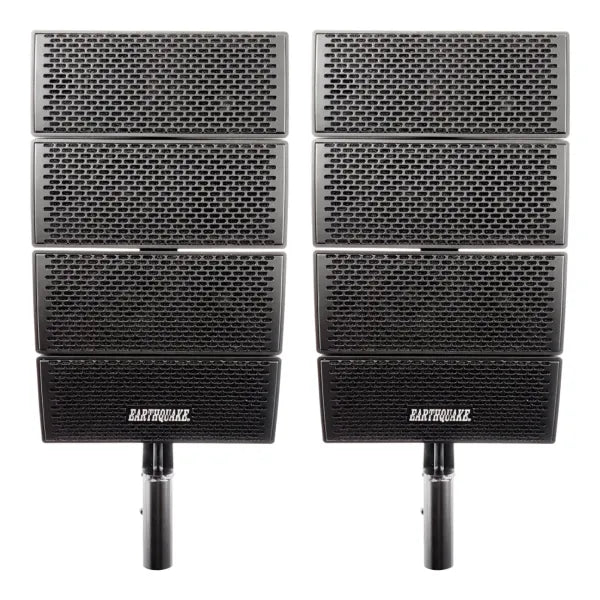

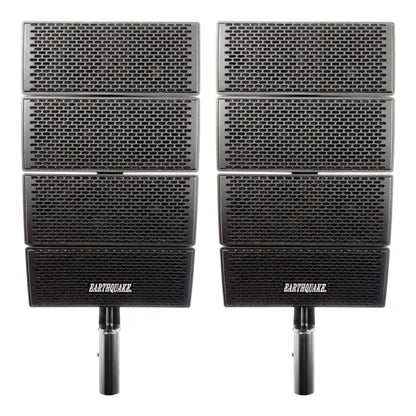

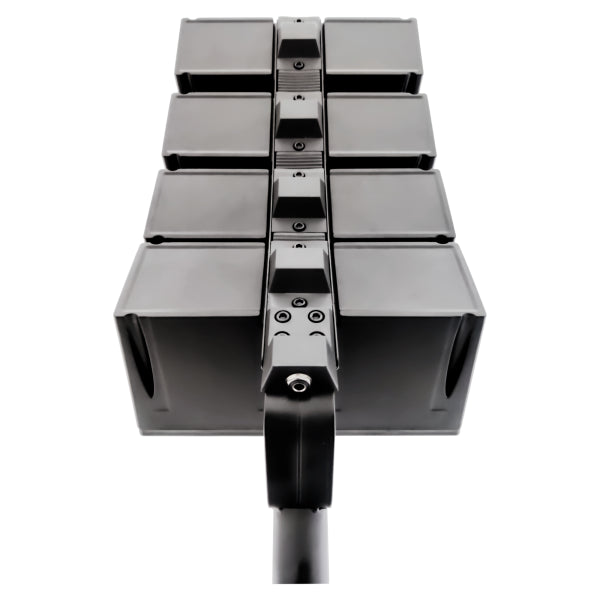

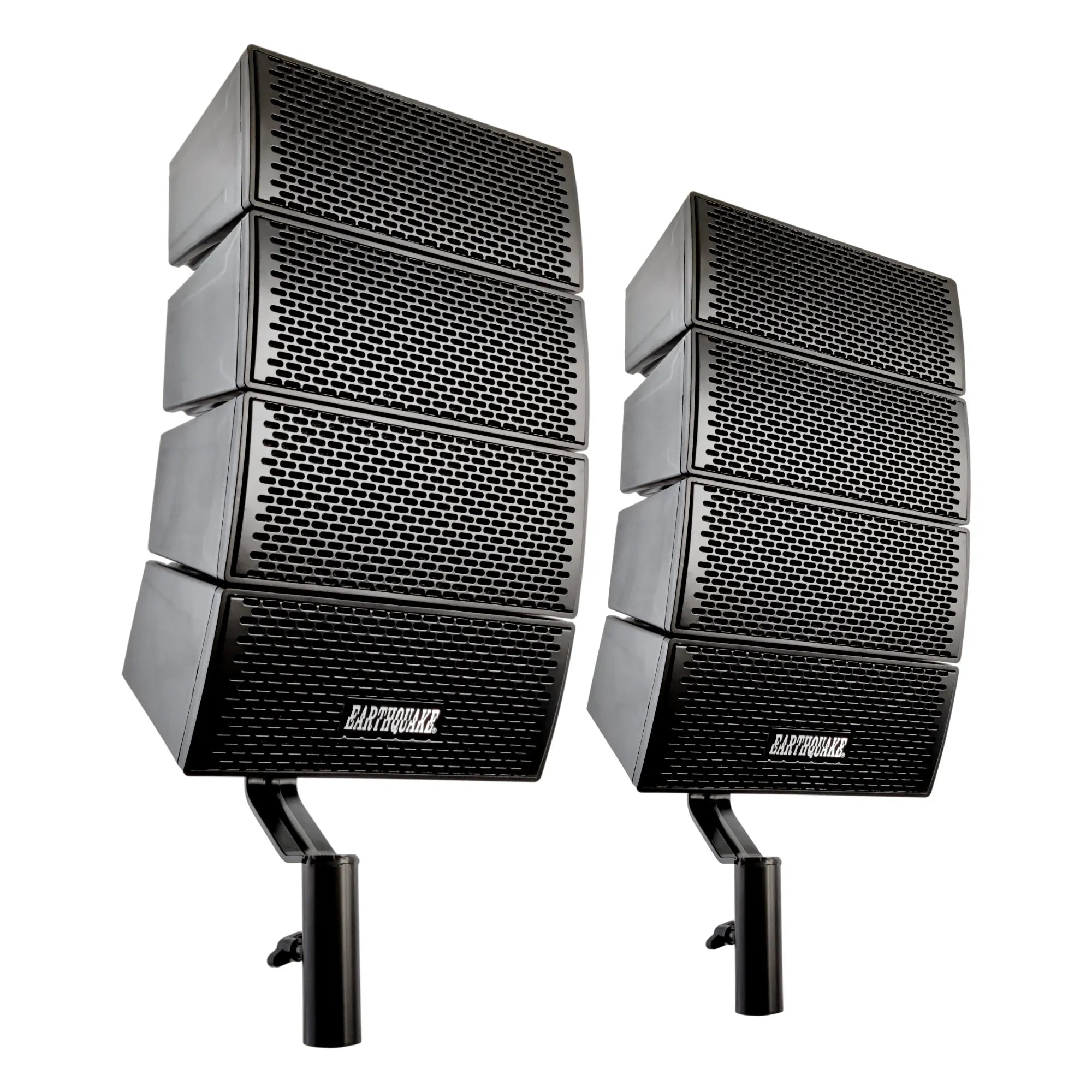

Earthquake’s DJ-Quake series was known as a revolutionary portable line array system with performance that matched perfectly for bars, restaurants, DJs, houses of worship, and most other medium-sized venues. The DJ-Array Gen2 array speaker further builds off the well-known success of the DJ-Quake series now with the internal wiring built right into the mounting bracket. It features user-friendly male and female contact terminals, making setup and breakdown easy for any skill level.

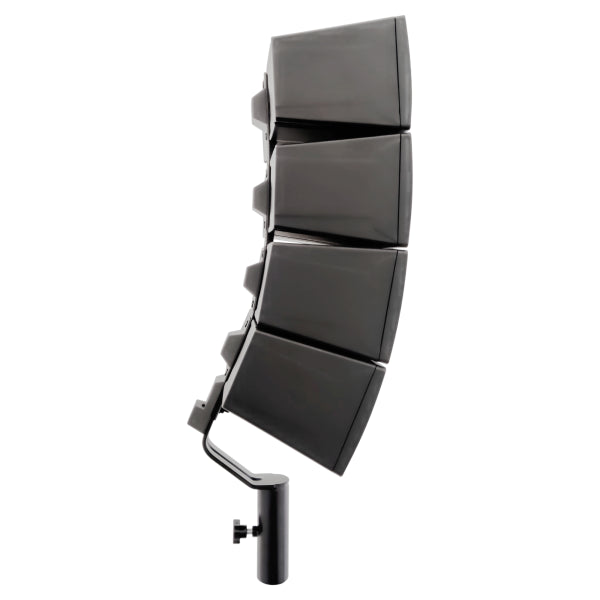

The DJ-Array Gen 2 packs a serious punch capable of dispersing optimized sound over long distances thanks to its advanced array design that produces a clear, punchy sound to the back of the room. Designed to be foolproof with no compromise in performance, the DJ-Array Gen 2 speaker is an excellent solution for virtually any situation where high-quality sound reinforcement is needed. Whether used in a portable on-the-go system or permanent audio fixture, average enthusiasts to the everyday audio professional will love the versatility of the Earthquake DJ-Array Gen 2.
Applications:
Live music
DJ/PA systems
Karaoke
Schools
Halls
Places of worship
Home gyms
Fitness centers
Notice

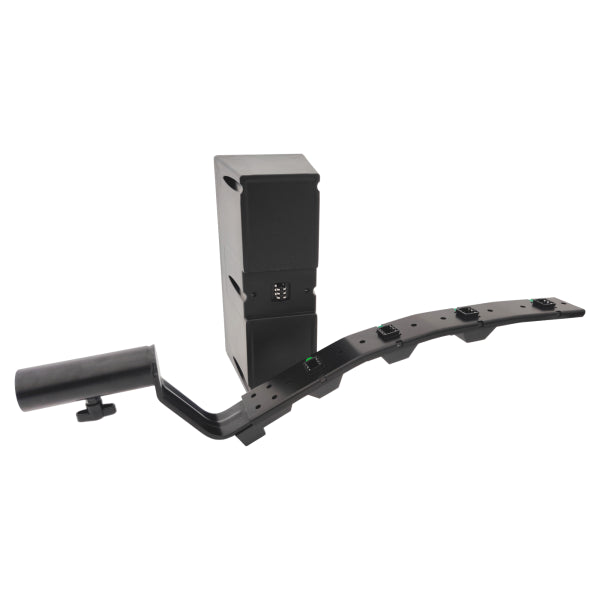

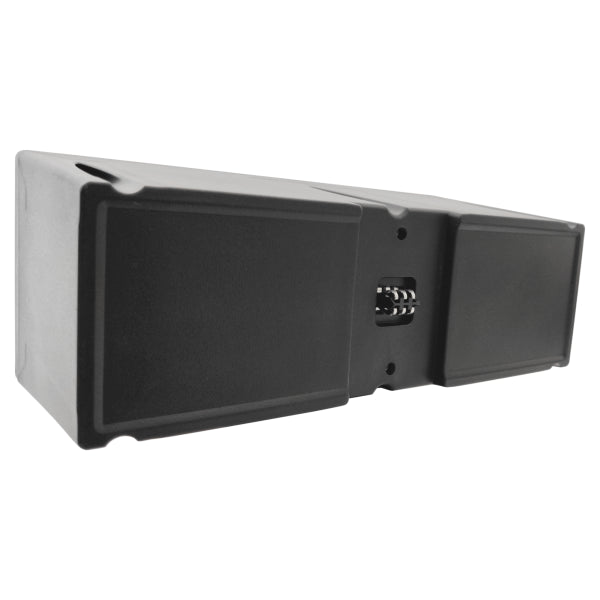

When assembling the DJ-ARRAY GEN2, please ensure that the green dots on the back of each array module match the green dots on the mounting bracket. Failure to do so will cause the array module to operate out of phase, and the product will not perform as intended.
The left array (BOX L) goes with the left bracket (BOX A)
The right array (BOX R) goes with the right bracket (BOX B
Specifications
Power Handling:50W RMS per array/channel100W MAX per array/channel
High Pass Filter: 12dB/Oct @ 120Hz–20kHz
Sensitivity: 98dB (1w/1m)
Impedance: 4-Ohm
1 in. voice coil per array/channel)
Constant coverage of 120° vertical and 90° horizontal
