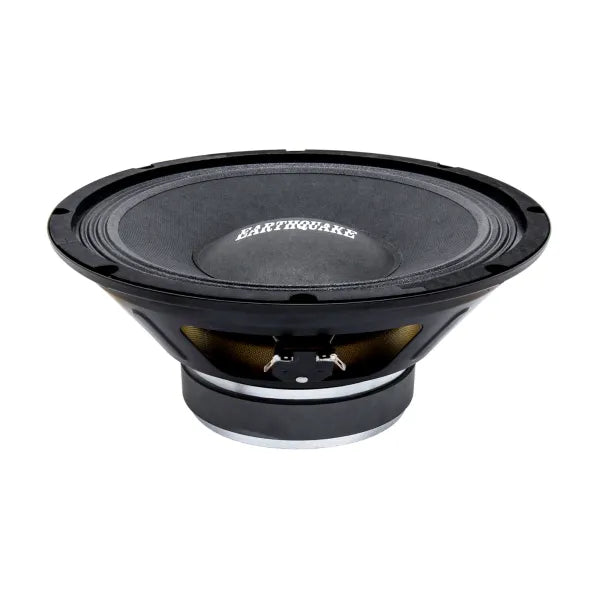

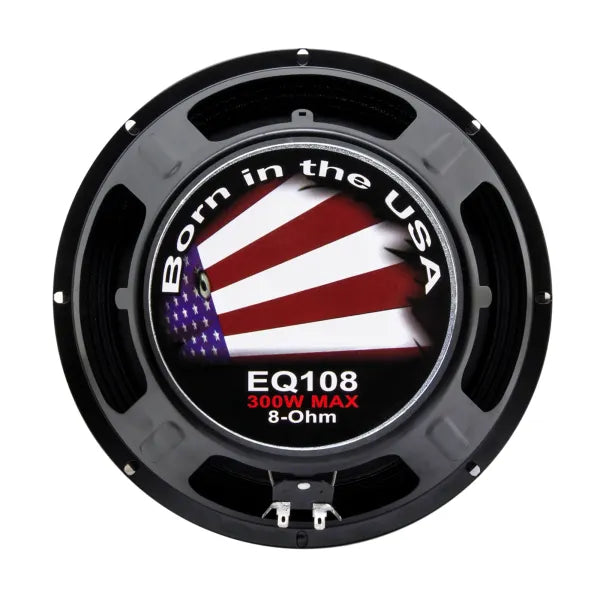

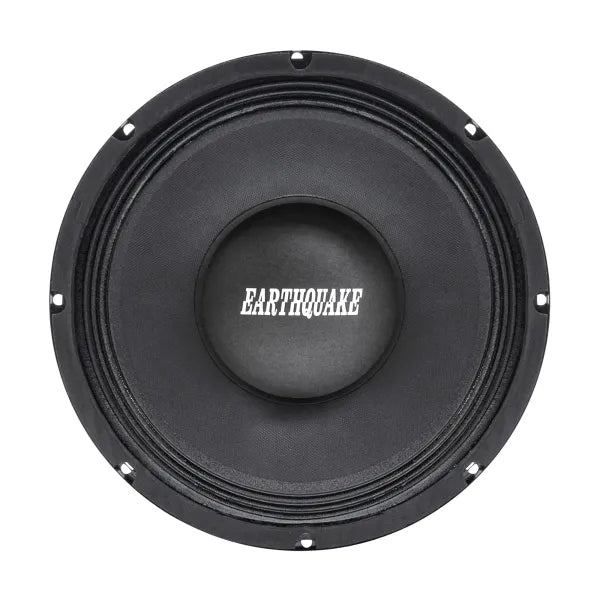

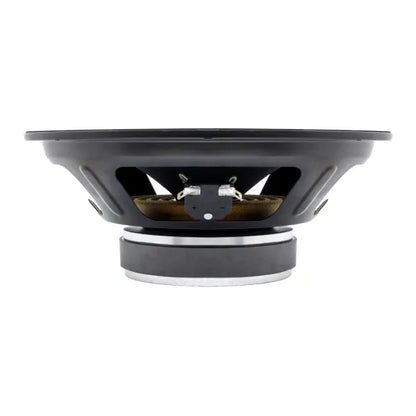

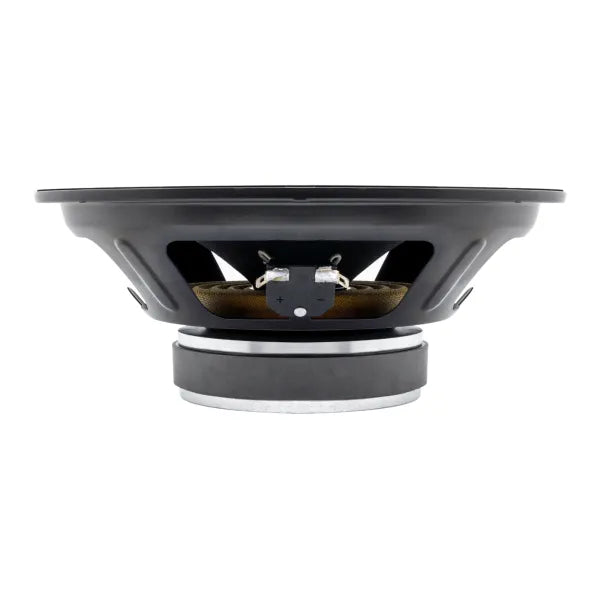

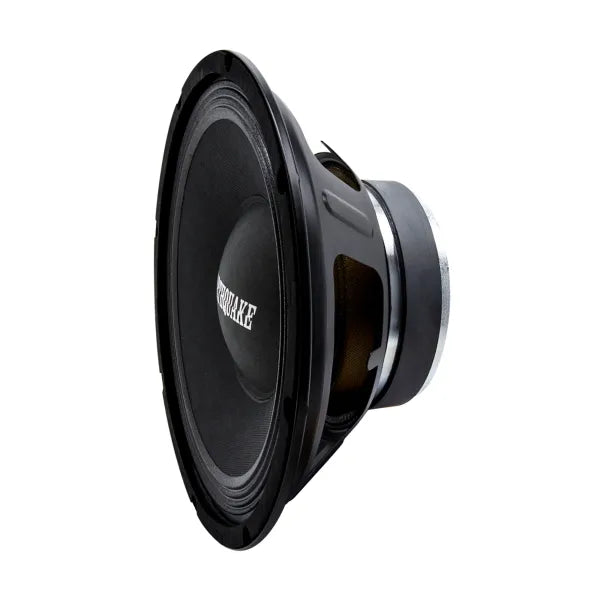

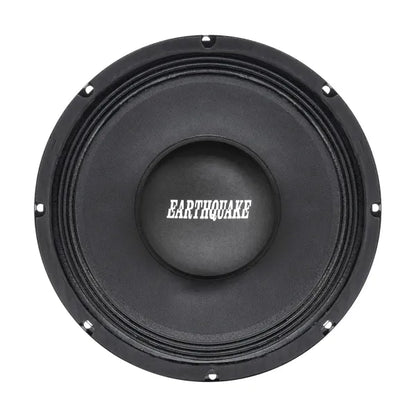

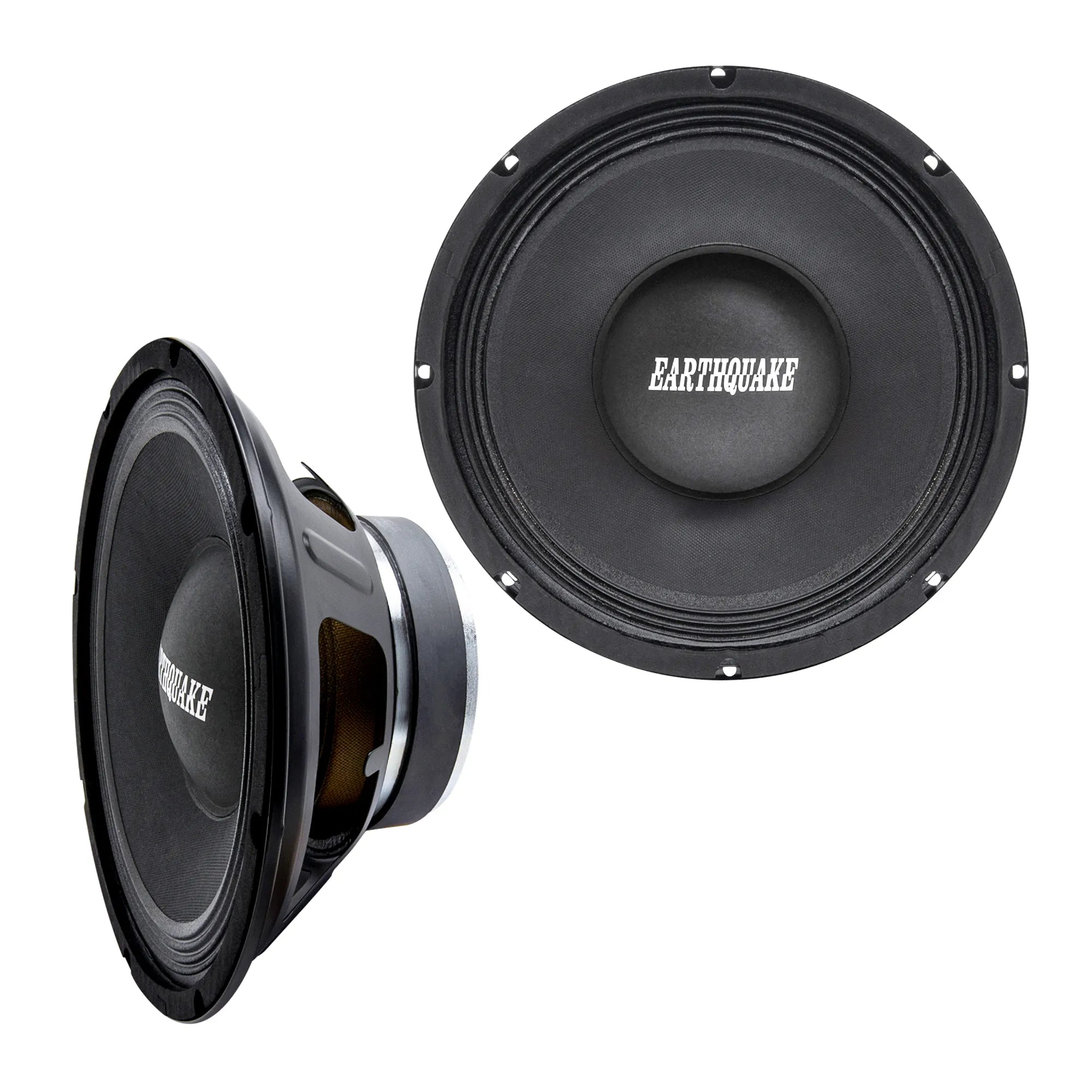

EQ10-8 (PAIR) Cloth Surround Speaker

PR-EQ108

$163.00
$163.00 $298.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

The Earthquake EQ line of maximum musical output drivers is specifically designed to provide smooth, low distortion, midrange/midbass output for the highest quality sound reinforcement applications. Because of their relatively high resonance and very low Qts value, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free resonance.

  • 10″ (254mm) midrange/midbass driver offers maximum musical output and efficiency
  • 2.5″ (63.5mm) edge-wound aluminum bobbin voice coil with Kapton® polyimide former
  • Long-lasting non-pressed paper cone for reduced break-up
  • Produces natural tones at high levels with low distortion
  • Solid composition paper dust cap
  • Heavy-duty ferrite magnet with extended core
  • Multi-roll cloth surround
  • Black stamped steel basket
  • Bumped back plate
  • Power Handling: 300W Max
  • Frequency response: 47Hz–10kHz
  • Impedance: 8 Ohm
  • Sensitivity: 94dB
  • Resonance:  46Hz

Parameters

  • Resonant Frequency (Fs): 46Hz
  • DC Resistance (Re): 6.8 Ohms
  • Coil Inductance at Fs (Lces): 0.857 mH
  • Mechanical Q (Qms): 6.04
  • Electromagnetic Q (Qes): 0.43
  • Total Q (Qts): 0.40
  • Compliance Equivilant Volume (Vas): 60.1 Liters / 2.1 cu. ft.
  • Mechanical Compliance of Suspension (Cms): 0.18mm/N
  • BL Product (BL): 13.6 T-M
  • Diaphram Mass (Mmd): 35.9 grams
  • Surface Area of Cone (Sd): 0.0380 sqM
  • Maximum Linear Excursion (Xmax): 4.0mm
