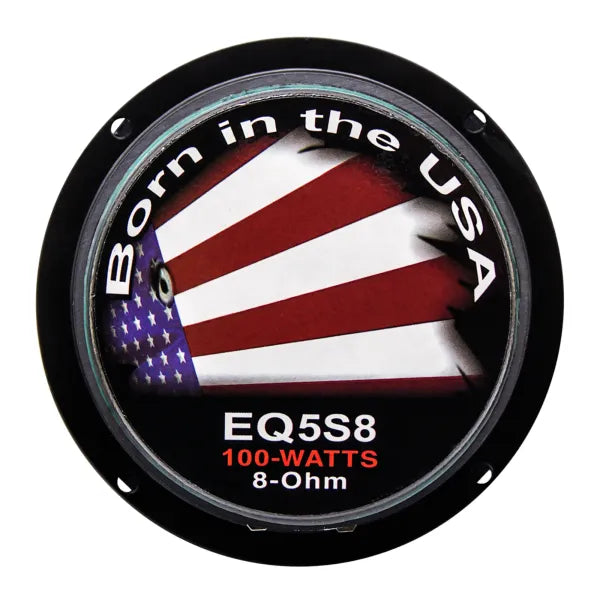

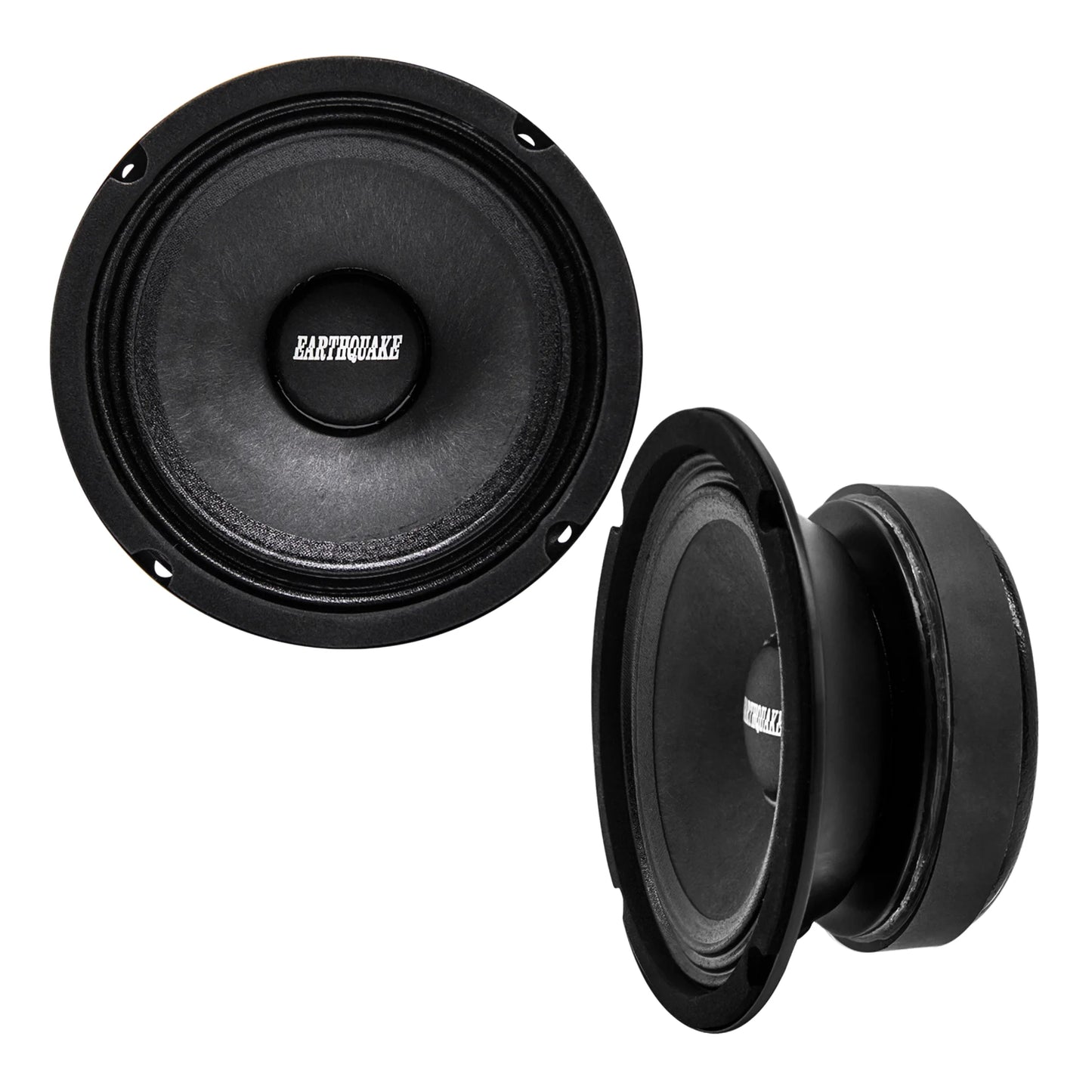

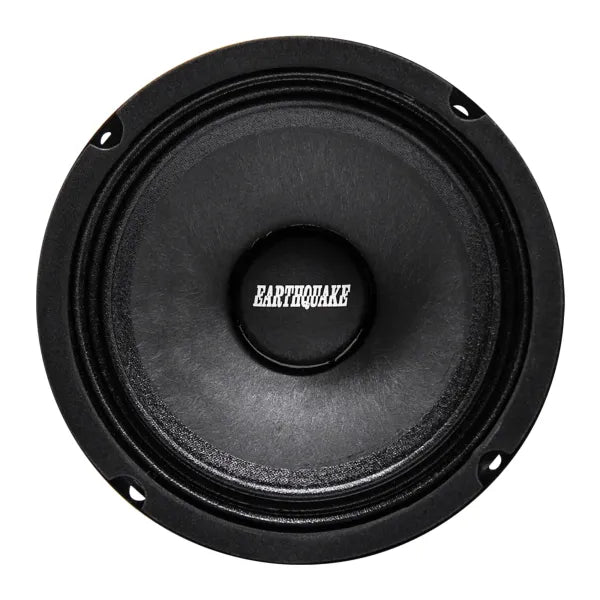

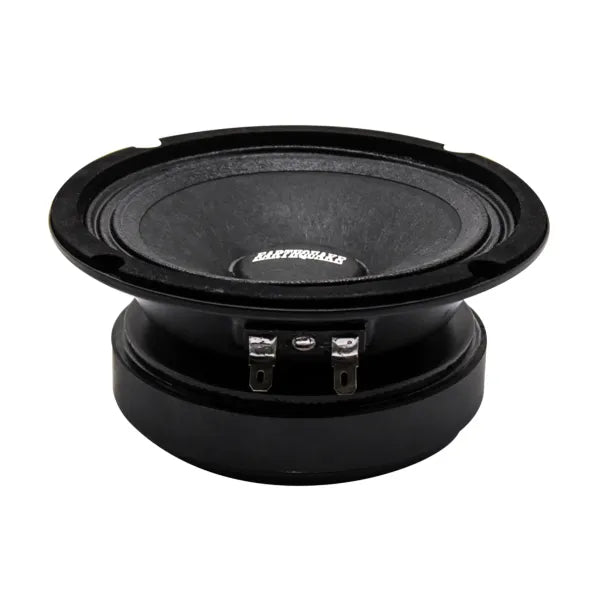

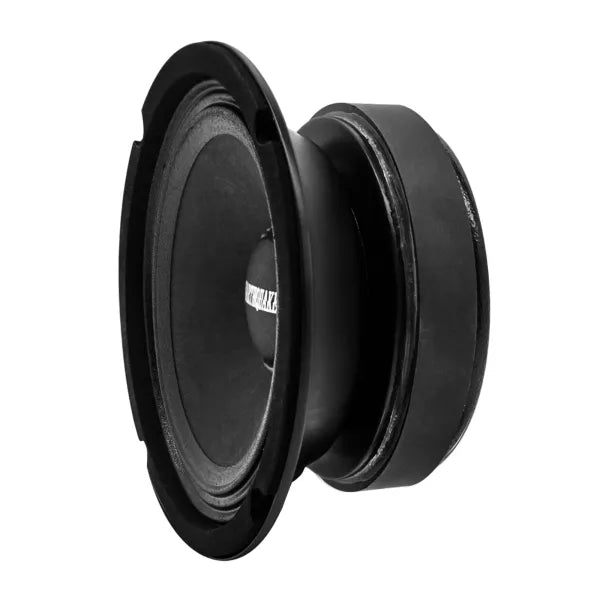

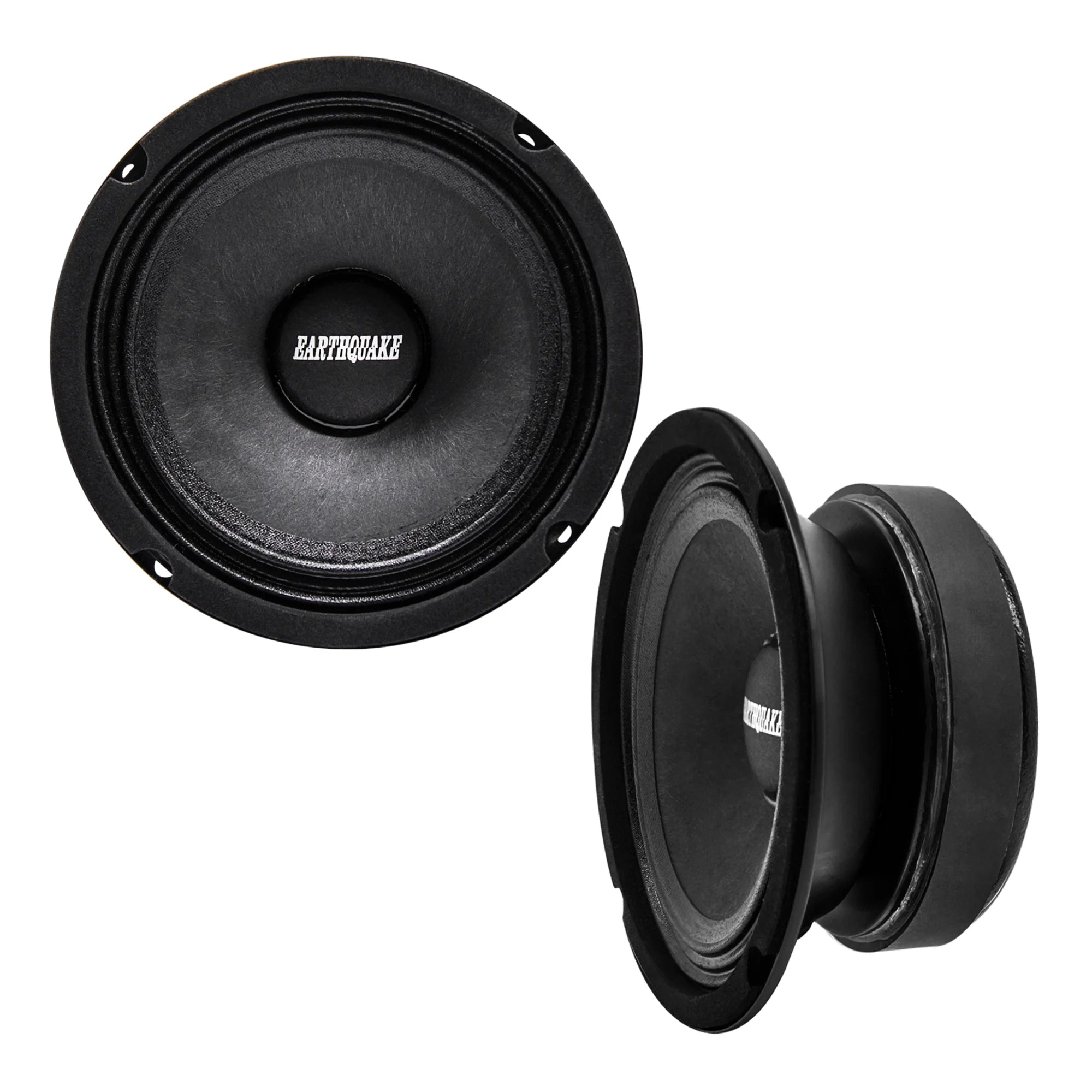

The Earthquake EQ5S8 Cloth Surround Speaker is part of the EQ line of maximum musical output drivers. These drivers were specifically designed to provide smooth, low distortion midrange/midbass output for the highest-quality sound reinforcement applications. Because of their relatively high resonance and very low Qts value, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free resonance.

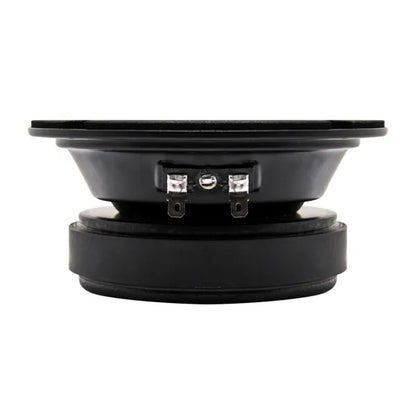

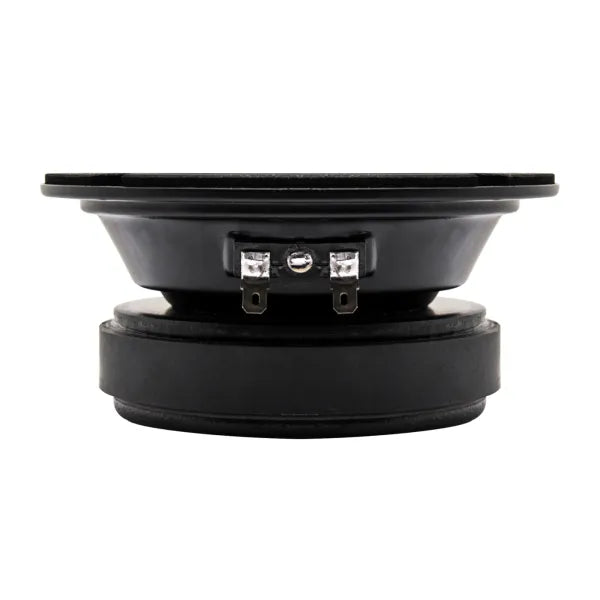

The EQ5S8 driver is fitted with a sealed back basket that acts like a protective barrier to eliminate interference from other components that may be loaded into the same enclosure. This feature allows the speaker to maintain its integrity and performance, resulting in high-fidelity sound preservation and reduced distortion.
Specifications
Power Handling: 100W Max
Frequency response: 300Hzā14kHz
Voice Coil Diameter: 1.18 in. (30 mm)
Impedance (ohms): 8
Sensitivity: 96dB 1W/1M
Resonance: 503Hz
Parameters
Resonant Frequency (Fo): 503Hz
DC Resistance (Re): 6.5 ohms
Coil Inductance (Le): 1.257 mH
Mechanical Q (Qms): 11.286
Electromagnetic Q (Qes): 1.635
Total Q (Qts): 1.428
Compliance Equivalent Vol (Vas): 0.165 L / 0.006 cu. ft.
Mechanical Compliance of Suspension (Cms): 0.018 mm/N
BL Product (BL): 8.434 T-M
Diaphragm Mass (Mmd): 5.236 grams
Surface Area of Cone (Sd): 0.0082 sqM
Maximum Linear Excursion (Xmax): 2 mm
Dimensions
Overall Dimensions: 5 in. (127 mm) x 2.36 in. (60 mm)
