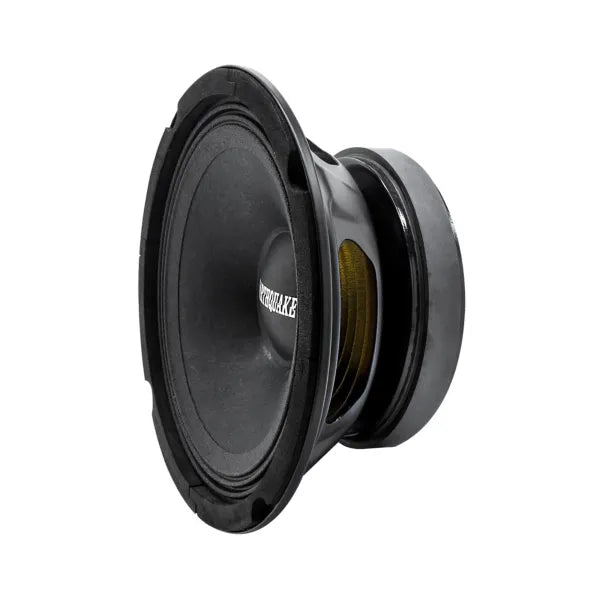

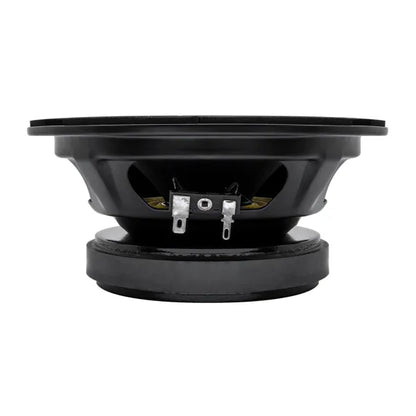

The Earthquake EQ line of maximum musical output drivers is specifically designed to provide smooth, low distortion, midrange/midbass output for the highest quality sound reinforcement applications. Because of their relatively high resonance and very low Qts value, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free resonance.
Specifications
Power Rating: 200W Max
Frequency Response: 112Hz–10kHz
Impedance: 8 Ohm
Sensitivity: 96dB
Resonance: 112.4Hz
Parameters
Resonant Frequency (fo): 112.375Hz ±15%
DC resistance (Re): 6.8 Ohms
Coil Inductance (Le): 396.050 mH @ 1kHz
Mechanical Q (Qms): 4.999
Electromagnetic Q (Qes): 0.958
Total Q (Qts): 0.804
Compliance Equivalent Volume (Vas): 4.122 L / 0.14 cu. ft.
Mechanical Compliance of Suspension (Cms): 159.797 mm/N
