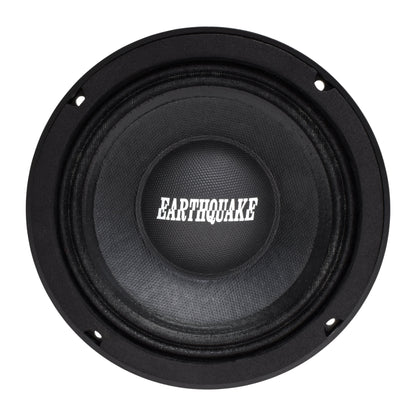

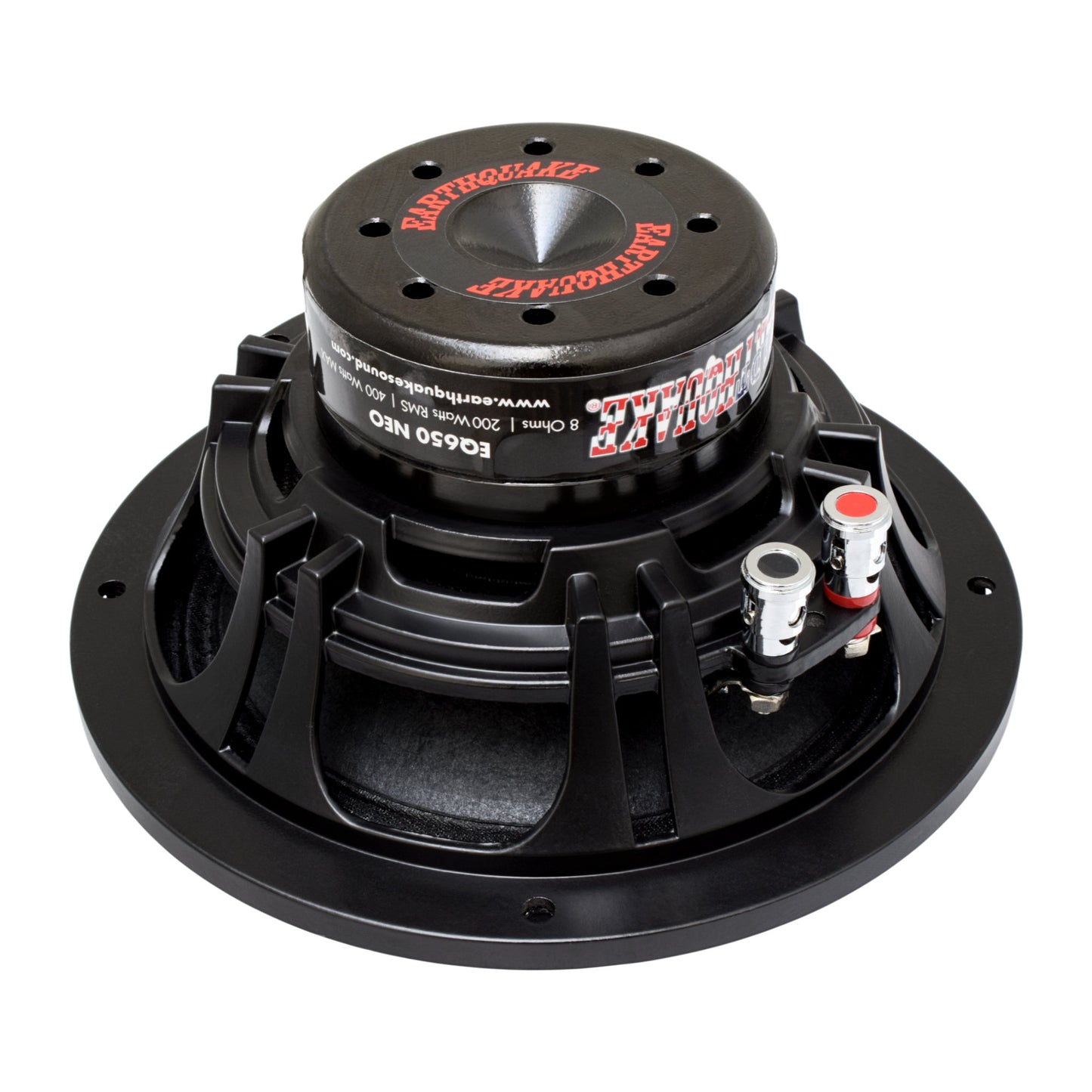

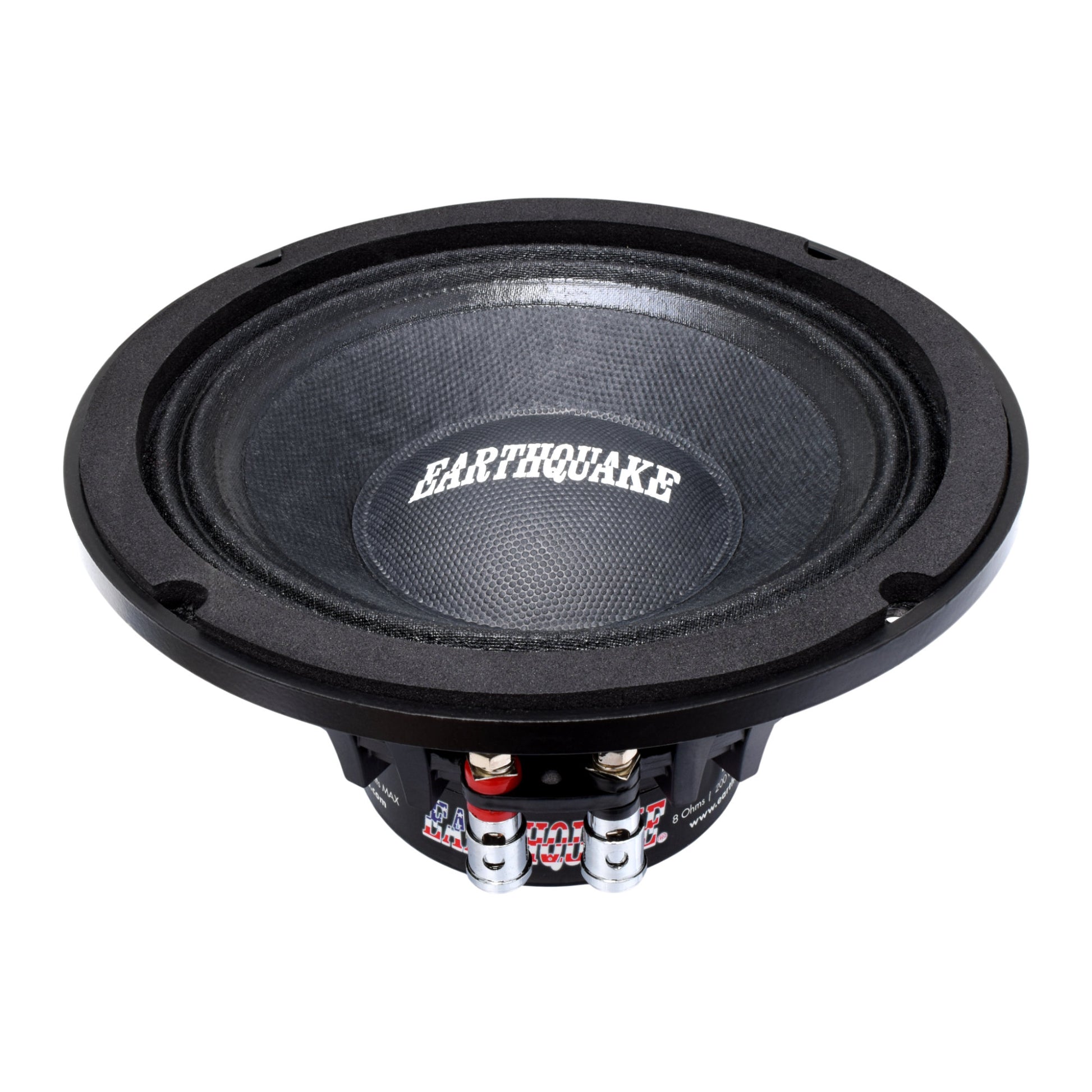

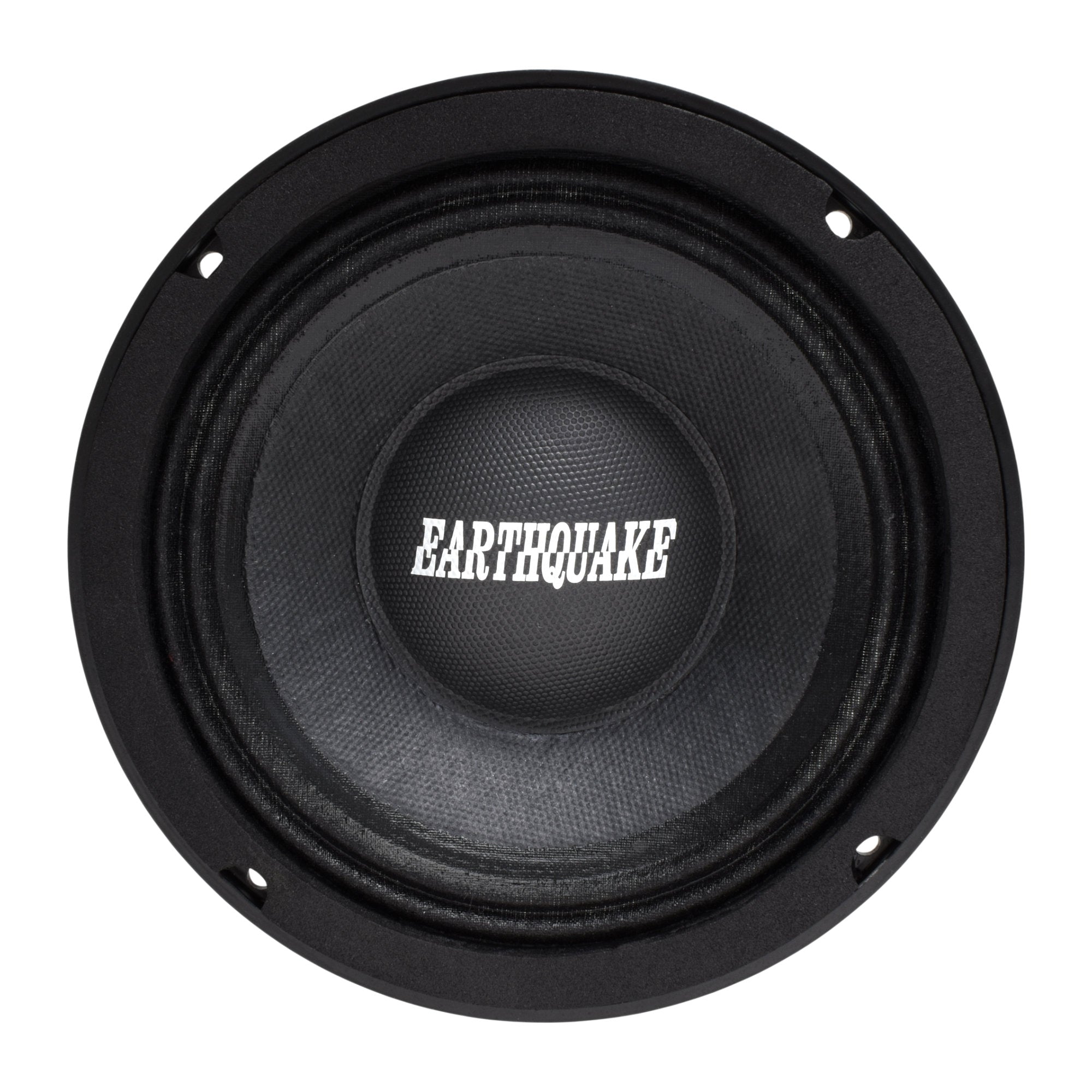

EQ650 Neo Cloth Speaker

EQ650 NEO

$159.99
$159.99 $175.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

Power and reliability for the most demanding situations; the 6.5 inch Earthquake Sound EQ650 NEO cloth speaker series of maximum musical output drivers are specifically designed to provide a smooth and low distortion midrange/midbass output for the highest quality sound reinforcement applications. Because of their relatively high resonance and very low Qts values, the EQ NEO series can be mounted in small enclosures while maintaining a smooth, peak-free response. As the name suggests, this series features a smaller yet powerful neodymium motor that increases efficiency and decreases their overall weight.

  • 6.5″ (165mm) midrange/midbass driver
  • Powerful multi-vented neodymium motor
  • Maximum musical output and efficiency
  • 2″ (50.5mm) copper voice coil construction
  • Long-lasting non-pressed paper cone for reduced break-up
  • Multi-roll cloth surround
  • Black die-cast aluminum basket
  • Spring-loaded wire terminals
  • Produces natural tones at high levels with low distortion
  • Size: 6.5″ (165mm)
  • Power Handling: 200 Watts RMS / 400 Watts MAX
  • 8-Ohm
  • Frequency Response: 95Hz–8kHz
  • Sensitivity: 95dB 2V/1M
  • Resonance: 95Hz
  • Overall Diameter: 6.85″ (174mm)
  • Overall Depth: 3.30″ (84mm)
  • Cutout Diameter: 5.82″ (148mm)
  • Mounting Depth: 3.03″ (77mm)
  • Magnet Diameter: 1.88″ (48mm)
  • Weight: 2.84lbs (1.29kgs)

Parameters

  • Fo (Hz): 95Hz±15%
  • Revc (Ohm): 3.600
  • Qms: 2.058
  • Qes: 0.341
  • Qts: 0.283
  • Vas (Ltr): 6.692
  • Cms (u M/N): 229.995
  • Mmd (m Kg): 11.000
  • Mms (g): 11.985
  • BL (TM): 8.925
  • No: 1.670%
  • Sd (msqM): 15.314
