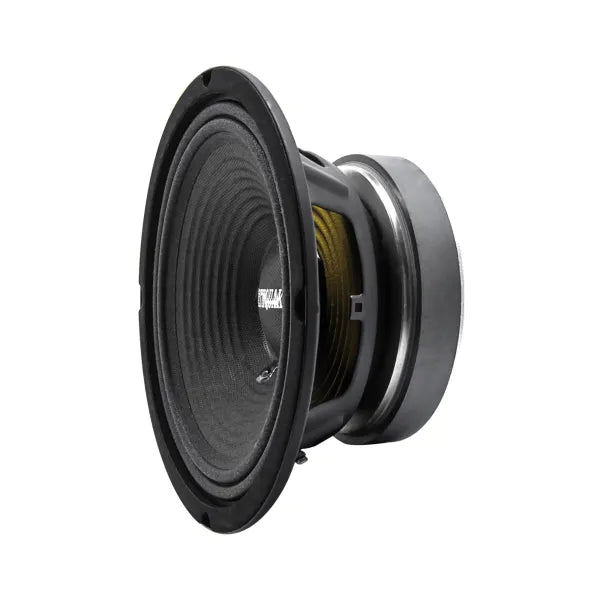

The Earthquake EQ line of maximum musical output drivers is specifically designed to provide smooth, low distortion, midrange/midbass output for the highest quality sound reinforcement applications. Because of their relatively high resonance and very low Qts value, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free resonance.
Specifications
Power Handling: 250W Max
Frequency response: 86Hz–10kHz
Impedance: 8 Ohm
Sensitivity: 94dB
Resonance: 86.6Hz
Parameters
Resonant Frequency (Fo): 86.6Hz ±15%
DC Resistance (Re): 7.2 Ohms
Coil Inductance (Le): 463.207 mH
Mechanical Q (Qms): 8.067
Electromagnetic Q (Qes): 0.454
Total Q (Qts): 0.429
Compliance Equivalent Vol (Vas): 11.696 L / 0.41 cu. ft.
Mechanical Compliance of Suspension (Cms): 175.843 mm/N
BL Product (BL): 12.884 T-m
Diaphragm Mass (Mmd): 17.399 grams
Maximum Linear Excursion (Xmax): 3.2mm
Surface Area of Cone (Sd): 216.424 sqM
Dimensions
Overall Diameter: 8.25″ (209.5mm)
Cutout Diameter: 7.08″ (180mm)
Mounting Hole Diameter: 0.19″ x 0.35″” (5mm x 9mm)
