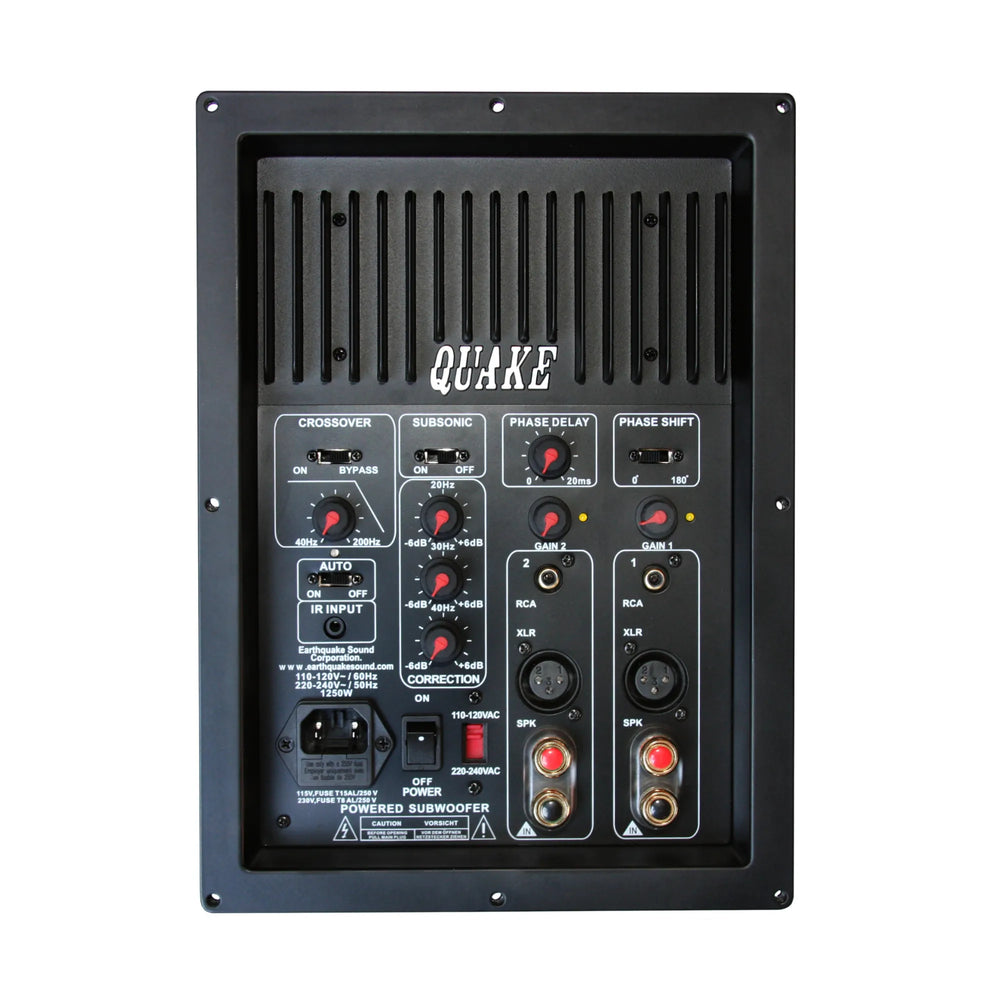

IQ-1500 Plate Amplifier

SKU:IQ-1500

$799.99

$799.99 $899.99

Sale Sold out

Shipping calculated at checkout.

In stock

Quantity

Description

The IQ-1500 plate amplifier is a part of a new generation of plate-amps for active subwoofers. The IQ series features advanced technology resulting in higher power, greater flexibility, and ease of use. IQ amplifiers are built upon Earthquakes unique class J circuitry with Interface Velocity Controlled Output and Look-Ahead technology. This technology enables high power and continuous operation in demanding 2 ohm impedances.

IQ amplifiers are equipped with DSP that contains both equalization, phase, and time correction. Overdrive and ODL technology ensures that all power resources are used safely and optimally. For the demanding and uncompromising subwoofer designer Earthquake IQ series amplifiers represent the ultimate in plate amps.

Product Features

Earthquake Class J circuitry
XLR/RCA and high level input connections
20Hz, 30Hz, and 40Hz room equalization with 12dB range and boost
Adjustable 24dB lowpass filter from 40Hz–200Hz with bypass
25Hz, 12dB/Oct switchable subsonic filter
Full and advanced room correction
IR input and remote control with volume control
Auto signal sensing on/off switch
Protection Circuitry: Short circuit, Open circuit, RF burnout, Over temp, Turn on/off transient protection, DC protection, Limiter circuitry
Phase shift
Phase Delay
Custom flush mount design
Dual gains internally mixed
Channel and power status LEDs
DC turn ON/OFF
110V/220V AC selector

Specifications

Power Output: 3000 watts dynamic effect pinknoise, 1 x 1500 watts RMS @ 2 Ohms Mono (1% distortion), 1 x 1100 watts RMS @ 4 Ohms Mono (1% distortion), 1 x 700 watts RMS @ 8 Ohms Mono ( 1% distortion)
Frequency Response: 10–2kHz
Load Impedance: 2 Ohm or greater
Total Harmonic Distortion: <0.08% (1W/4)
Slew Rate: 55V/microsecond
Signal to Noise Ratio: > 106dB (balanced) 105dB (unbalanced) @ rated power
