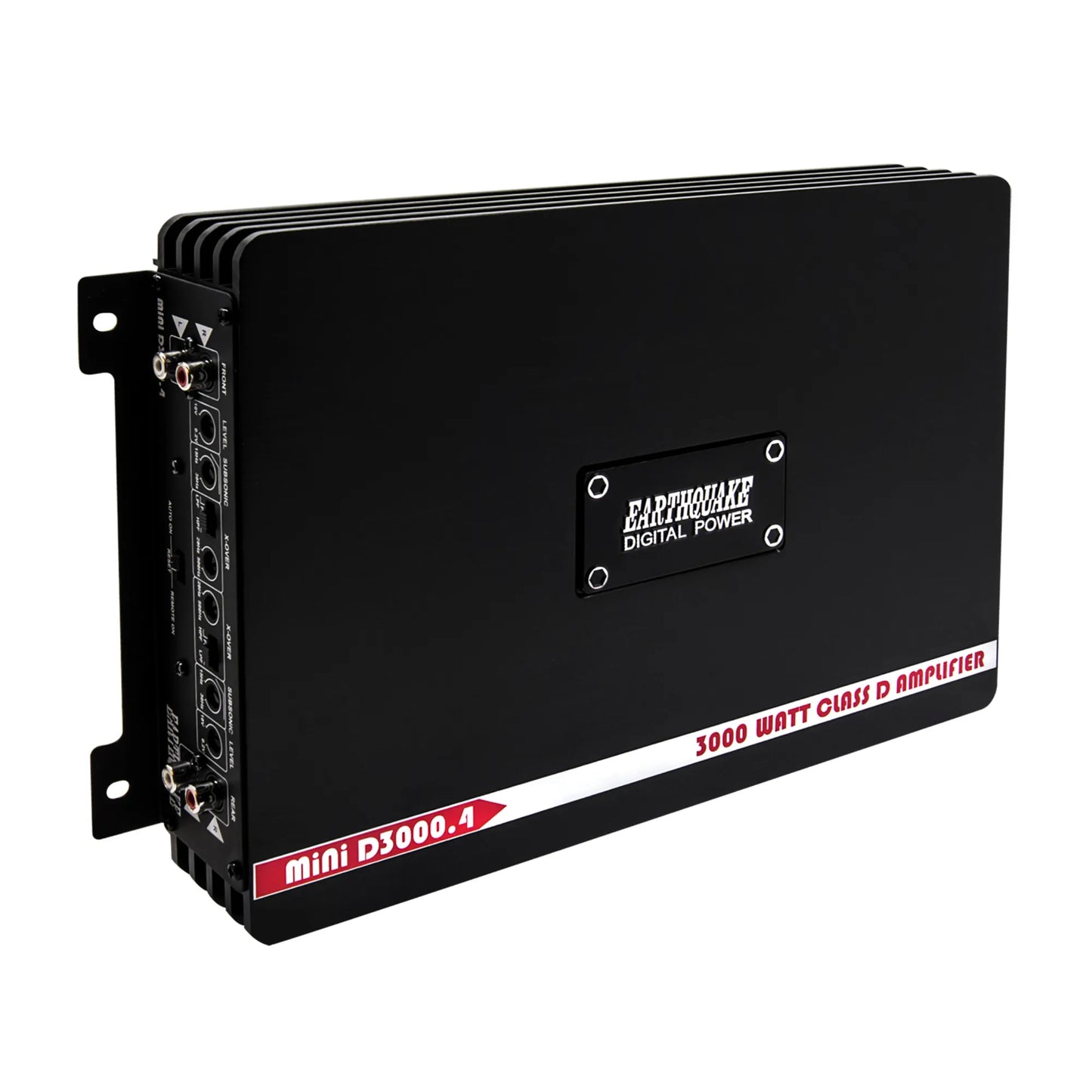

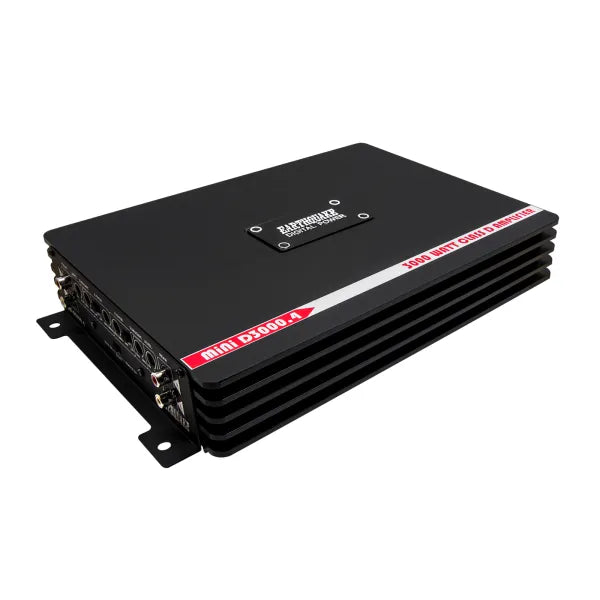

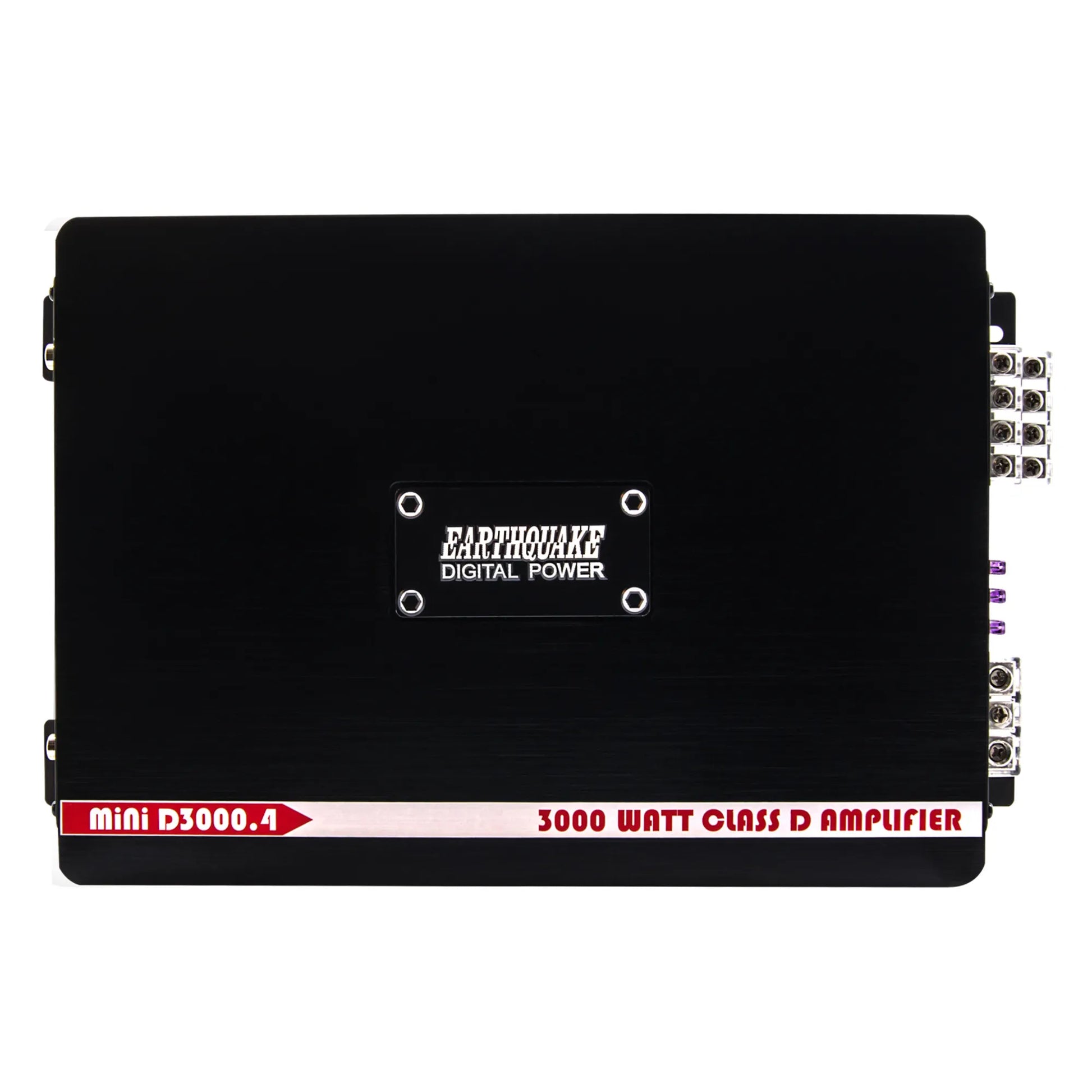

MiNi D3000.4 1st Gen Amplifier

SKU:Mini D3000.4

$200.00

$200.00 $399.00

Sale Sold out

Shipping calculated at checkout.

In stock

Quantity

Description

The Earthquake MiNi D3000.4 is a 4-channel amplifier that merges two MiNi D1500.2 amplifiers into one unit, resulting in one of the most power-dense 4-channel amplifiers on the market today. It provides 180W RMS per channel and handles demanding speakers with exceptional performance. The amplifier rivals high-end home audio quality, setting a new benchmark with advanced features and design. Lead engineer Joseph Sahyoun aimed to revolutionize car amplifiers by creating smaller, more robust, and smarter units, overcoming technical challenges to enhance efficiency and intelligence in design.

Product Features

Clip suppression technology avoids hard clipping, so the sound will not become harsh in the event of excessive input.
Fan-free operation negates the need for noisy fans. Even continuously driven 2db into clip, the Mini D will not overheat.
ST or 4CH input switch for using the amp in either 2-channel or 4-channel operation.
Auto ON signal sensing allows the amplifier to wake up on signal and fall asleep when not in use.
User-selectable high & low pass crossovers with variable crossover frequency.
High and low pass multiplier buttons offer users great wiring flexibility.
The MARS status LED lights up when an anomaly is detected, the unit is initially powered up, and it is in self-analyzing mode.

Specifications

Number of Channels: 4
Class: Class D
Max Power: 3000 Watts
RMS Power:4 x 120W @ 4-Ohm4 x 200W @ 2-Ohm2 x 300W @ 4-Ohm bridged
Gain Level Control: 0.2V–6V RMS
Channel Separation: > 90dB
THD+N: < 1%
Crossover Frequencies:High Pass Filter: 20Hz–400Hzx10 Button Engaged: 200Hz–4kHzLow Pass Filter: 50Hz–500Hzx10 Button Engaged: 500Hz–5kHz
Signal-to-Noise Ratio: 98dB
Fuse Rating: 2 x 40A (included)

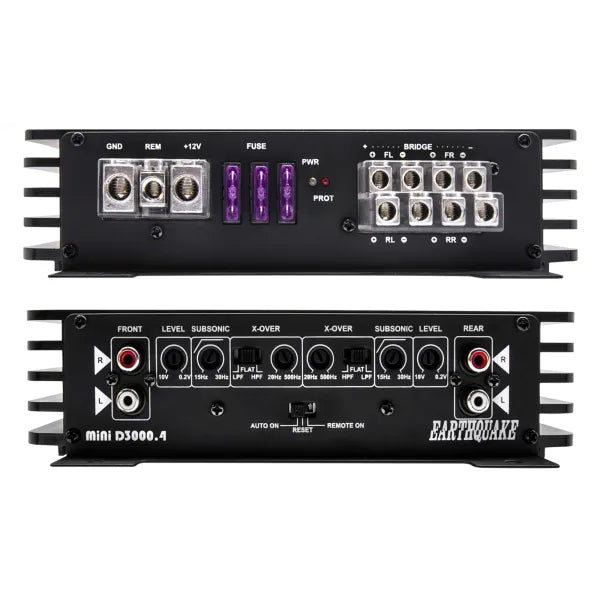

F and R RCA Line Inputs
HPF/Flat/BPF Filter Switch
Power and protection LED indicators
