MQB-HTK2 Bass Shaker Kit
SKU:MQB-HTK2
Couldn't load pickup availability
Share
Description
Tactile transducers, called “bass shakers,” are designed to transmit subsonic bass frequencies that can be felt and heard. By mounting the device on a couch or chair, the vibrations produced can be transferred to the body, providing a tactile sound experience. In some cases, tactile transducers can even replace traditional subwoofers, especially when headphones may be necessary to avoid disturbing others. Tactile transducers can be connected to the LFE output, which is also used by conventional subwoofers. These devices are powered by an amplifier, such as the Class J XJ-300ST, that provides a powerful and precise low-frequency effect. The tactile transducer seamlessly integrates and enhances the audio experience when paired with an existing subwoofer.

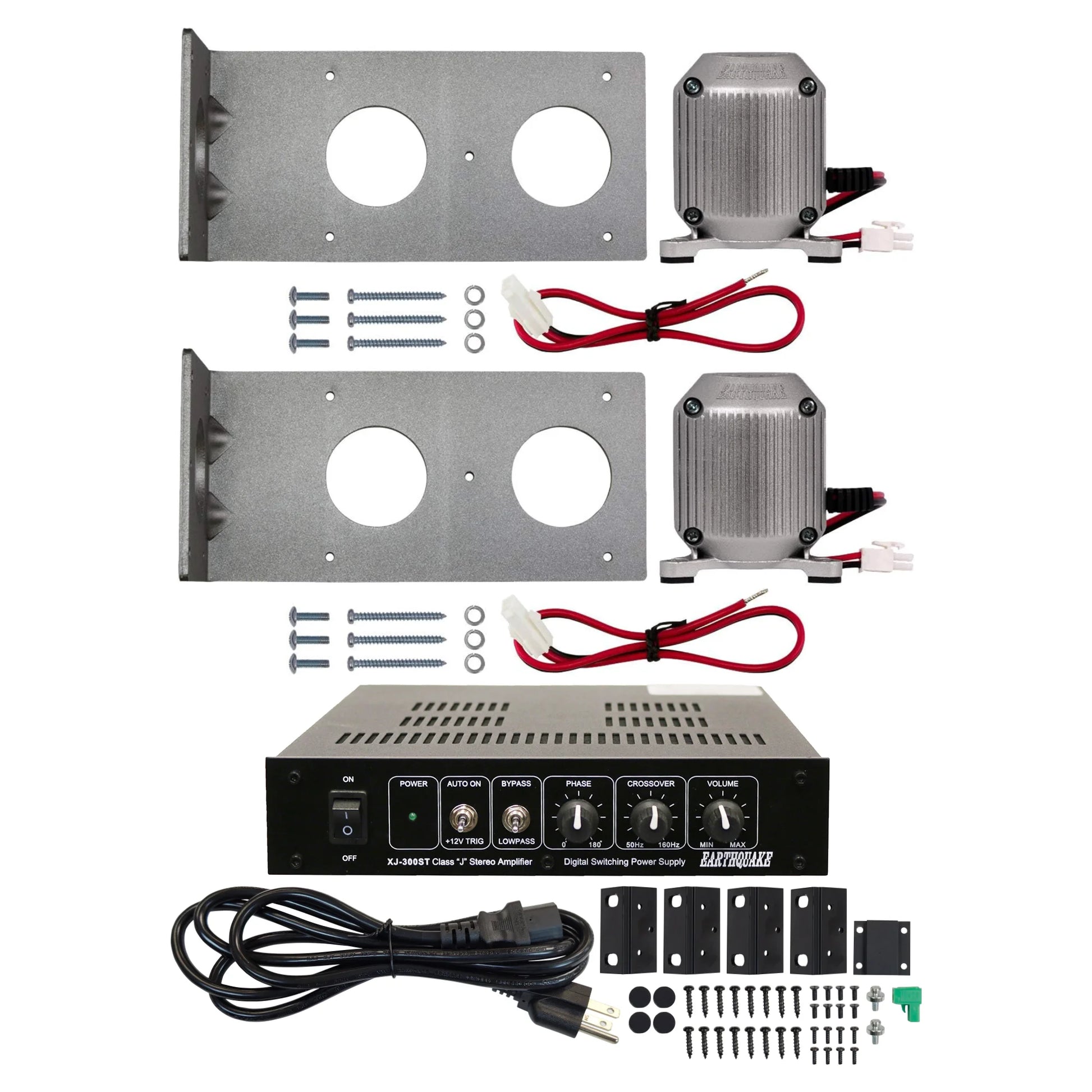

Note: The MQB-HTK2 kit comes with one XJ-300ST amplifier and two MQB-1 Tactile Transducers,
Product Features

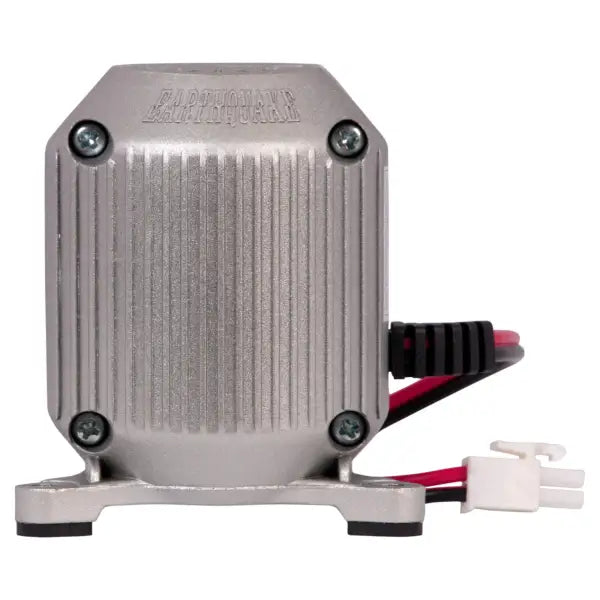

MQB-1 Tactile Transducer
- Tactile performance down to 15Hz
- Enhanced low frequency extension for home theater and AR/VR
- Inverted premium neodymium magnets with thermal protection circuitry
- Nearly indestructible and maintenance-free with only one moving part
- No delayed sound effects
- Tactile output 100% of the input signal
- Flat wire aluminum voice coil
- Rugged cast aluminum heat sink
- Thermal protection
- Enhanced LFE
- High Impact Energy
- Large Tactile Power
- No cycles per life failures
- 1.5″ excursion @ 22Hz

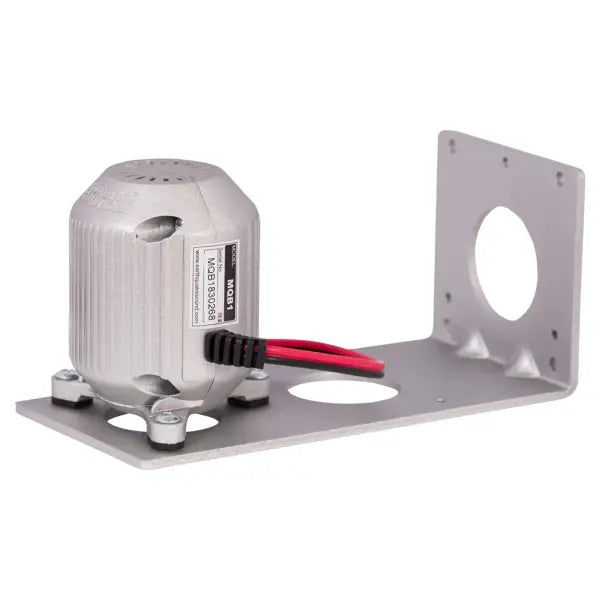

- Universal mounting bracket and hardware included
- Protected by multiple patents

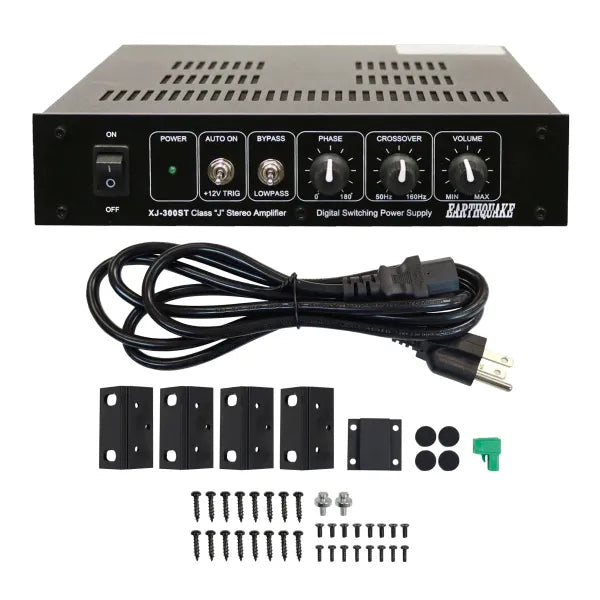

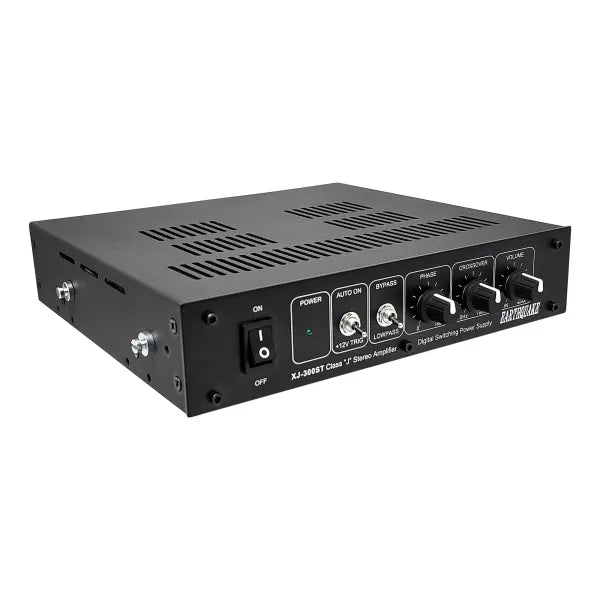

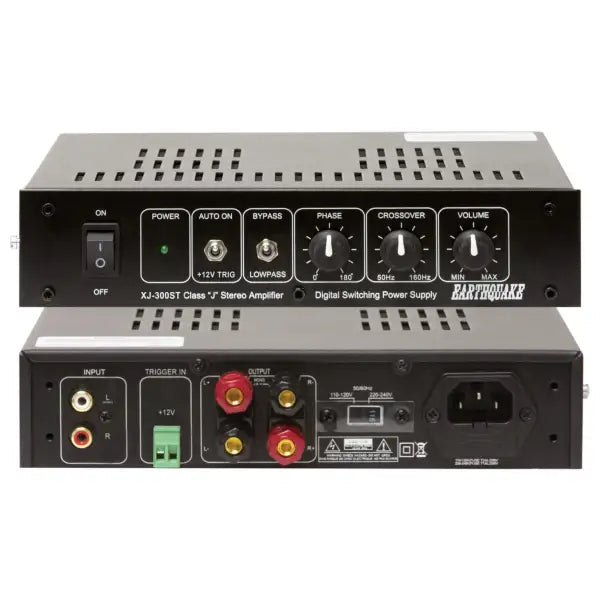

XJ-300ST Amplifier
- Class J stereo modular design provides cool running power
- Compact and unimposing size
- Numerous application possibilities with customizable channel setup
- Allows for MONO bridged, 2-channel, and 2.1-channel wiring configuration
Proprietary interlocking design allows for multi-channel audio systems - 1U rack space tall with half-rack width chassis
- Signal sensing toggle switch with +12V trigger input
- Selective variable crossover
- Bypass and lowpass toggle switch turns crossover on or off
- 0–180° phase adjustment
- 110V/220V AC selector
- RCA inputs
- Volume control

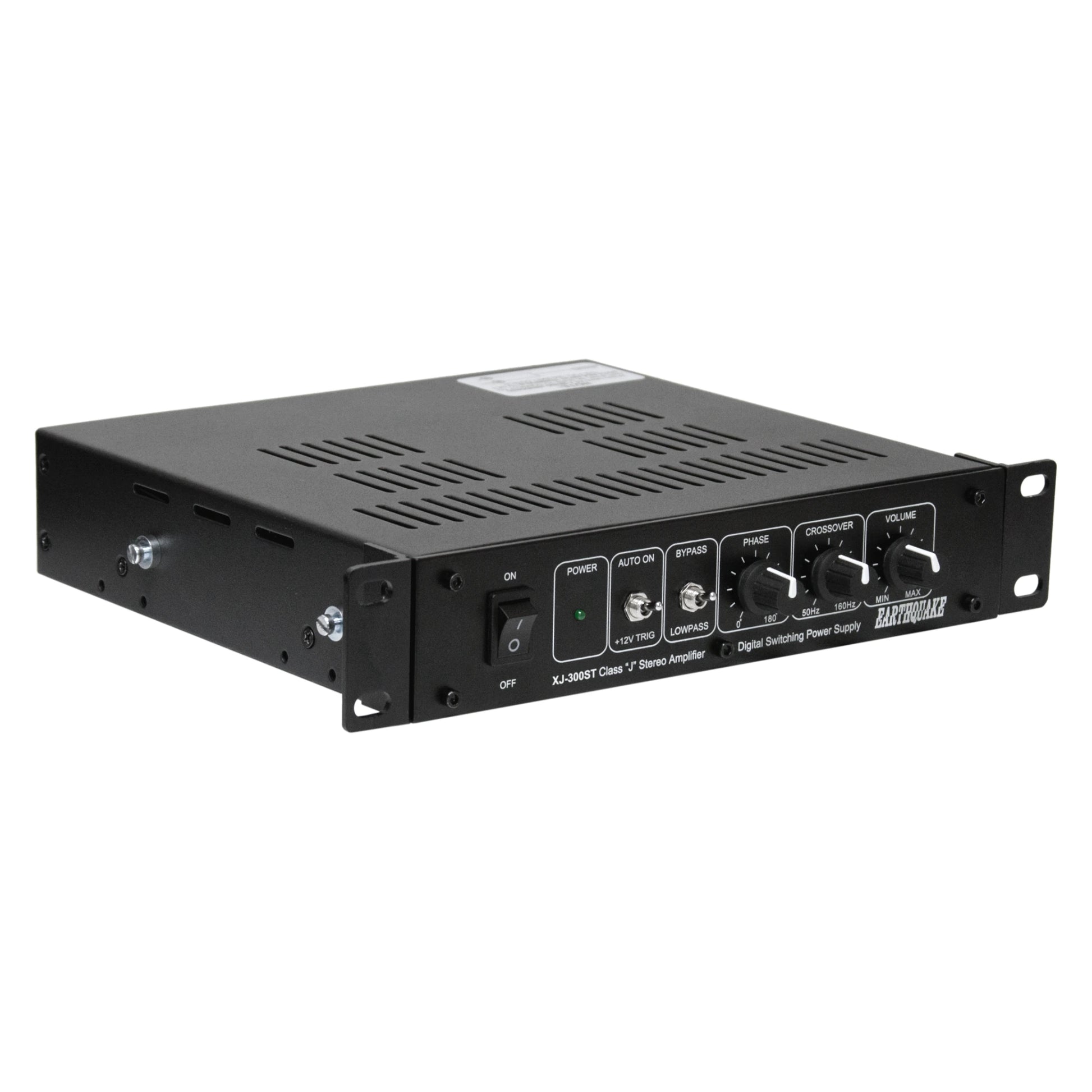

- 4 detachable short rack ears included

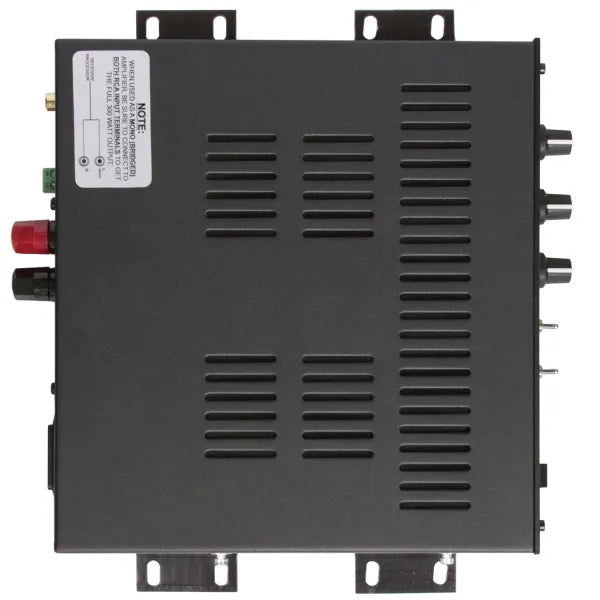

- Used for both rack and wall mounting

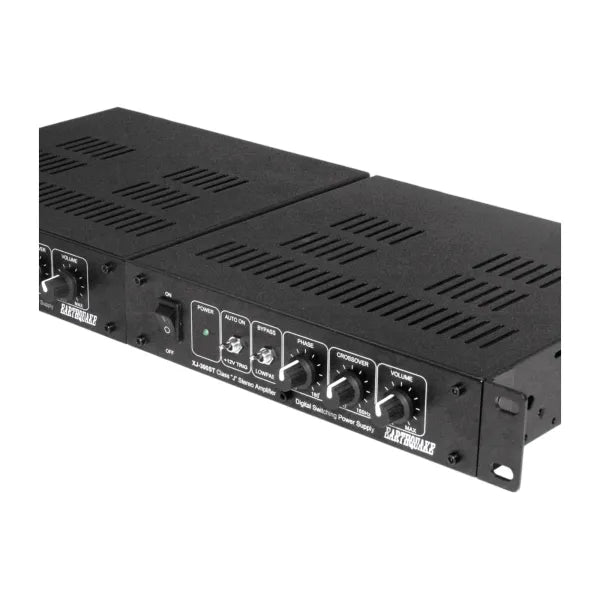

- Back bracket included links multiple XJ-300ST amplifiers

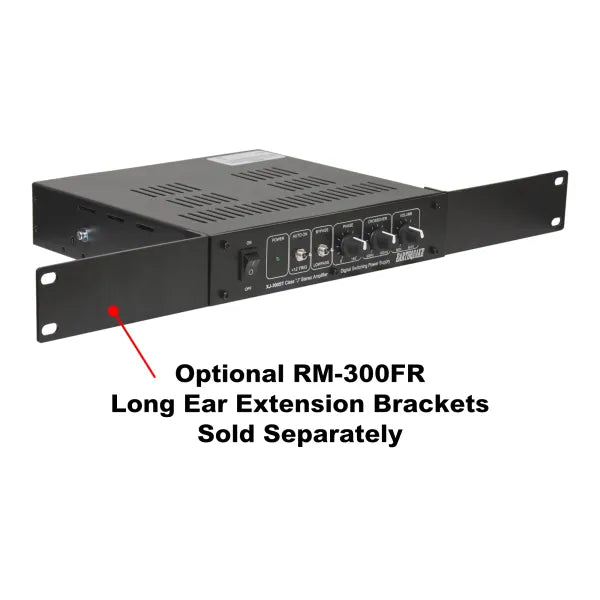

- Optional RM-300FR long ear extension brackets available
Specifications
XJ-300ST Amplifier
- Output Power 8-Ohm: 2 x 110W RMS, 170W RMS Mono Bridged
- Output Power 4-Ohm: 2 x 170W RMS, 300W RMS Mono Bridged
- Frequency response: 20Hz–20kHz
- Crossover Frequency: 50Hz–160Hz
- Input Impedance: 10 kOhm
- Impedance: 4–8 Ohm
- SNR: > 97 dB
- Damping Factor: > 400
- THD: < 0.08%
- Height: 1.85 in. (47mm) without feet
- Width: 8.66 in. (220mm)
- Depth: 9.68 in. (246mm) with terminals & knobs
- Net Weight: 3.74 lb (1.7 kg)
MQB-1 Tactile Transducer
- Power Handling: 20–500 Watts
- Frequency Response: 15Hz–50Hz
- Impedance: 8-Ohms
- Movement: 1″ (25mm)
- Height: 3.4 in. (86.5mm)
- Width: 2.64 in. (67.3mm)
- Depth: 3.5 in. (88.9mm)
- Net Weight: 3.12 lb (1.41 kg)
- Weight includes mounting bracket and hardware
