MXA-100BT Mixer Amplifier

MXA-100BT

$299.00
$299.00 $349.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

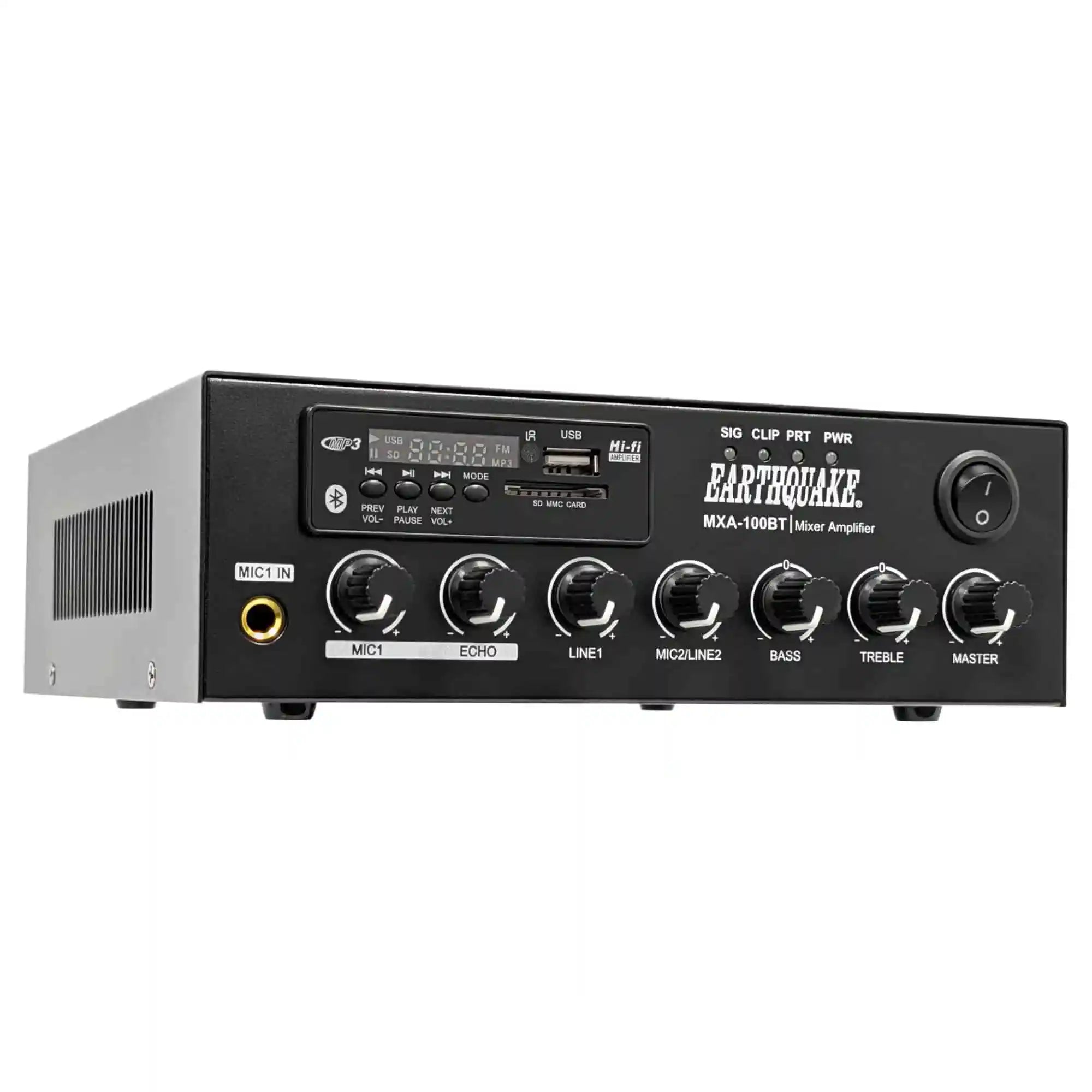

The Earthquake MXA-100BT Mixer Amplifier with Bluetooth® delivers 60W RMS of power, ideal for various settings like schools, supermarkets, banks, and hotels for background music and public address. This all-in-one device combines a media player, preamp, and mixer power amplifier in a single unit. It consolidates audio sources with MIC1 and MIC/LINE inputs, a Tel input, and line output. The MIC1 VOX feature enhances functionality, while an FM tuner, USB, and SD card slot on the front panel ensure easy accessibility. 4–8 Ohm / 70V /100V / speaker outputs allow for multiple connections, and protection mechanisms ensure safety. The MXA-100BT, featuring echo effects, is well-suited for diverse applications and supports both AC 230V and 12-24V DC power supply systems, making it adaptable for mobile sound systems in vehicles or vessels.

  • Mixer amplifier for commercial audio distribution
  • Compact size suitable for background music and public address systems
  • Built-in media player with Bluetooth v5.3, USB/SD Mp3 player, FM radio tuner
  • 60W rated power output
  • 4–8 Ohm, 70V, and 100V speaker output options
  • Included IR remote for front panel media player
  • Power, clip, protection, and signal LED indicators
  • Front panel 1/4 in. (6.3mm) microphone jack input
  • Switchable MIC2/LINE2 balanced XLR input with +48V phantom power
  • RCA LINE1 input and RCA LINE output
  • MUTE and EMC priority inputs for AUX signal
  • Front MIC, ECHO, LINE, and MASTER volume controls
  • Front BASS and TREBLE tonal controls
  • Short, clip, overload, and thermal protection circuitry
  • 110–230V AC and 12–24V DC power supply support
  • Suitable for mobile vehicle or vessel audio applications
  • Number of Channels: 1
  • Power Output: 60W RMS, 200W MAX
  • Amplifier Class: Class D
  • Speaker Outputs: 4–8 Ohm, 70V, 100V
  • Connections:1/4-inch MIC1 InputBalanced XLR MIC2/LINE2/PP +48V InputLINE1 RCA InputMUTE/EMC Priority InputsLINE RCA OutputBluetooth v5.3
  • Input:Mic: 5-8mV, 600ΩLine 150-470mV, 10KΩ, unbalanced RCA
  • Line Out: 0.775 (0dBV)
  • Frequency Response: 60Hz-15kHz (±3dB)
  • S/N Ratio:Line ≥ 85dBMic ≥ 72dB
  • THD: < 0.5%
  • Power Consumption: 80W
  • Power Supply: 110~230V AC 50/60Hz & 12V DC
  • Fuse Rating: T2AL 250V
  • Dimensions H x W x D:2.95 in. x 8.66 in. x 9.44 in.75mm × 220mm × 240mm
  • Weight 5.73 lb (2.6 kg)
