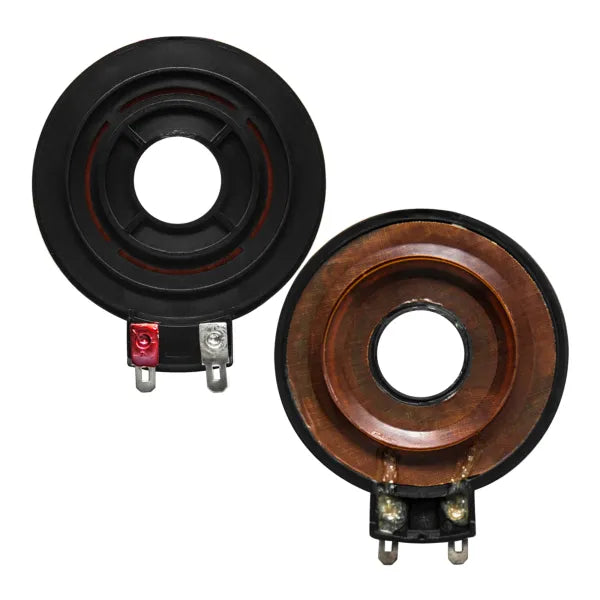

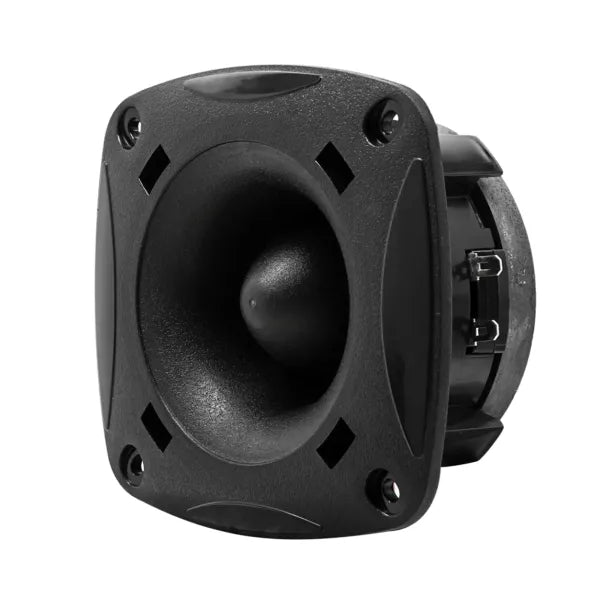

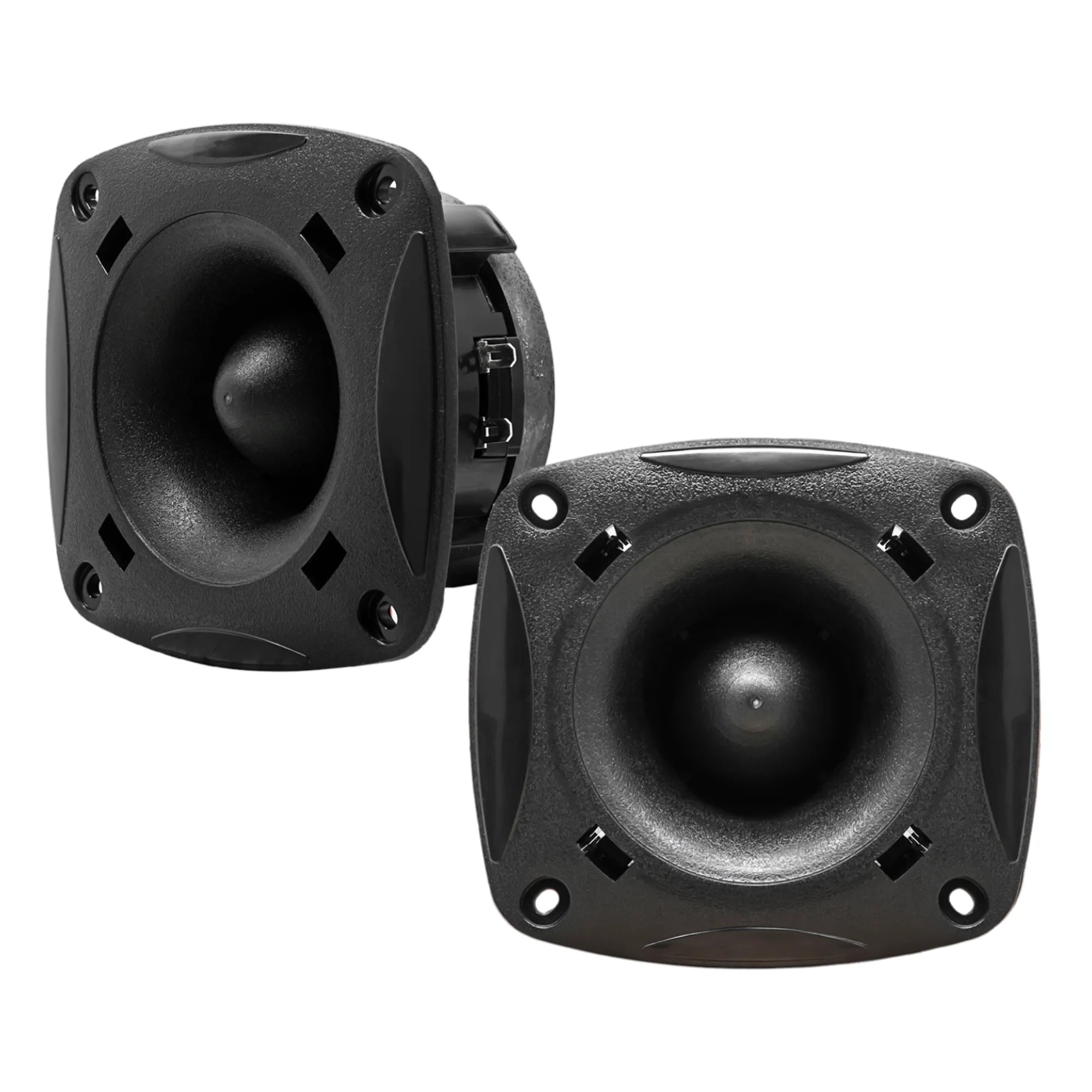

Earthquake’s SBT200 Super Bullet Tweeter offers excellent detail and clarity at the highest frequencies. The SBT200 may be used separately in lower power systems or arrayed for expanded coverage and SPL in higher power systems. Thanks to its bullet-shaped structure, the SBT200 provides a longer throw, 40° x 40° dispersion, and the durable ABS plastic-injected housing is stable and durable. The phenolic annular diaphragm is long-lasting and cost-effective, with a more true-to-life sound than metallic diaphragms. High-temperature materials enhance power handling and produce an incredibly high acoustic output.
Specifications
Power Handling:100 WRMS200 Watts Max
Nominal Impedance: 8 Ohm
Frequency Response: 2kHz–20kHz
Sensitivity: 105dB 1W/1M
Voice Coil Diameter: 1.8″ (46.2mm)
Sound Dispersion:40° Vertical / 40° Horizontal
Dimensions
Overall Dimensions: 4.52″ (115mm) x 4.88″ (124mm)
Baffle Cutout Dimension: 4.13″ (105mm)
Mounting Dimensions: 3.34″ (85mm) x 3.54″ (90mm) x 2.04″ (52mm)
Screw Hole Dimensions: 5/32″ (4mm) x 7/32″ (5.6mm)
