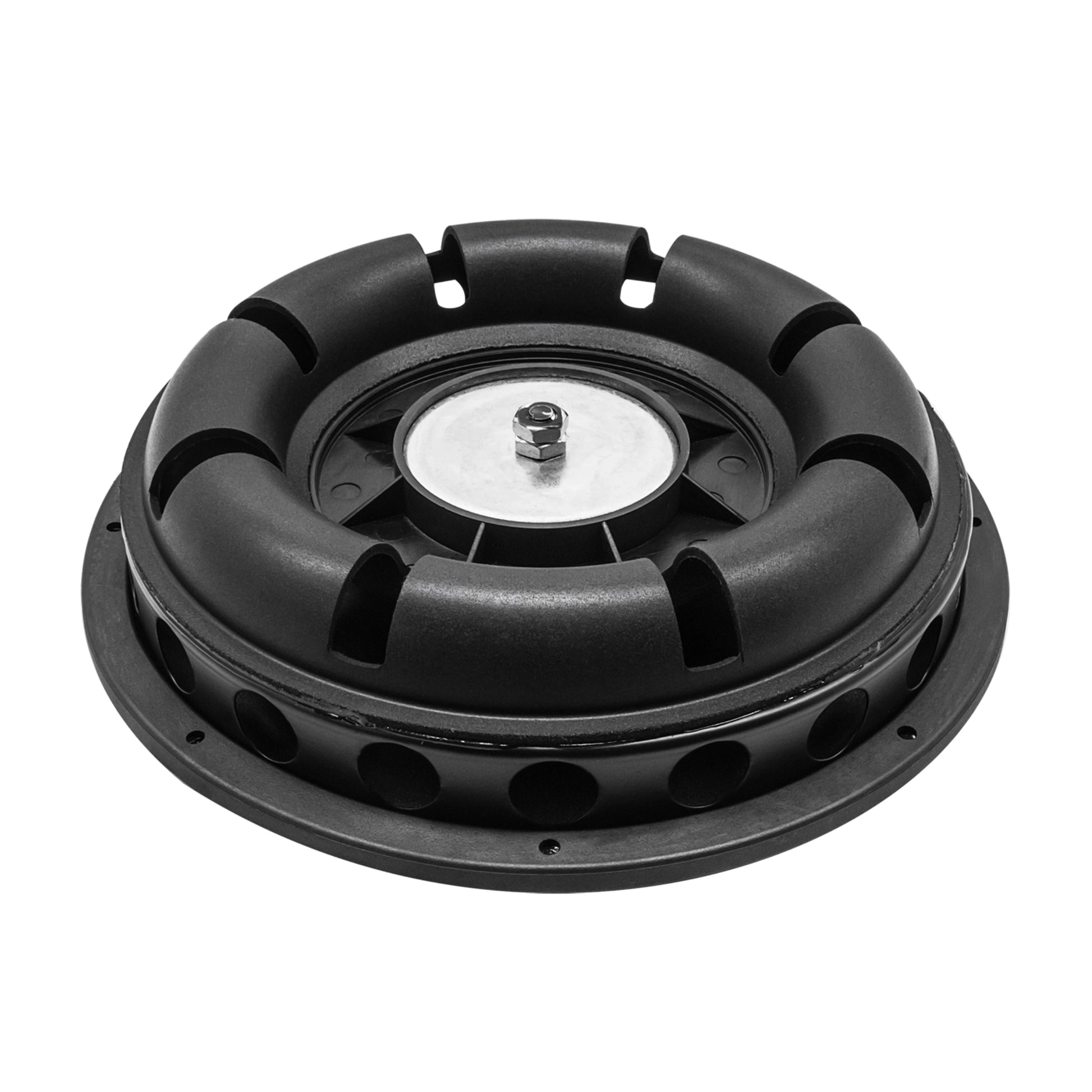

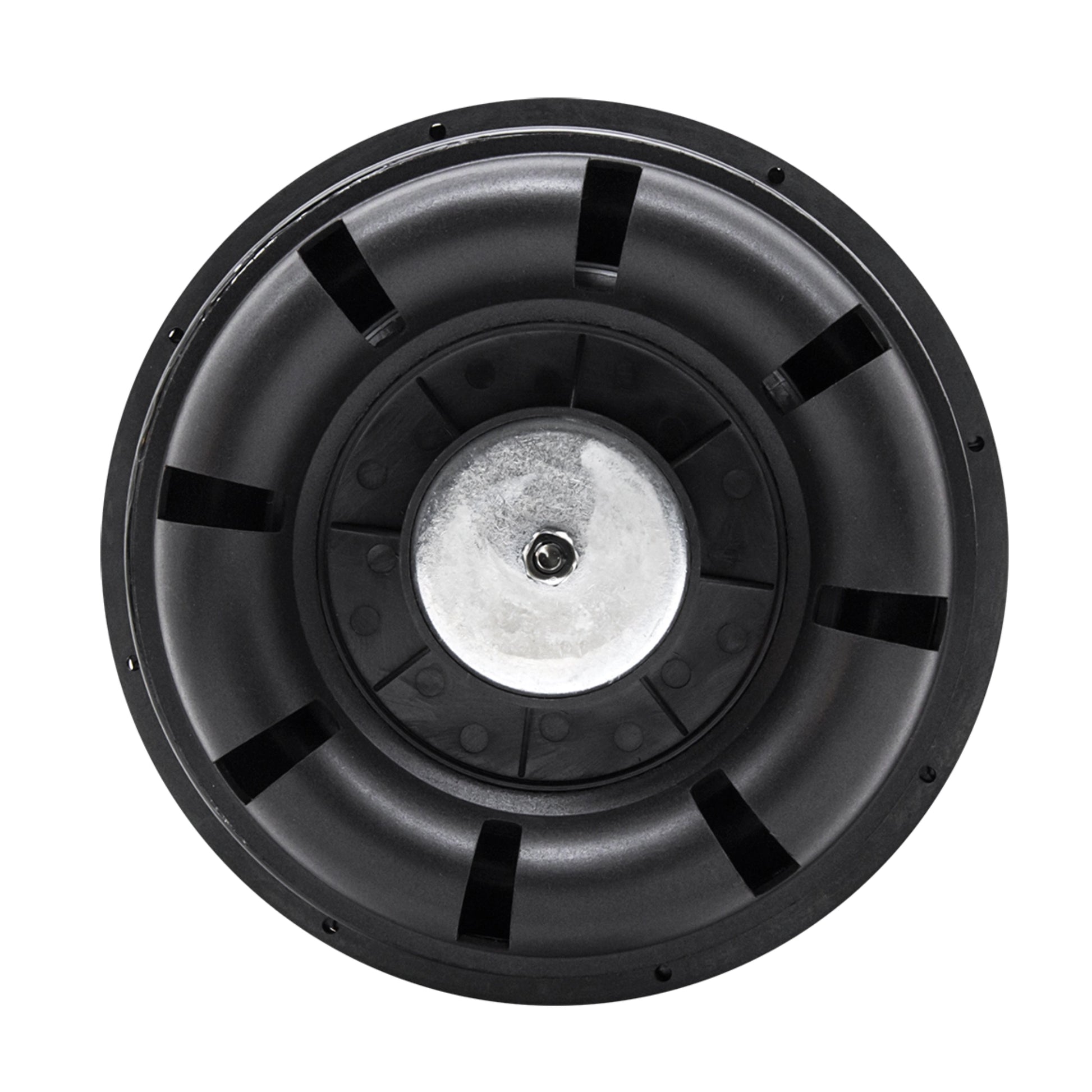

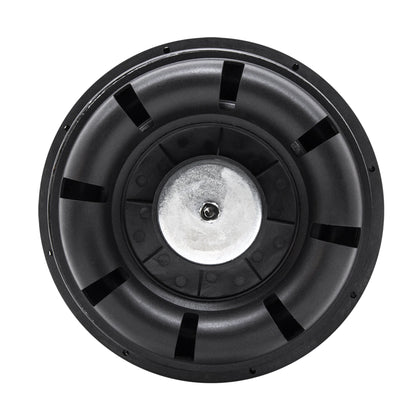

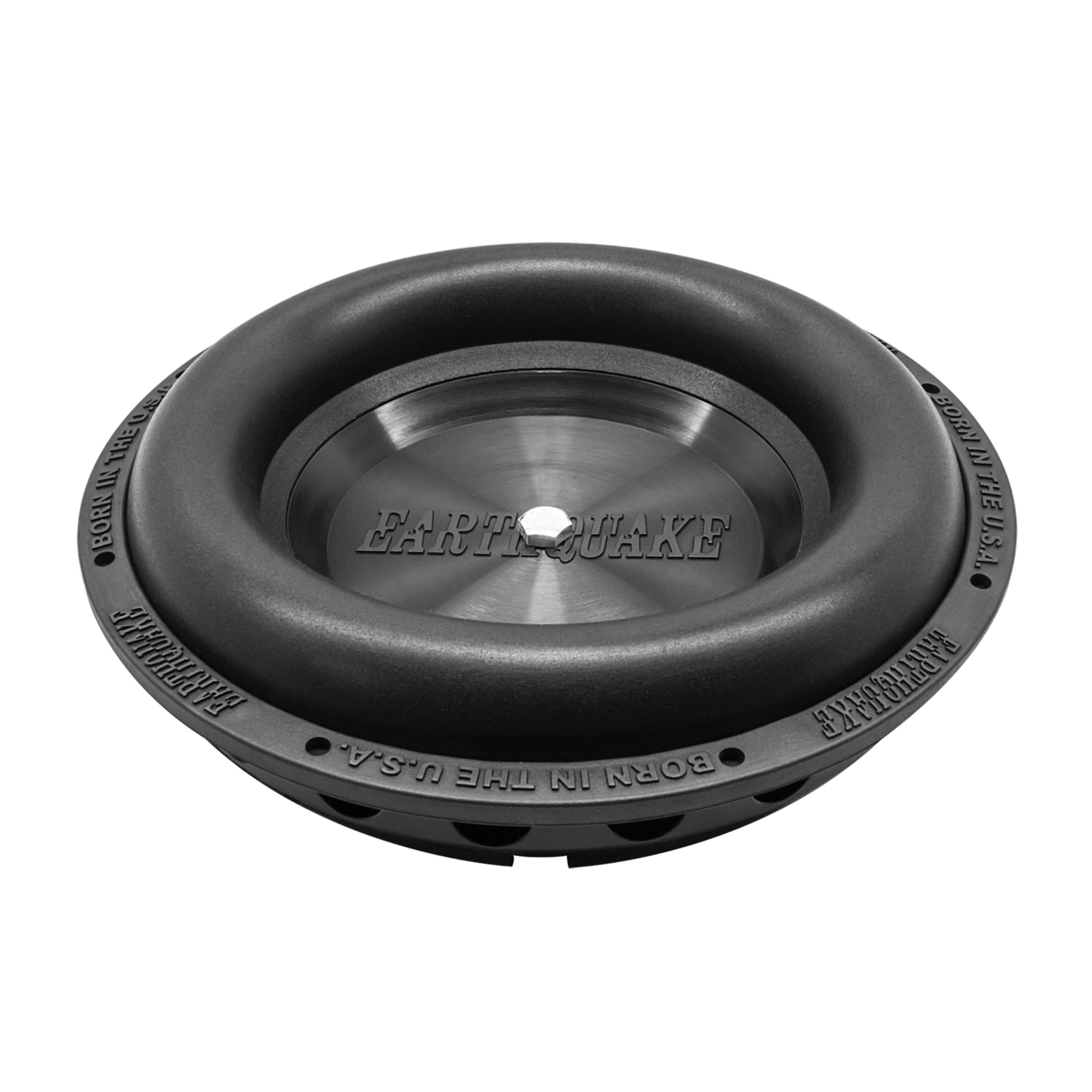

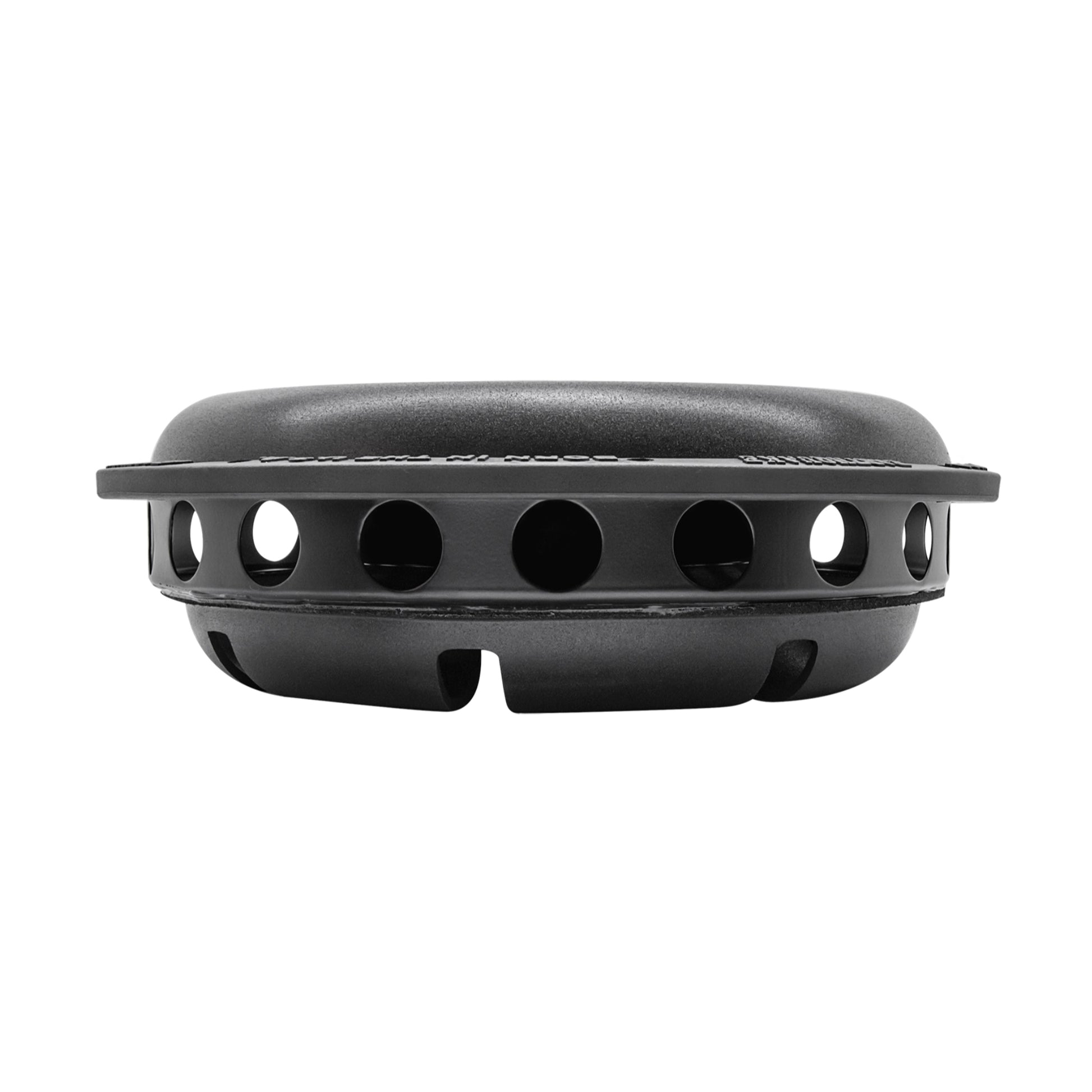

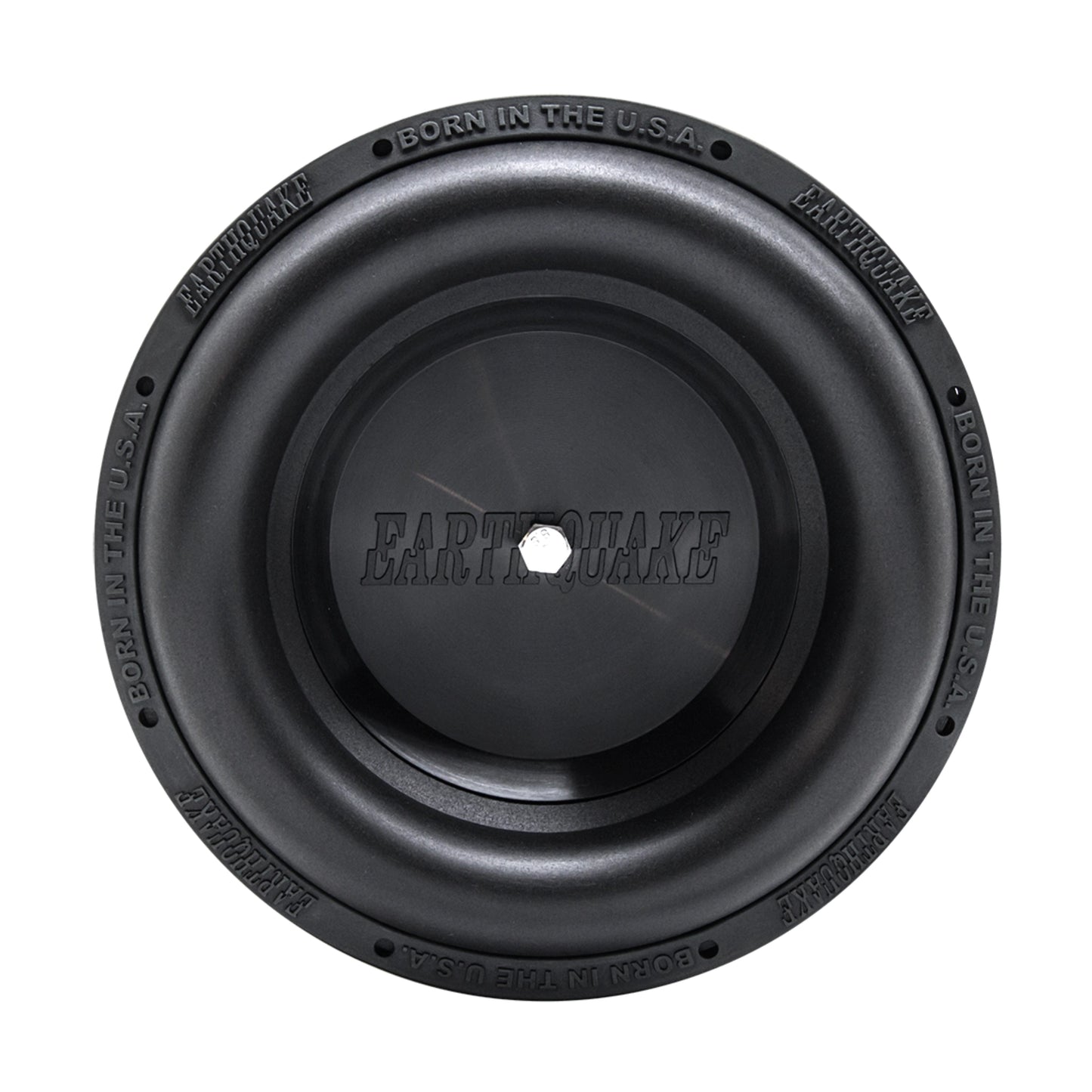

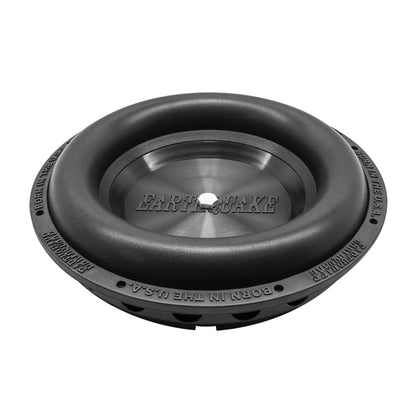

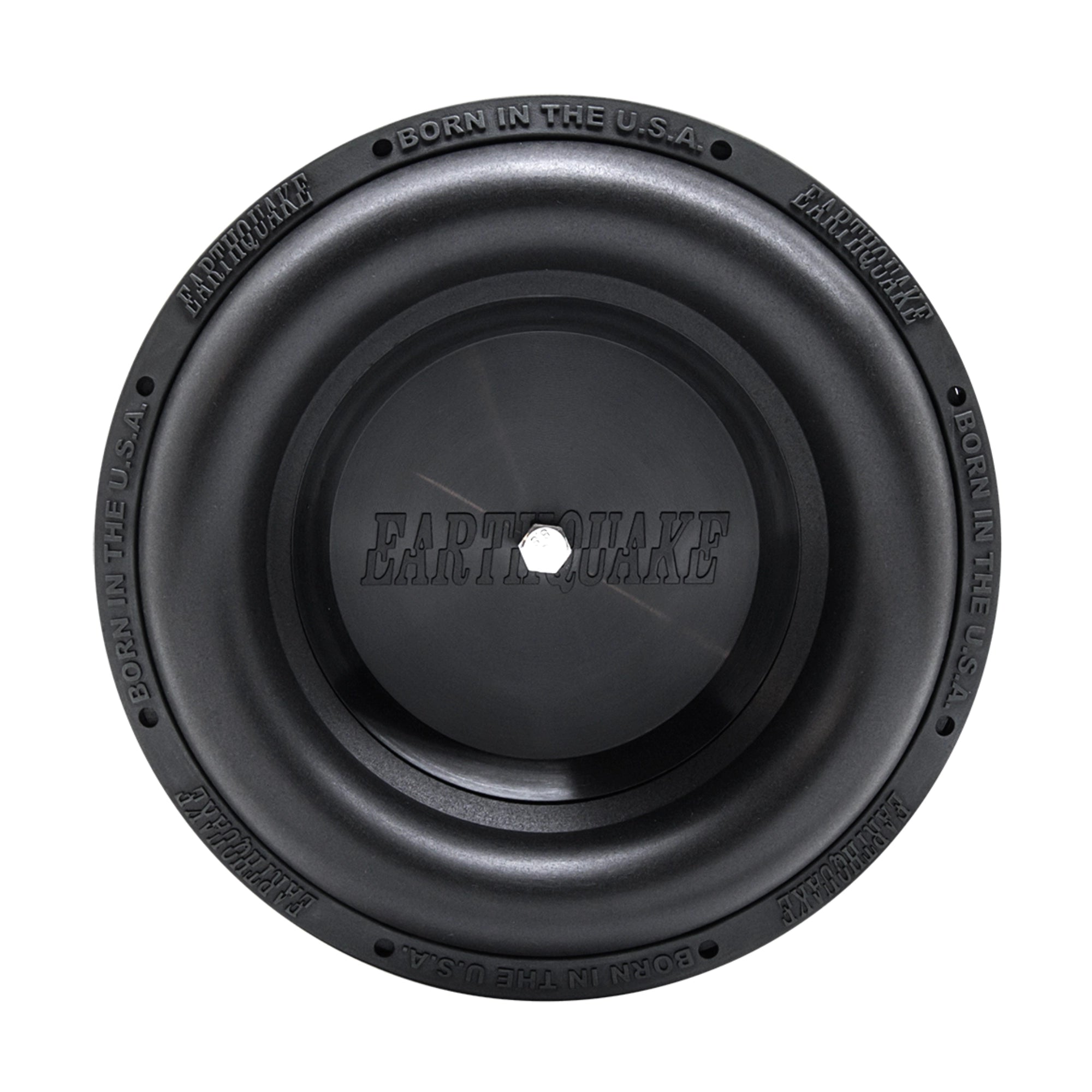

SLAPS-M10v3 Passive Radiator

SLAPS-M10v3

$59.99
$59.99 $79.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

The Earthquake SLAPS-M10v3 is a tunable passive radiator that provides additional bass without additional amplifier power or enclosure volume. It is designed to perfectly complement all good-quality long-throw woofers on the market. SLAPS add up to +6dB of bass compared to regular sealed and ported enclosures. The benefit of being user-tunable is that they can be integrated into virtually any subwoofer/cabinet combination.

  • Increases output without added amplifier power or enclosure volume
  • Suitable for high output needs where space is limited
  • User-tunable to match a range of vehicle requirements and musical preferences
  • Installs just like a subwoofer
  • Slim-mount design is only 3 inches deep
  • No increase over existing sealed subwoofer enclosure sizes
  • Compatible replacement for damaged Sunfire passive radiator
  • Overall Diameter: 10.03″ (255mm) without rubber gasket
  • Cutout Diameter: 9.25″ (235mm)
  • Mounting Screw Diameter: 9.68″ (246mm)
  • Mounting Depth: 2″ (49.9mm)
  • Xmax: 4″
  • Hex Nut Size: US 5/16 (M8)
  • Mass ID: 8mm
  • Max Mass OD: 74mm

TS Parameters

  • CMS, CMP: 0.00035407 N⋅m
  • Diameter Peak to Peak, D: 20.25 cm
  • Active Piston Area Sd: 322.0630875 cm²
  • Active Piston Area Sd: 0.032206309 m²
  • Vas in Liters: 52.15063204 L
  • Vas in Cubic Feet: 1.83628986 ft3
  • Air Mass Mmr In Kg: 0.003323374 kg
  • Air Mass Mmr In Grams: 3.32337442 g
  • Moving Mass In Grams: 152 g
  • Mms = Mmp In Grams: 155.3233744 g
  • Free Air Resonance Fs = Fp: 21.4613009 Hz
  • Qms: 9.5

* All measurements are with zero added mass assuming surround losses of Qmd = 7 @ 20Hz
