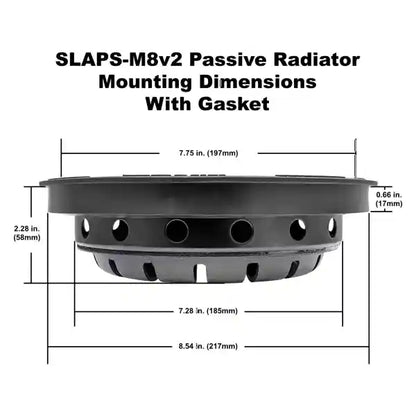

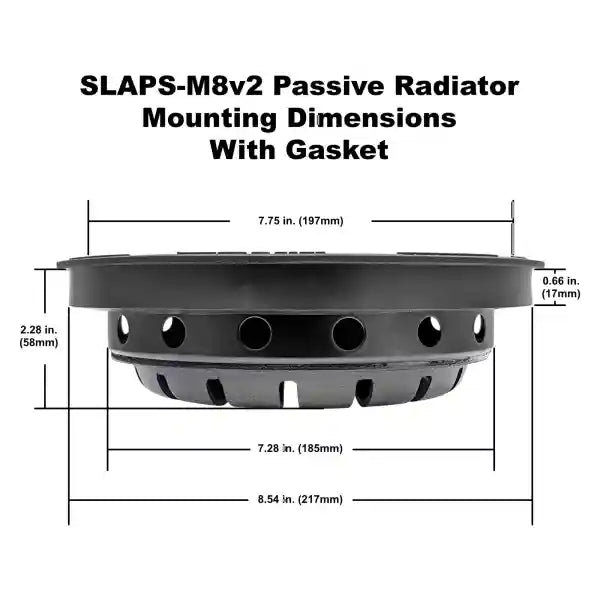

- Overall Diameter: 8.93″ (227mm)

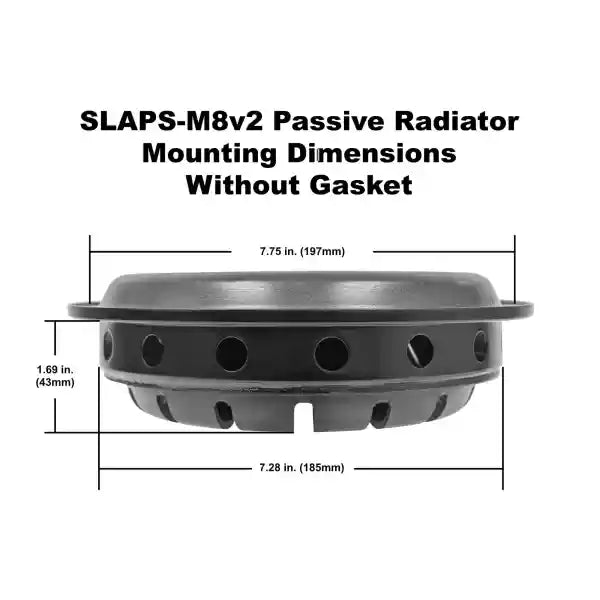

- Cutout Diameter: 7.28″ (185mm)
- Mounting Depth: 2.28″ (58mm)
- Hex Nut Size: US 5/16″ (M8)
- Mass ID: 5/16″ (8mm)
- Max Mass OD: 2″ (52mm)
- Weight: 1.75 lb
Parameters
- CMS, CMP: 0.000326721 Nm
- Diameter Peak to Peak, D: 16 cm
- Active Piston Area Sd: 201.0624 cm²
- Active Piston Area Sd: 0.02010624 m²
- Vas in Liters: 18.7554059 L
- Vas in Cubic Feet: 0.660401616 ft3
- Air Mass Mmr In Kilograms: 0.001639322 kg
- Air Mass Mmr In Grams: 1.639321512 g
- Moving Mass In Grams: 74 g
- Mms = Mmp In Grams: 75.63932151 g
- Free Air Resonance Fs = Fp: 32.01526526 Hz
- Qm: 9.5
* All measurements are with zero added mass, assuming surround losses of Qmd = 7 @ 20Hz
