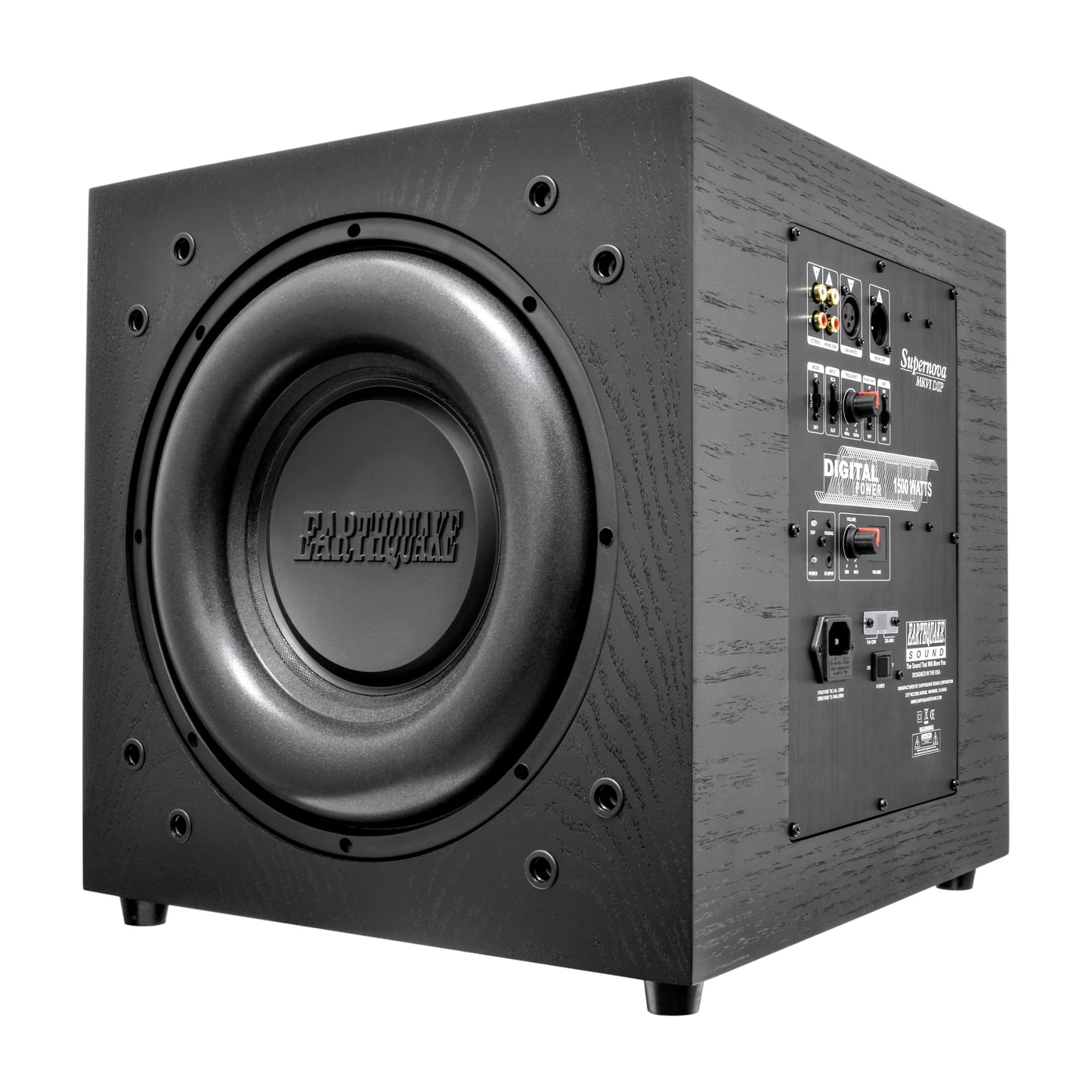

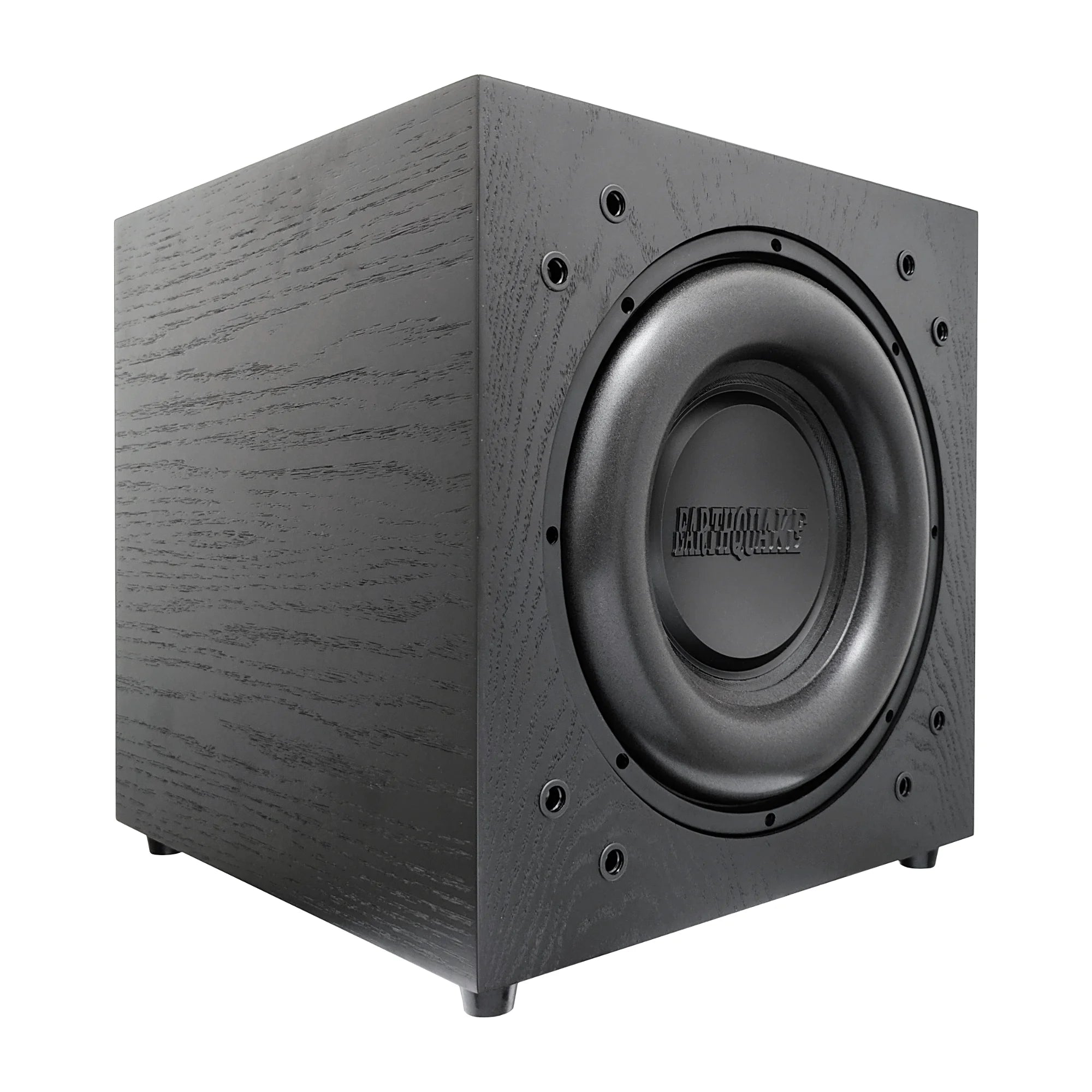

Supernova MKVI-DSP 15 Subwoofer
SKU:MKVI-DSP-15-BLKASH-1
Couldn't load pickup availability
Share
Description
The Earthquake Supernova MKVI DSP 15 subwoofer is a perfect blend of advanced audio engineering and sophisticated DSP (Digital Signal Processing) technology, establishing a new standard for bass performance. This subwoofer series is crafted to offer an unmatched listening experience, providing the precision that audiophiles and home theater enthusiasts desire. With DSP integration, users gain exceptional control over sound output, allowing them to customize bass response to suit their room acoustics and personal taste. Whether you’re watching a movie, listening to music, or gaming, this subwoofer can adapt to deliver deep, clear, and impactful bass, enhancing every audio moment. Its robust build construction and cutting-edge features make it an excellent choice for those looking to enhance their audio system’s capabilities.
Product Features
Subwoofer Features
- MAGMA-X long throw premium active driver
- Patented SLAPS passive bass radiator technology
- Advanced high-efficiency Class D amplifier
- Make on-the-fly adjustments with your smartphone or tablet
- Room correction with full DSP control
- iWoofer™ mobile app compatible
- Low level RCA and balanced XLR inputs
- RCA and XLR Mono DSP outputs
- Continuously variable crossover with up to 48db/Oct slope
- 3-way Auto/On/Off signal mode selector
- XLR/RCA input mode selector
- DSP On/Off selector
- Auto room tuning adjustments
- 0–180° phase adjustment selector
- IR remote and remote eye
- DSP pairing via Bluetooth™
Standard iWoofer™ Features
- XOver Control (6, 12, 18, 24, 30, 36, 42, and 48dB/Octave)
- Gain Control
- Subharmonic Synthesizer Control
- Delay Control
- Phase Control (Variable phase with 1-degree increments from 0–180°)
- Limiter-Compressor Base Control
- Dynamic Bass Base Control
- Remote Hardware Control
- Preset Manager
- Preset Import/Export Features
Specifications
- Color: Black Ash, Piano Black
- Powered: Yes
- Amplifier Output (Watts): 1000W RMS
- Active Driver Size: 15″
- Passive Driver Size: 15″ SLAPS
- Cone Material: Non-pressed Pulp Fiber
- Woofer Surround Material: Polyether Foam
- Voice Coil: Dual
- Voice Coil Diameter: 3 in.
- Voice Coil Former: Kapton
- Frequency Response: 18Hz–115Hz
- Crossover Frequency (Low Pass): 40Hz–160Hz
- Crossover Slope: up to 48db/Oct
- Phase Shift: Switchable 0–180°
- App Control: Yes
- DSP (Digital Signal Processing): Yes
- Enclosure Type: Ported with Passive Radiator
- Mass Tuned: Yes
- Signal Sensing: ON/AUTO/OFF
- Remote: Yes
- Grille Included: Yes
- Power Requirements: 115/230 VAC, 60/50 Hz
- HxWxD: 17.75″ (451mm) x 17″ (432mm) x 21″ (534mm)
