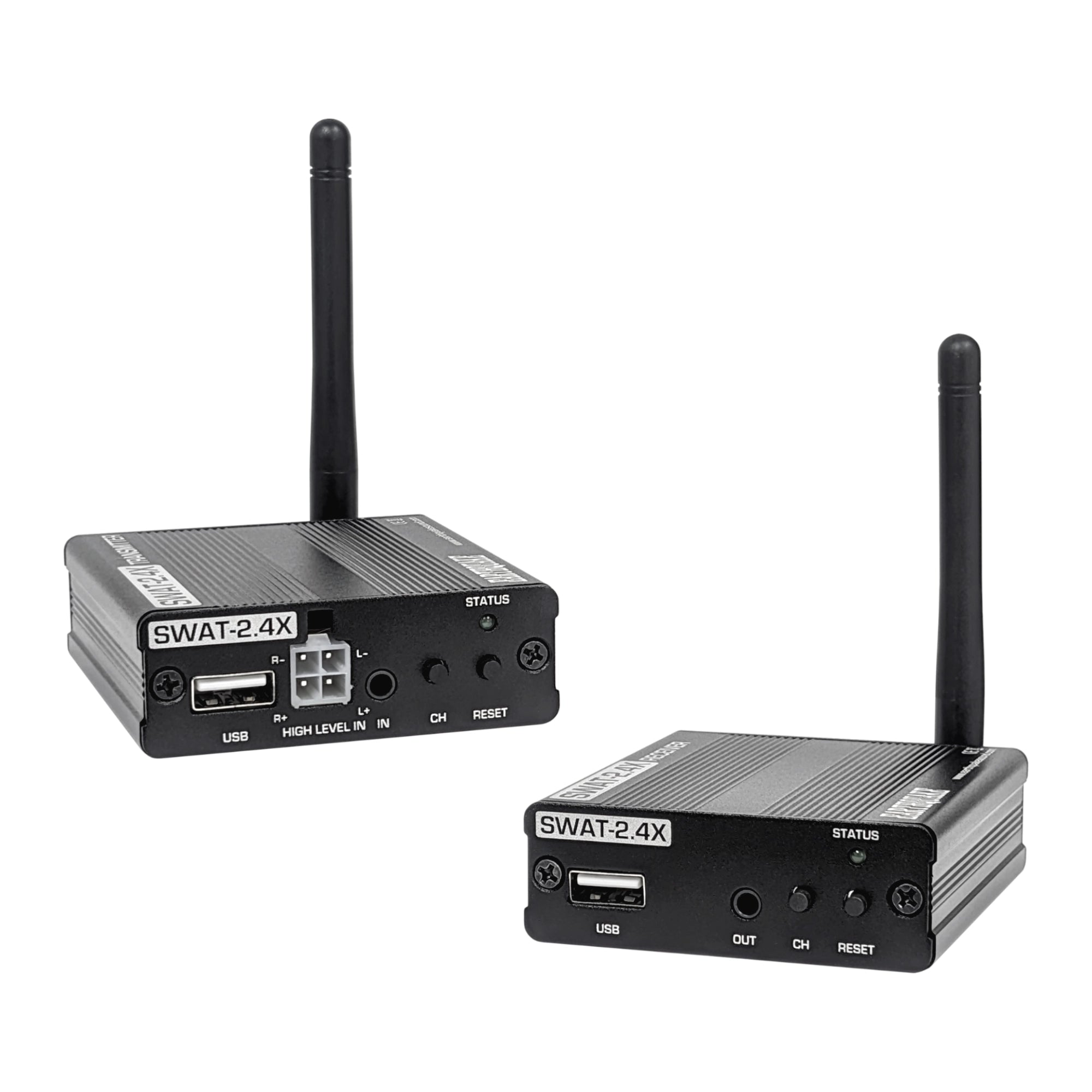

SWAT-2.4X is a wireless audio transceiver that allows you to play audio material from your audio source player to almost any speaker wirelessly. Hardwiring your speakers to your sound source is costly and time-consuming. The SWAT-2.4X makes installation quick but does not compromise sound quality for convenience. It is extremely versatile and perfect for apartments or outdoor settings. It even has microphone capability, so you can transmit voice as well.
The SWAT-2.4X consists of a Transmitter (a unit that connects to the source) and a Receiver (a unit that connects to the amplifier or powered speaker). The SWAT-2.4X Transmitter connects to a stereo, MP3 player, computer, or any other device that can play audio through a 3.5mm stereo jack or RCA output. The Receiver is then connected to an amplifier or a powered speaker through an RCA input. Multiple Receivers can connect wirelessly to one Transmitter if you want the music to play in different areas or on multiple systems. Extra Receivers can be purchased separately.
Specifications
Frequency Band: 2.4Ghz
Channel Selections: 20 Channels
Work Voltage: 3.6–6VDC
Transmitter Work Current: Max 120 mA
Receiver Work Current: Max 35 mA
Operation Temperature: 5–149 °F (-5–65 °C)
Practical Mode Freq. Range: 2400–2484 MHz
Transmitter Modulation: GFSK
Band Rate: 2 Mbps
Frequency Stability: ±156kHz
Practical Working Frequency: 2400–2484 MHz
Channel Space: 4 MHz
RF Range: Up to 328 ft. (100 m) of open field
Transmitter TX Power: 0–20 dBm
Receiver RX Sensitivity: 90 dBm
Transmitter Input Level: Max 1.0V RMS
Transmitter Input Impedance: 10 kOhm
Transmitter Input Interface: Mic & high level audio
