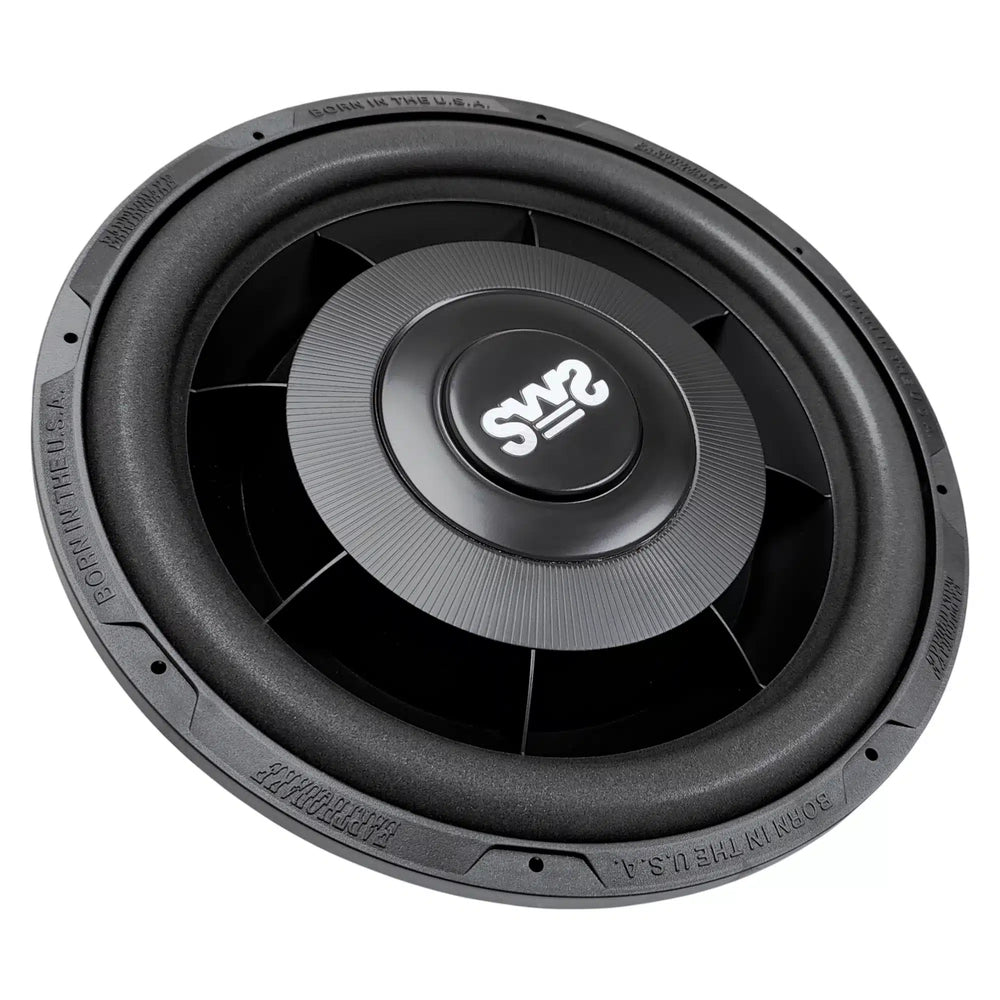

The SWS-12X is part of the SWS series of low-profile shallow-mounting subwoofers, initially invented by Earthquake Sound Corporation to deliver massive bass from a shallow space. With a patented inverted style and ribbed cone design, this 12-inch subwoofer maximizes excursion in shallow mount applications, allowing for placement in almost any location. The innovative design moves suspension components to the side, reducing mounting depth while enhancing sound capability.
Specifications
Size: 12-inch
Impedance (ohms): 4
Sensitivity: 89.4 dB
Voice Coil: Single
RMS Power: 300W
MAX Power: 600W
Cone Material: Polypropylene
Surround Material: Foam
Voice Coil Former: Aluminum
Winding Material: Copper
Voice Coil Diameter: 2.5 in. / 63.5mm
Mounting Hole Diameter: 11.37 in. / 288mm
Mounting Depth: 3 in. (75mm)
Parameters
Fs: 24Hz
Revc: 3.75 Ohms
Fo (Hz): 24.006
Sd. (msqM): 53.000
BL. (TM): 10.642
Qms: 3.56
Qes: 0.515
Qts: 0.45
SPLo. (dB): 89.4
Vas. (Ltr): 149.612
Xmax: 1.22 in. (31mm)Note: (Xmax Measured In One Direction)
Recommended Sealed Internal Volume
Minimum: 0.56 cu. ft. (15.85 Ltr)
Maximum: 1.25 cu. ft. (35.39 Ltr)Assuming 3/4 in. MDF is being used
