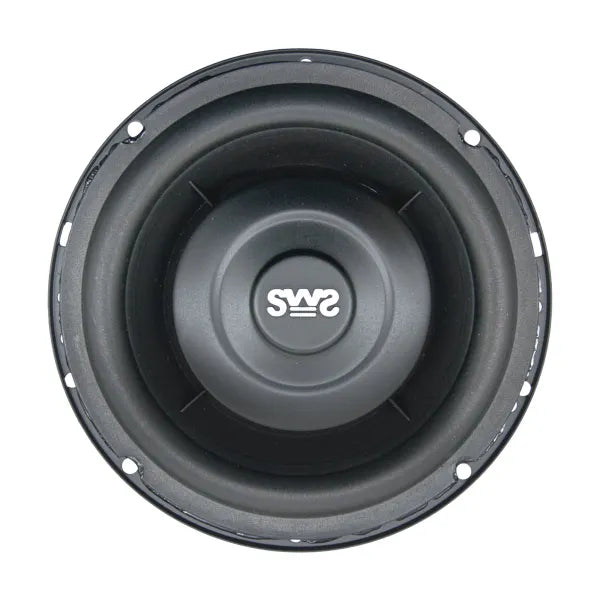

SWS-6.5X Shallow Subwoofer (Pair)
SKU:SWS-6.5X
Couldn't load pickup availability
Share
Description
SWS – The OG of Shallow Woofer Design
Earthquake Sound Corporation is the original inventor of the Shallow Woofer System (SWS), which revolutionized how we experience bass in compact spaces. The SWS 6.5, 8, 10, and 12-inch low-profile subwoofers embody this innovative technology, enabling massive bass from a small, shallow-mount application. With a unique inverted-cone design, the SWS maximizes excursion capability, delivering deep bass performance where conventional subwoofers can't.
Pioneered by Joseph Sahyoun and safeguarded by multiple global patents, the SWS's low-profile, patented design provides the flexibility to place the subwoofer in almost any location. Its intelligent design shifts the flexible suspension components, including the cone and spider, to the side, allowing an elevated motor while reducing the speaker's mounting depth. This creates space for enhanced excursion capability, resulting in powerful bass performance that defies its compact form. More excursion directly translates to more impactful sound, providing a premium audio experience without compromising space.
The SWS series establishes a benchmark for shallow-mount subwoofers, delivering an exceptional blend of innovative technology, a low-profile design, and impressive bass performance. Suitable for automotive, marine, or home audio setups, the SWS transforms the possibilities for compact areas, making it possible to achieve remarkable bass in any location.
Product Features
- 6.5″ high-performance shallow subwoofer
- Low-profile mounting for versatile placement
- Patented design maximizes excursion in shallow mount applications
- High roll pressed foam surround with propagating spider allows for extreme excursion
- Ribbed and inverted style cone with light-moving mass eliminates break-up distortion
- High-temperature aluminum voice coil and dust cap transfer heat out of the enclosure
- SWS design reduces mounting depth by over 60%
- Protected by multiple U.S. patents
- Priced and sold by the pair
Specifications
- Size: 6.5-inch
- Impedance (ohms): 4
- Sensitivity: 77.3 dB
- Voice Coil: Single
- RMS Power: 100W
- MAX Power: 200W
- Cone Material: Polypropylene
- Surround Material: Foam
- Voice Coil Former: Aluminum
- Winding Material: Copper
- Voice Coil Diameter: 1 in. / 25 mm
- Mounting Hole Diameter: 5.75 in. / 142 mm
- Bolt Circle Diameter: 6.22 in. / 158 mm
- Mounting Depth: 1.75 in. (45 mm)
- Minimum Sealed Box Volume: 0.2 cu. ft. / 5.66 L
- Maximum Sealed Box Volume: 0.4 cu. ft. / 11.32 L
