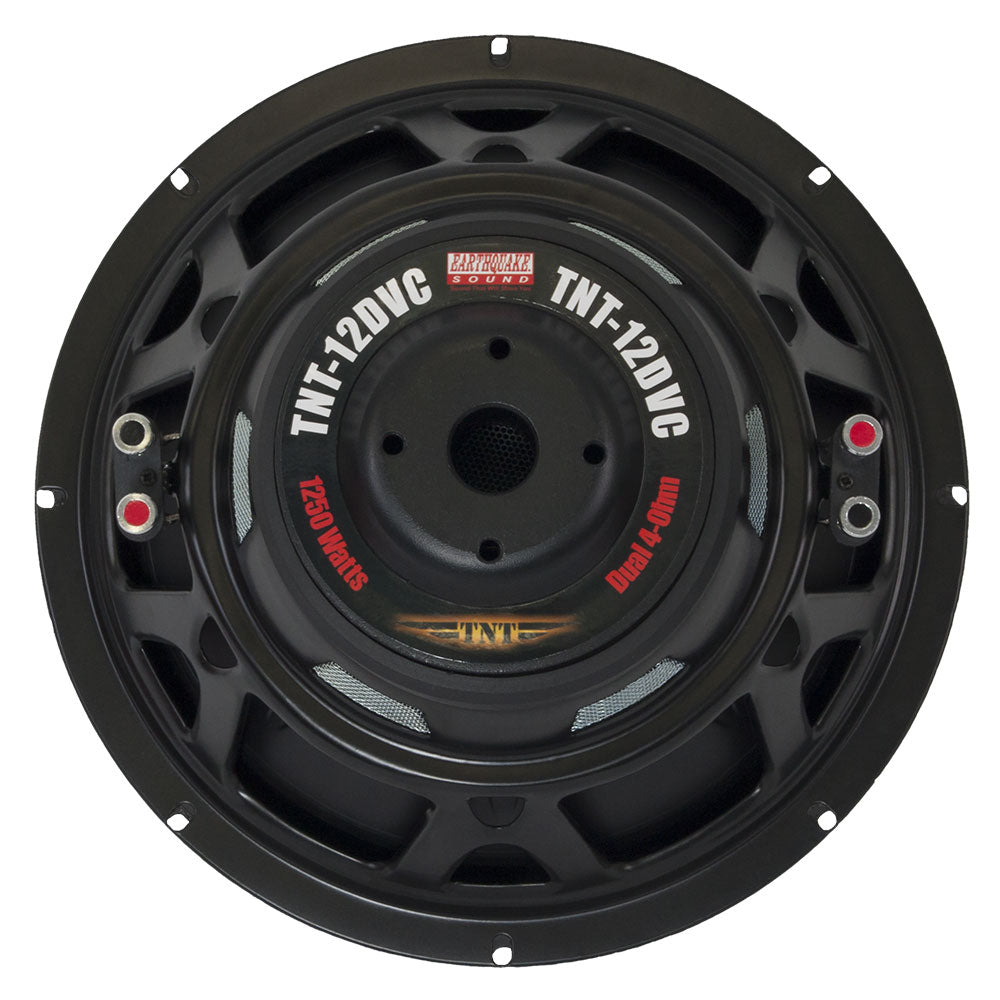

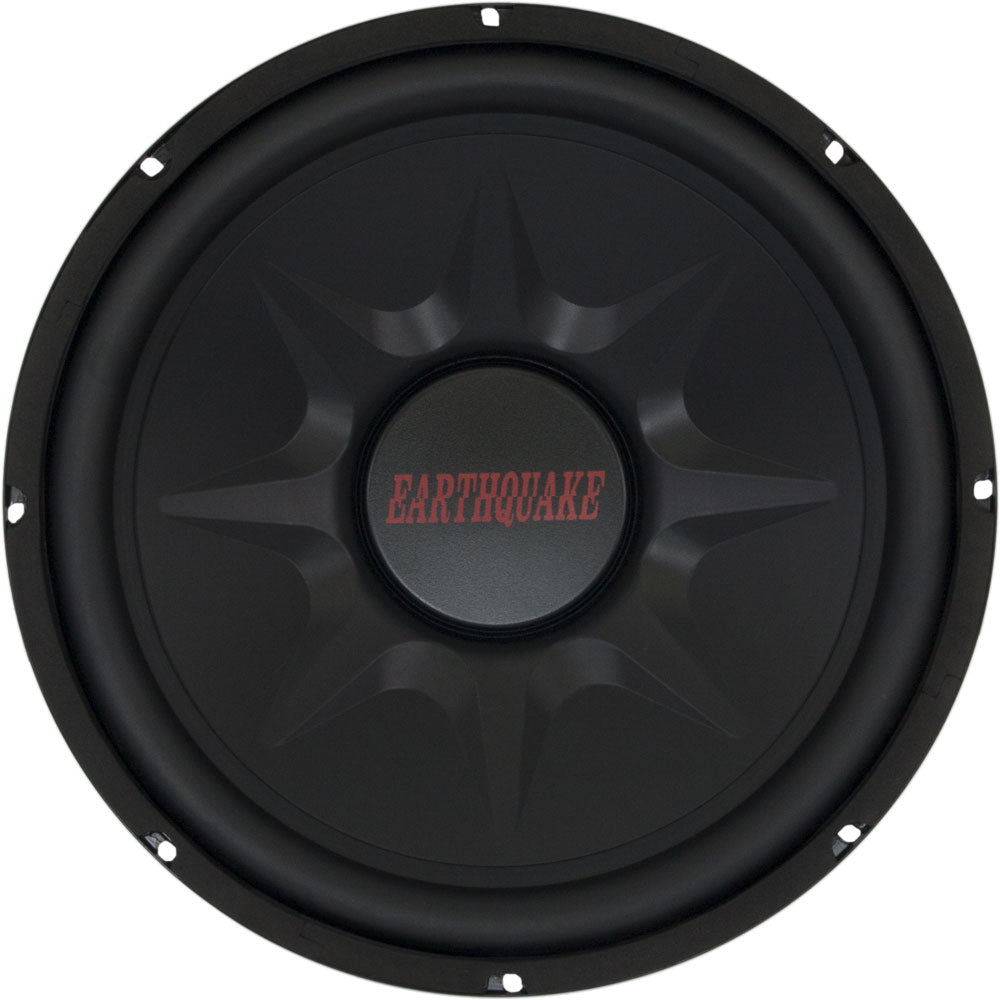

TNT-12DVC Subwoofer
SKU:TNT-12DVC
Couldn't load pickup availability
Share
Description
For car audio enthusiasts who demand powerful, articulate bass that transforms their listening experience without emptying their wallets, Earthquake Sound presents the TNT Subwoofer Series. These subwoofers are meticulously engineered to deliver the perfect amount of power for any system, making them a versatile solution for a wide range of audio setups. The core mission of the TNT series is to provide an extreme value – hard-hitting bass experience, ensuring that high-quality, impactful low-frequency sound is accessible to a broader audience of audio aficionados.
To cater to diverse installation needs and acoustic preferences, the TNT series is available in both 10-inch and 12-inch driver sizes. Furthermore, each size offers the choice of single voice coil (SVC) or dual voice coil (DVC) configurations, guaranteeing straightforward integration into virtually any vehicle audio system. This flexibility allows installers and DIYers alike to optimize impedance loads and wiring schemes to match their specific amplifiers and system goals.
Specifications
- Power Handling: 400 WRMS / 1250 Watts Max
- Impedance: Dual 4-Ohm
- Efficiency (1W/1M): 87dB SPL
- Sealed Enclosure: 1.27 to 1.60 cu. ft.
- Ported Enclosure: 1.35 to 1.75 cu. ft.
- External dimensions provided using 3/4” MDF
- Enclosures are designed to play at 40Hz and up
Parameters
- Free Air Resonance (Fs): 32Hz
- Electrical “Q” (Qes): 0.903
- Mechanical “Q” (Qms): 7.169
- Total Speaker “Q” (Qts): 0.80
- Xmax: 2″ (50.8mm)
- REVC: 3.6 Ohm
- BL: 11.12 T-m
- VAS: 45.7 L / 1.614 cu. ft.
Dimensions
- Outer Diameter: 12.20″ (310mm)
- Cut Out Diameter: 11.65″ (296mm)
- Mounting Depth: 5.98″ (152mm)
- Magnet Diameter: 5.51″ (140mm)
- Weight: 9.48 lb (4.30 kg)
