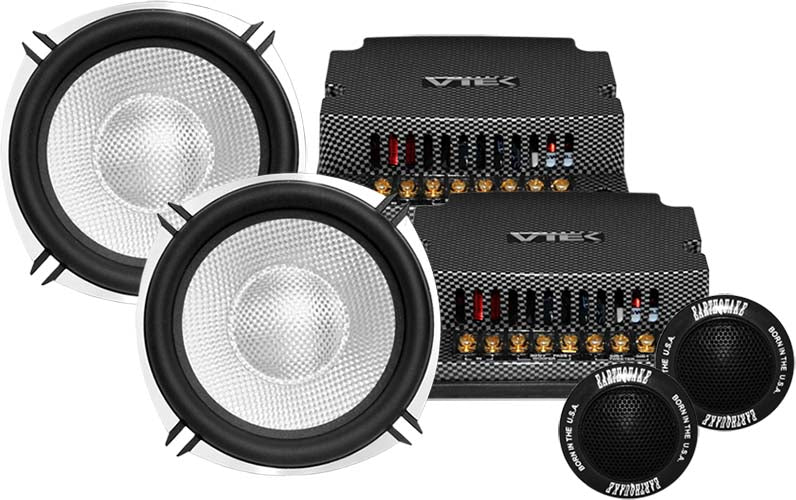

VTEK-MC5 Component Set

VTEK-MC5

$89.00
$89.00 $249.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

You’ll be hypnotized by the vibrant imaging of VTEK component systems. Expect shining clear sound and blazing performance, thanks to Earthquake’s combination of innovative materials and design.

The tri-layered electroplated carbon fiber woofer cones produce accurate, natural-sounding bass, thanks to a linear drive magnet design and the excellent sound-propagating qualities of the woofers’ low mass cone. Additionally, the PistonMax wide surrounds pushed out to the edge of the basket produce 20% more performance than any other surround.

Bottom line, these are sound quality speakers designed to take the guessing game out of high-end speaker choices.

  • Tri-layer carbon fiber cone with electroplated aluminum surface sealer
  • Overhung rubber surround
  • Cast aluminum basket
  • High precision 1″ silk dome neodymium tweeters
  • Four mounting options
  • New carbon fiber styled crossover
  • Over-sized polypropylene crossover capacitors
  • 12db per octave slopes
  • Flat or -3db tweeter connections
  • Passive Xover
  • Speaker Wires
  • Die Cast
  • 2-Way Speaker
  • Midbass: 5.25″ / 1″ voice coil
  • Tweeter: 1″ silk dome
  • Rec. Amp Power: 500W Max
  • Frequency Response: 45Hz-23kHz (±3dB)
  • Sensitivity: 91dB @ 1W/1M
  • Nominal Impedance: 4-Ohm
  • Mounting Depth: 2.18″ (55.37mm)
  • Magnet Diameter: 3.38″ (86mm)
  • Cut-out hole: 4.72″ (120mm)

Parameters

  • Revc = 3.0000Ohm
  • Fo = 129.528Hz
  • Sd = 8.900msqM
  • BL = 3.706TM
  • Qms = 1.928
  • Qes = 1.721
  • Qts = 0.909
  • No =0.214%
  • SPLo = 85.3dB
  • Vas = 61.956mcuFt
  • Cms = 155.978uM/N
  • Krm = 306.459uOhm
  • Erm = 0.899
  • Mms = 9.680g
  • Mmd = 9.197mKg
  • Kxm = 14.133mOhm
  • Exm = 0.542
View Product Details
