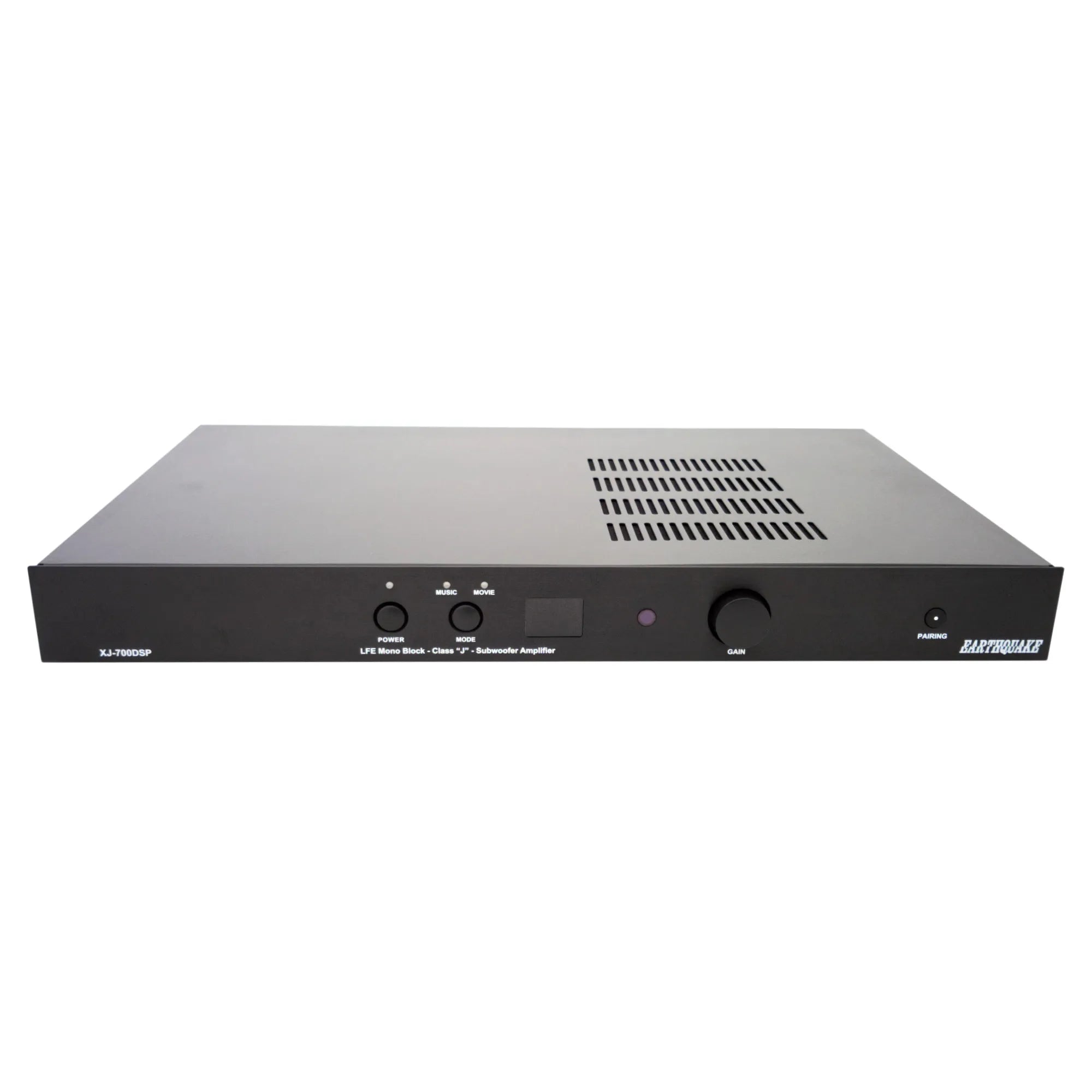

XJ-700DSP LFE Mono Amplifier

XJ-700DSP

$839.00
$839.00 $1,299.00
Sale Sold out
Shipping calculated at checkout.
In stock

Description

Earthquake’s XJ-700DSP LFE mono amplifier is the newest addition to the XJ Series of home and professional audio amplification. Like the XJ-700R, it addresses the need to correctly adjust a room to precision audiophile status, but now with the added benefits of controlling the DSP from your finger tips via a mobile app. You can take full advantage of what this subwoofer amplifier has to offer by making on-the-fly adjustments for the utmost in sound quality and user control with features like auto room correction and up to 60dB/Oct filters.

The XJ-700DSP has a unique built-in Boundary EQ designed to remove exaggerated boomy sounds created by corner loading, large wall surfaces, or installations inside custom cabinetry; other amplifiers try to equalize the room only by adjusting the volume. This amplifier addresses the actual phase correction problem along with the room EQ. The XJ-700DSP can also power multiple tactile transducers like Earthquake’s Q10B, MQB-1, or high response subwoofers like the patented THOR in-wall shallow subwoofer making it an extremely versatile option. Additionally, users may also connect any other passive subwoofer/s to this amplifier.

The XJ-700DSP is ideal for handling heavy-duty subwoofer applications to driving the equipment of everyday home audio enthusiasts and professionals. It was designed to exceed the highest expectations in audio amplification for folks who desire full control and ability to adjust all parameters of operation. With the new XJ-700DSP LFE mono amplifier, a customized room response has never been easier.

  • High power LFE mono block amplifier
  • Powers passive subwoofers or tactile transducers for impactful low-frequency effects
  • Combines ultra-high efficiency with extraordinary bass control
  • Application-controlled DSP (iWoofer™ Pro recommended)
  • Earthquake’s high-efficiency Class J output technology
  • Oversized toroidal transformer for stable supply without voltage drop
  • Dual mono speaker outputs connect up to two subwoofers/transducersWhen connecting both terminals, a 4-ohm load minimum is required for each terminal
  • Music/Movie EQ quick preset mode buttonMusic Mode: FlatMovie Mode +8dB between 30Hz–80Hz
  • Built-in boundary equalizer
  • 0–180° phase adjustment
  • DSP ON/OFF switch
  • ON/AUTO/+12V signal sensing
  • IR input with included remote
  • Cool running fan-free operation with rigid steel chassis
  • Brackets and hardware for 1U rack space included
  • Power Output:1 x 700W RMS @ 4-Ohm1 x 400W RMS @ 8-Ohm
  • Frequency Response: 18Hz–160Hz
  • Crossover Frequency: 40Hz–160Hz
  • Output Connections:5-Way Speaker Binding PostsRCA (DSP OUT)
  • THD: < 0.02% (1W/4-Ohm)
  • S/N:> 112dB (Balanced)> 108dB (Unbalanced)
  • Load Impedance: 4 Ohm or greater
  • Damping Factor: > 500
  • Slew Rate: 50 V/ms
  • Rack Mountable: 1U space
