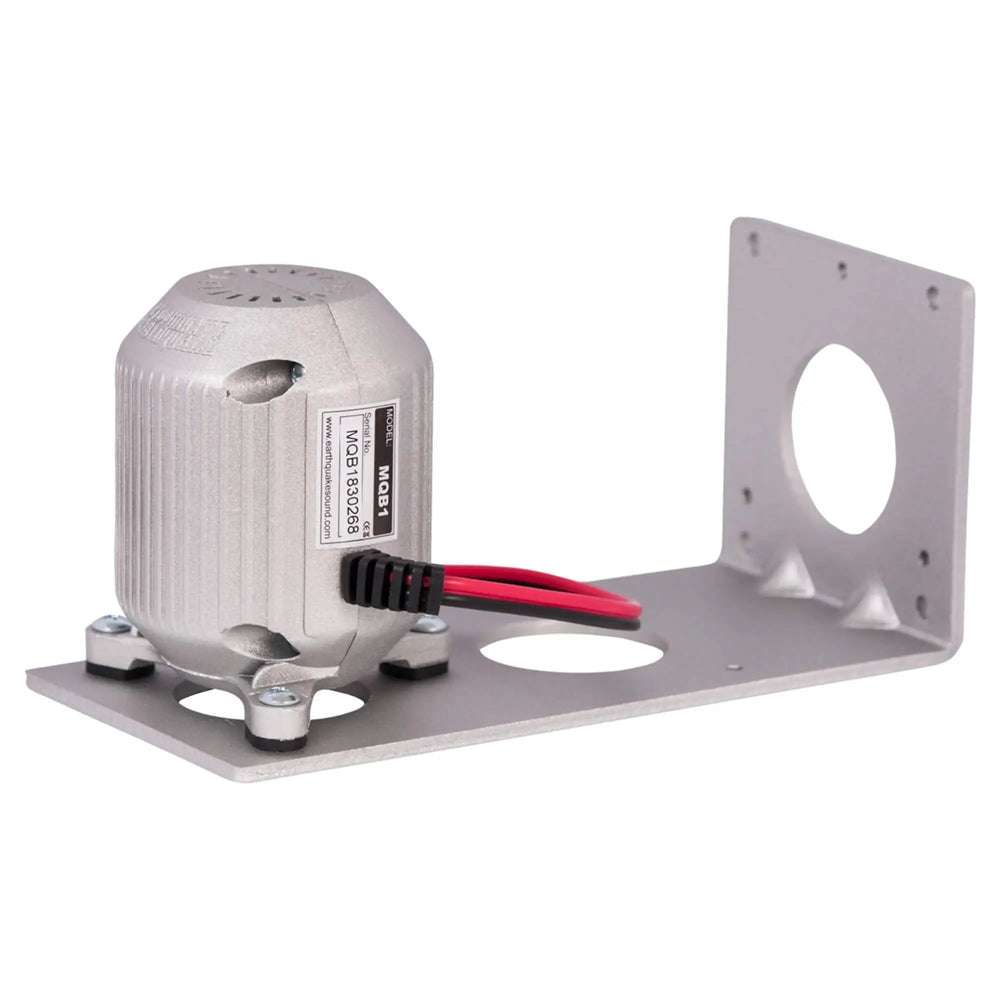

The MQB-1 tactile transducer or bass shaker transmits subsonic bass frequencies and vibrations into an object it’s mounted to. It can supplement or replace traditional subwoofers and is ideal for situations where headphones must be used. Like conventional subwoofers, it receives its signal from the LFE output and can be amplified by an amplifier (XJ-300ST). It is suitable for home theater, music, and gaming applications. Installing it on a gaming chair provides an immersive experience by generating massive amounts of vibration.
Product Features
Tactile performance down to 15Hz
Enhanced low frequency extension for home theater and AR/VR
Inverted premium neodymium magnets with thermal protection circuitry
Nearly indestructible and maintenance-free with only one moving part
No delayed sound effects
Tactile output 100% of the input signal
Flat wire aluminum voice coil
Rugged cast aluminum heat sink
Thermal protection
Enhanced LFE
High Impact Energy
Large Tactile Power
No cycles per life failures
1.5″ excursion @ 22Hz
Universal mounting bracket and hardware included
Protected by multiple patents
Specifications
Power Handling: 20–500 Watts
Frequency Response: 15Hz–50Hz
Impedance: 8 ohms
Movement: 1″ (25mm)
Dimensions H x W x D:
3.4″ x 2.64″ x 3.5″
86.5mm x 67.3mm x 88.9mm
Weight: 3.12 lb (1.41 kg)Weight includes mounting bracket and hardware
